zyxel

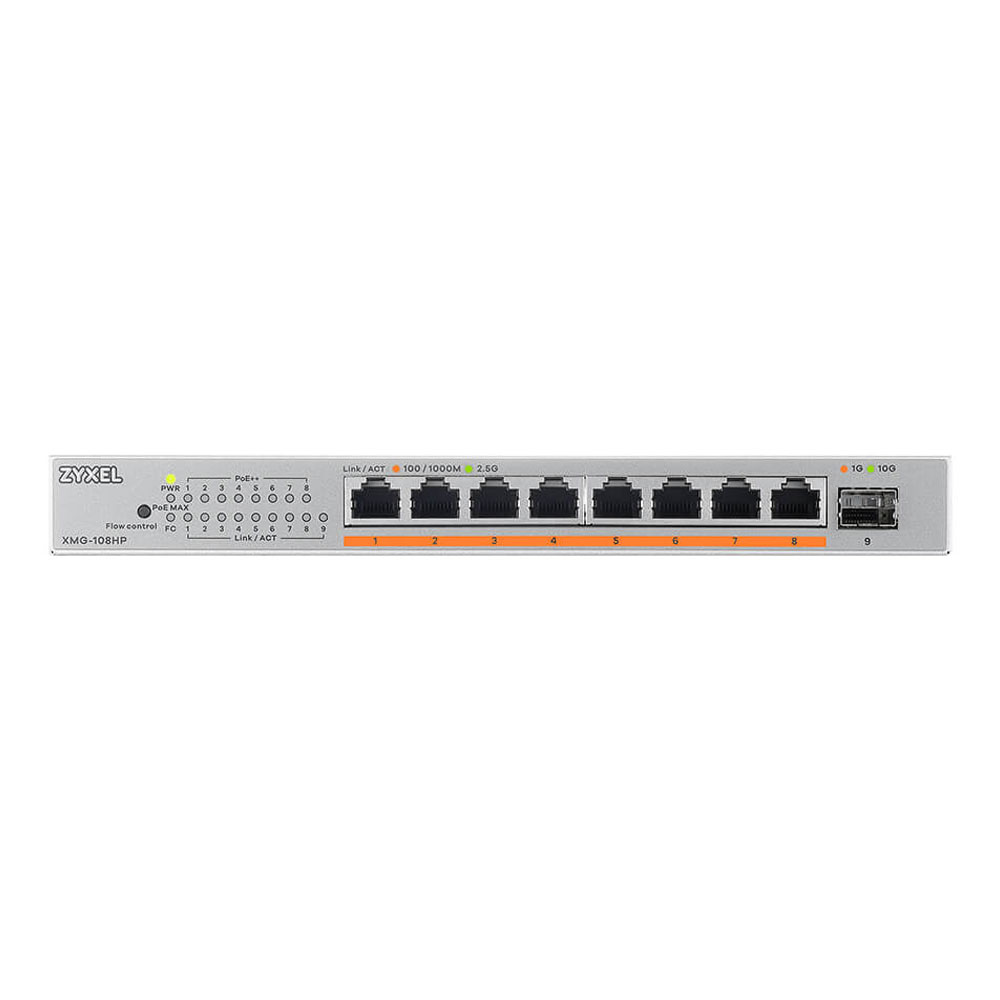

Gigabit Switching Hub ZYXEL (XMG-108HP) 8 Port (10)
Switch / N/A (Wired)
Price
฿10,805
SKU: A0162971
Technical Specifications
Network Specifications
Device TypeSwitch
Wi-Fi StandardN/A (Wired)
Speed10/100 Mbps
Build
Ports• 8x 2.5GBASE-T (PoE++, 60 W), • 1x 10G SFP+
AntennaNone (Internal)
Warranty2Y
Additional Specifications
Certifications• CE, EAC, FCC, BSMI Class B
Dimension(W x D x H) : 24.00 x 10.50 x 2.70 cm
EnvironmentOperating • Temperature: -20°C to 40°C/-4°F to 104°F • Humidity: 10% to 95% (non-condensing) Storage • Temperature: -40°C to 70°C/-40°F to 158°F • Humidity: 5% to 95% (non-condensing)
Fan Quantity• Fanless
Features• 100M, 1G and 2.5G ports for multi speed • Fanless and quiet • Plug and Play, Easy use and Quick Install • Desktop and Wall mount • Auto-MDI/MDIX in all portst • Loop detection
Forwarding Rate• 44.6 Mpps
Gross Weight1.47 KG
Jumbo Frame• 12 K
Led Indicators• PWR • Per-port Link/ACT • PoE MAX (PoE model only) • Per-port PoE (PoE model only)
Mac Address Table• 4K
Material• Metal
Mtbf• 858,634 hr
Net Weight0.66 kg
Network Interface• 8x 2.5GBASE-T (PoE++, 60 W) • 1x 10G SFP+
Package Contents• Switch • Power adapter • Quick start guide • Safety warning and doc.
Package Dimension(W x D x H) : 26.00 x 13.00 x 8.00 cm
Poe• IEEE 802.3bt (PoE++, 60 W) • Total PoE budget 100 watts
Power Consumption• Max. power consumption 120 watts • Min. power consumption 2.74 watts
Power Supply• 100 - 240 V AC, 50/60 Hz
Standards And Protocols• IEEE 802.3u 100BASE-TX Fast • IEEE 802.3z 1000BASE-X • IEEE 802.3ab 1000BASE-T • IEEE 802.3bz 2.5GBASE-T • IEEE 802.3ae 10 Gbit/s Ethernet • IEEE 802.3x full duplex operation and • IEEE 802.1p QoS • IEEE 802.3 Nway auto-negotiation • IEEE 802.3az Energy Efficient • IEEE 802.3bt
Switching Capacity• 60 Gbps
Volume2,704.00 cm3
Warranty:2Y
