zyxel

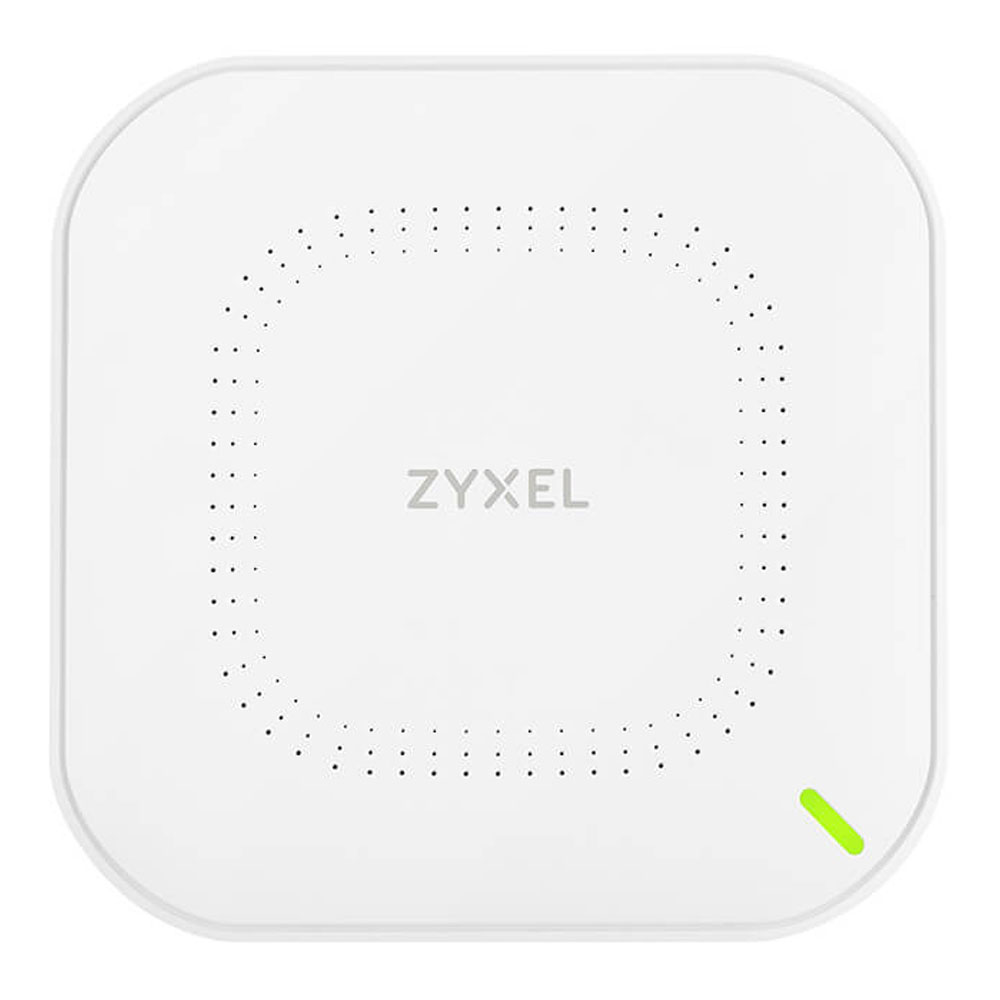

Access Point Zyxel (NWA90AX) Wireless AX1800 Dual Band Gigabit WiFi 6
Access Point / N/A
Price
฿4,481
SKU: A0183386
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardN/A
Speed• 5 GHz: Up to 1200 Mbps / • 2.4 GHz: Up to 575 Mbps
Build
Ports• 1x 10/100/1000M LAN
Antenna• 2.4 GHz : 3 dBi, 2x2:2SS • 5GHz : 4 dBi, 2x2:2SS
Warranty3Y
Additional Specifications
Certifications• Radio : FCC Part 15C, FCC Part 15E; ETSI EN 300 328, EN 301 893; LP0002, EN 60601-1-2 • EMC : FCC Part 15B, EN 301 489-1; EN 301 489-17, EN55022, EN55024,EN61000-3-2/-3, BSMI CNS13438 • Safety : EN 60950-1, IEC 60950-1; BSMI CNS14336-1
Data Rate• 5 GHz: Up to 1200 Mbps • 2.4 GHz: Up to 575 Mbps
Data Rates• 5 GHz: Up to 1200 Mbps • 2.4 GHz: Up to 575 Mbps
Dimension(W x D x H) : 14.00 x 14.00 x 3.75 cm
EnvironmentOperating • Temperature : 0°C to 50°C/32°F to 122°F • Humidity : 10% to 90% (non-condensing) Storage • Temperature : -40°C to 70°C/-40°F to 158°F • Humidity : 10% to 90% (non-condensing)
Frequency Range• 2.4GHz • 5GHz
Interface• 1x 10/100/1000M LAN
Led Indicators• YES
Net Weight0.29 kg
Package Contents• Power adapter • Mount plate • Mounting screws
Poe• PoE (802.3at) (Not Include)
Power Consumption• 16W
Power Supply• AC 100 - 240V - 50/60 Hz 0.3A • Output: DC +12V 1.5A
Standards And Protocol• IEEE 802.11 ax/ac/n/g/b/a
Wireless Security• Encryption WEP/WPA/WPA2/WPA3 • Authentication IEEE 802.1X/RADIUS authentication • Access management L2-isolation/MAC filtering/Rogue AP detection
Wireless Transmit Power• (2.4GHz/5GHz): 23/26 dBm
Warranty:3Y
