zircon

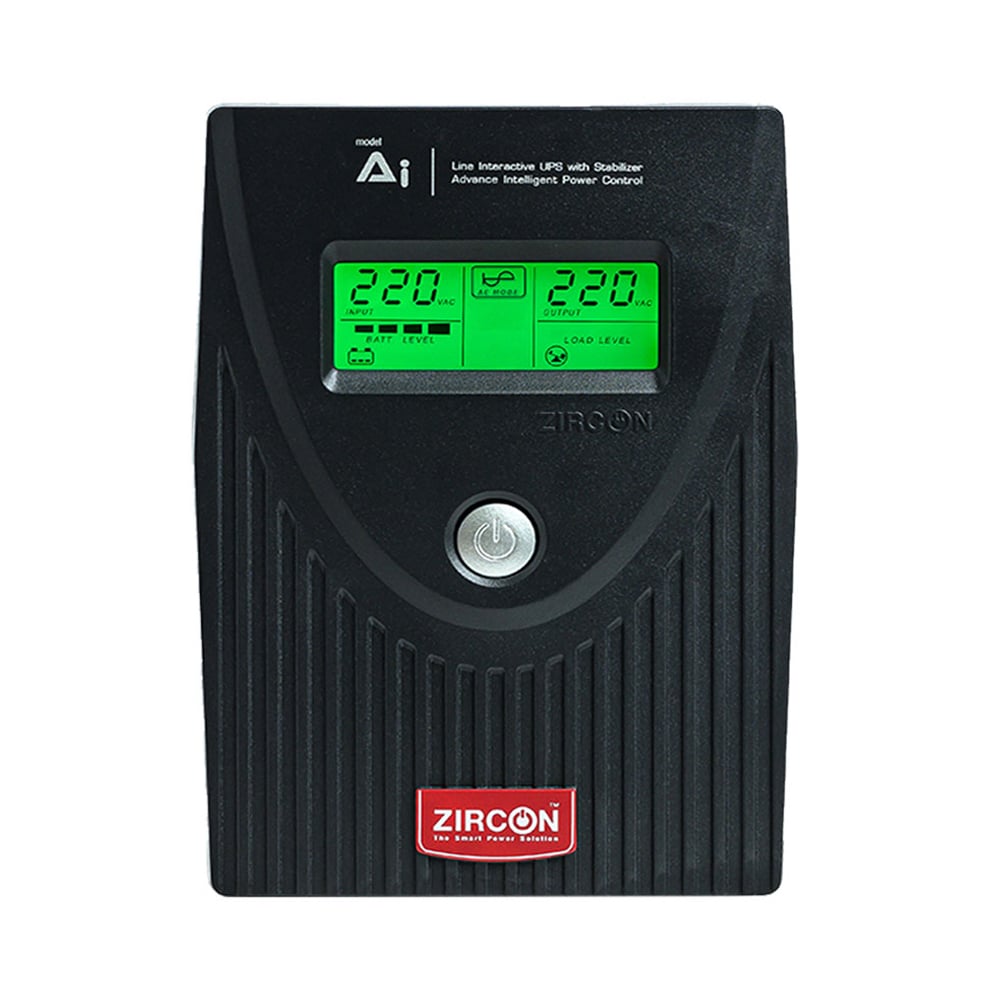

UPS 1000VA ZIRCON AI PLUS
Line interactive with stabilizer / 1000 VA
Price
฿2,213
SKU: A0160254
Technical Specifications
UPS Specifications
TypeLine interactive with stabilizer
Capacity (VA)1000 VA
Capacity (Watt)630 W
Battery Type12V 9Ah x1
Backup TimeBackup Time 15-30 Min. (Depend on loads)
Input & Output
Output Socket4 Port (3 Back up+1 Bypass) 2 Port RJ-11
Backup Ports4
Bypass Ports1
Input Voltage220 VAC +/-25%
Build
Dimension(W x D x H) : 10.10 x 29.80 x 14.20 cm
Warranty2Y
Additional Specifications
DisplayLCD Display • AC Mode • Battery Mode • Input Voltage • Output voltage • Battery Level • Charging Battery • Load Level • Low Battery • Overload • Fault & Battery Replace
Environment• Ambient Temperature :0 to +40 ºC • Audible Noise: < 40db(1 Meter) • Relative Humidity : 90% (Non-Condensing)
Gross Weight5.58 KG
Indicator Audible Alam Protection• Charging Battery • Load Level • Low Battery • Overload • Fault & Battery Replace
Input Frequency50/60Hz. +/-10% (Auto Sensing)
Interface PortUSB
Net Weight4.6 kg
Nominal Input Voltage220 VAC +/-25%
Nominal Output Voltage220 VAC +/-10%(AVR), +/-5%(Battery)
Output Connections4 Port (3 Back up+1 Bypass) 2 Port RJ-11
Package Dimension(W x D x H) : 15.00 x 35.50 x 22.00 cm
Rated Capacity1000VA/630W
Transfer Time2 ms.
TypeLine interactive with stabilizer
Typical Recharge Time4-6 Hours (90% After Fully Discharged)
Volume11,715.00 cm3
Waveform TypeSine Wave In Normal Condition Modified Sine Wave In Backup Condition
Warranty:2Y
