zebra

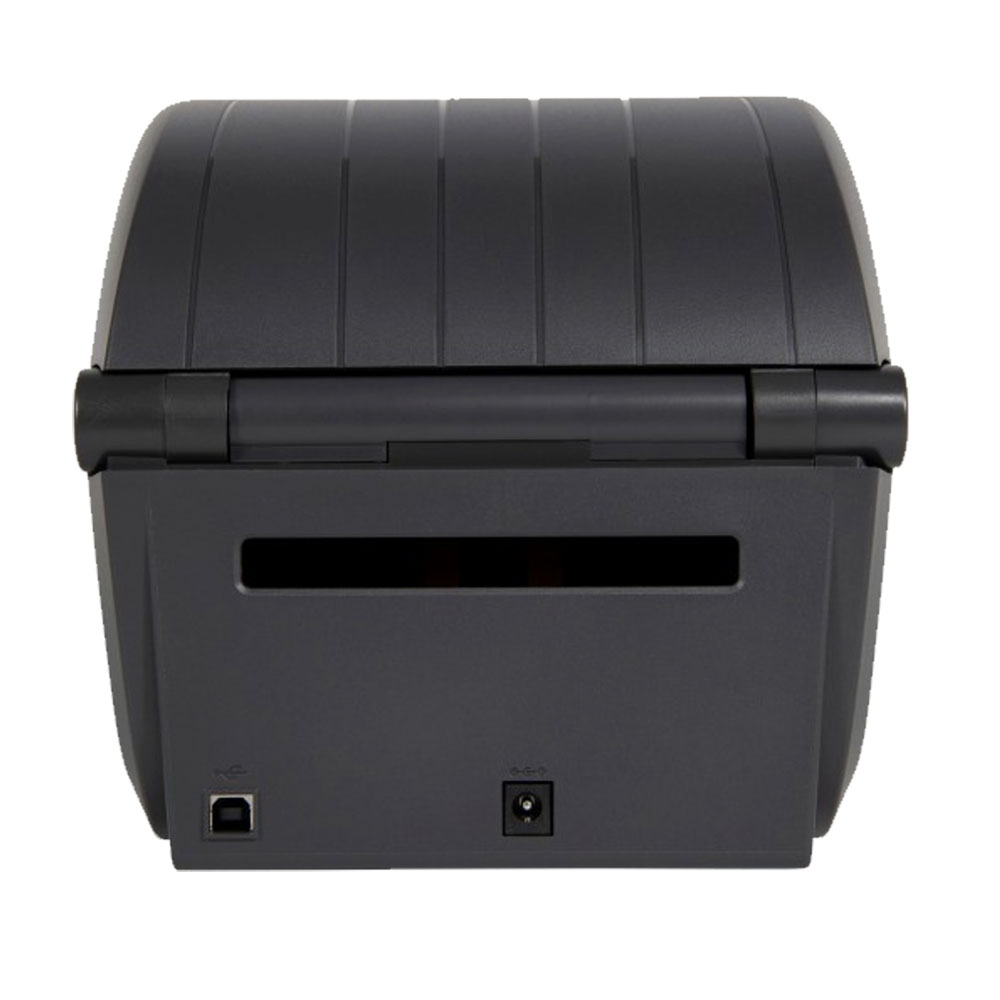

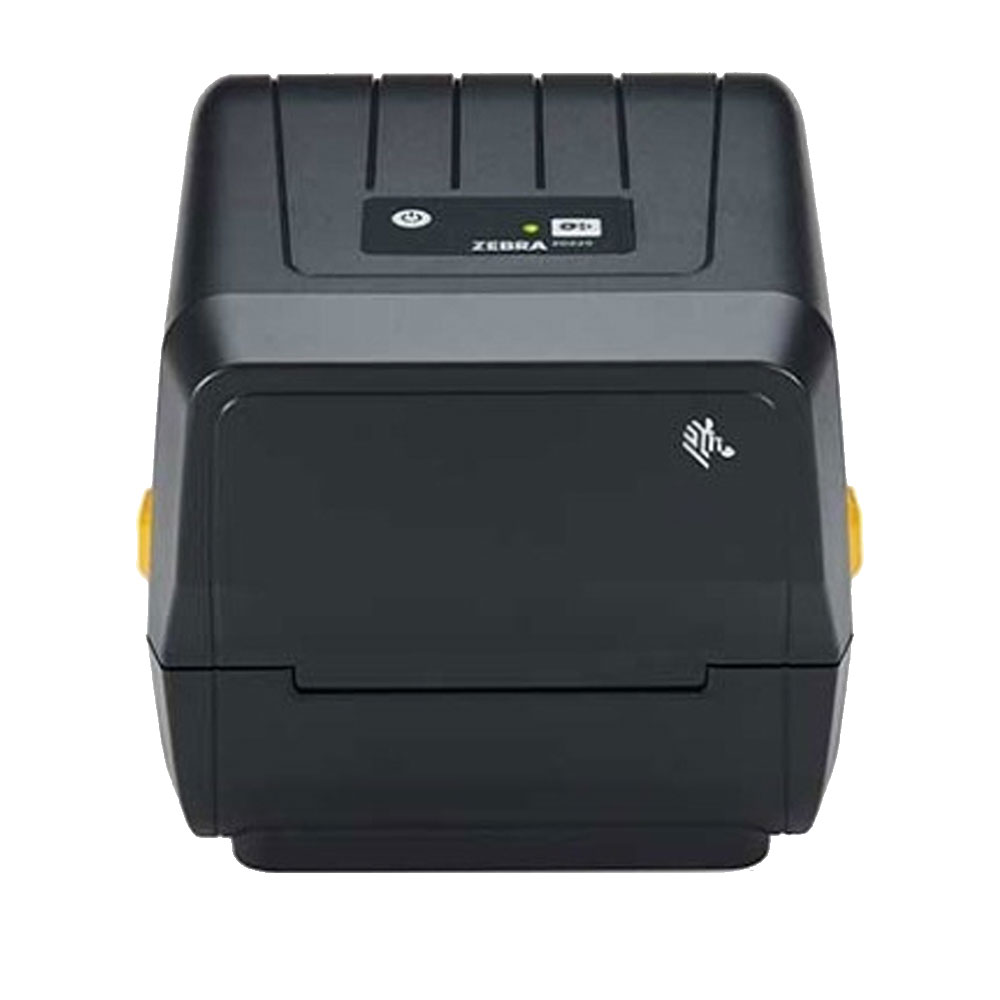

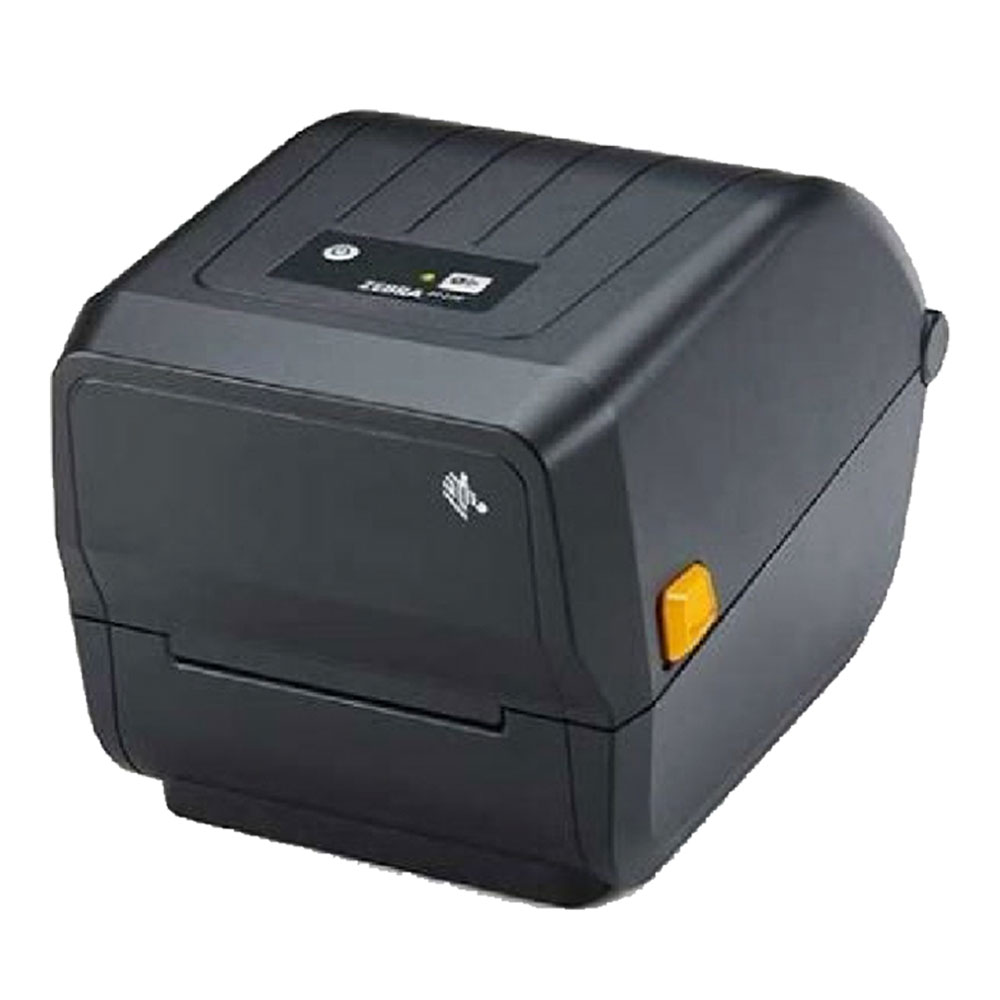

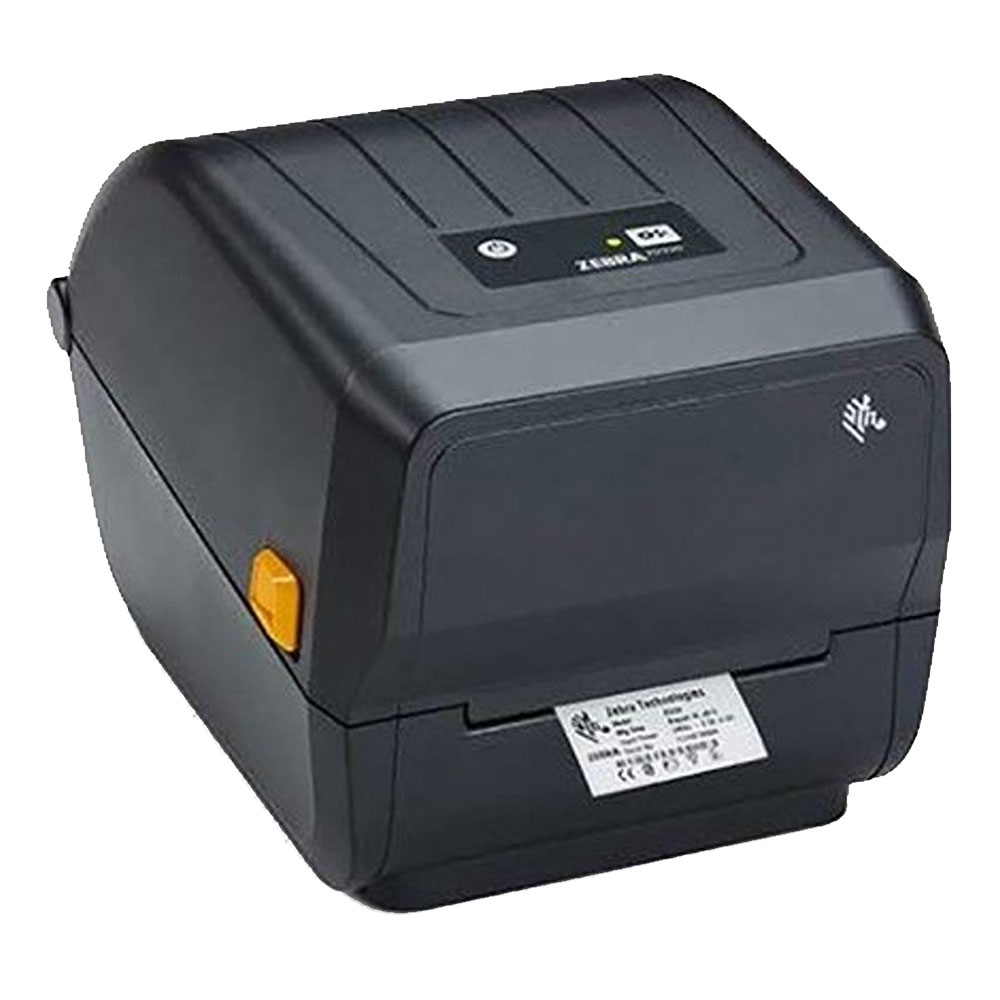

Printer Barcode ZEBRA ZD230
203 dpi / 8 dots per mm / USB
Price
฿6,170
SKU: A0134782
Technical Specifications
Print Speed6 in./152 mm per second
Resolution203 dpi / 8 dots per mm
DuplexNo
ADFNo
Memory256 MB Flash 128 MB SDRAM
Scanner
Connectivity
InterfaceUSB
Consumables
CartridgeN/A (thermal/ribbon-based, not cartridge)
Additional Specifications
BarcodeBar Code Ratios : 2:1 and 3:1 1D Bar Codes : Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code 2D Bar Codes : Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Dimension(W x D x H) : 19.70 x 26.70 x 19.10 cm
EnvironmentOperating Temp. : 40° to 105° F/4.4° to 41° C Storage Temp. : -40° to 140° F/-40° to 60° C Operating Humidity : 10% to 90% non-condensing Storage Humidity : 5% to 95% non-condensing
FontTwo resident scalable ZPL fonts Five resident expandable EPL2 fonts Native open-type font support Unicode compliant for multi-language, on demand thermal printing China units include SimSun simplified Chinese font
Gross Weight3.48 KG
MediaMedia Types : Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands Maximum Label Length : 39.0 in./991 mm Media Width : 1.00 in./25.4 mm to 4.4 in./112 mm Media Roll Size : 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) Thickness : 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
Net Weight1.1 kg
Package ContentsPrinter Power Supply 74M Ribbon Core USB Cable 300M Ribbon Core Non-Zebra Ribbon Adapters *Not Included Ribbons
Package Dimension(W x D x H) : 24.00 x 33.00 x 29.00 cm
Power SupplyElectrical : Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified
Print Methodใช้ความร้อนโดยตรง (Direct Thermal) ใช้ความร้อนผ่านผ้าหมึก (Thermal Transfer)
Print Width4.09 in./104 mm for 203 dpi
RibbonRibbon Outside Diameter : 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) Maximum Ribbon Length : 984 ft. (300 m) Ribbon Width : 1.33 in./33.8 mm ~ 4.3 in./109.2 mm Ribbon Ratio : 1:4 media to ribbon (300 m) 1:1 media to ribbon (74 m) Ribbon Core I.D. : 300 Meter ribbon 1 in./25.4 mm 74 Meter ribbon 0.5 in./12.7 mm **ใช้กับ ริบบอนขนาด 110mmx74M แกน 0.5 นิ้ว และ ริบบอนขนาด 110mmx300M แกน 1 นิ้ว
SensorMovable black mark sensor, limited range from center to left side Fixed off-center gap sensor
Short SpecDirect Thermal & Thermal Transfer / Speed 6 นิ้วต่อวินาที / 203dpi / Ribbon 110x300 / กระดาษ 1-4.4 นิ้ว
Volume22,968.00 cm3
Warranty:1 Year
