vertiv

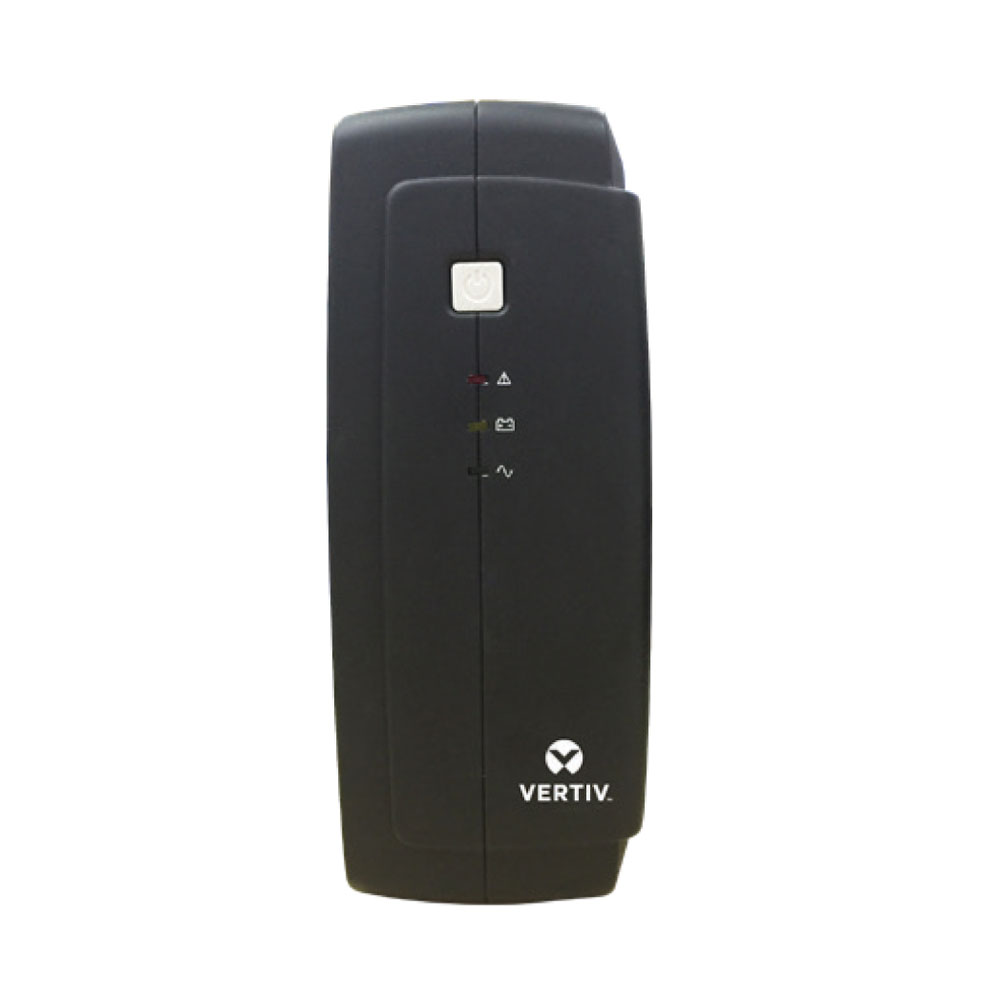

UPS 850VA VERTIV PSA850-SOHO สเปค ICT ปี 2566 งบ 2,500 บาท
12V/9Ah / 850 VA
Price
฿2,256
SKU: A0146709
Technical Specifications
UPS Specifications
Type12V/9Ah
Capacity (VA)850 VA
Capacity (Watt)510 W
Battery Type12V/9Ah
Backup TimeLoad 25% : 13 min. Load 50% : 3 min.
Input & Output
Output SocketBack up 2 Ports 1 bypass
Backup Ports2
Input VoltageVoltage range : 162-290VAC, single-phase
Build
Dimension(W x D x H) : 8.50 x 27.20 x 20.10 cm
Warranty3*0*3
Additional Specifications
Battery Replacement1 x 12V/9Ah
Cord LengthInput NEMA/C13 x1
EnvironmentOperating Temperature, F (C) 32 to 104 (0 to 40) Storage Temperature, F (C) -4 to 122 (-20 to 50) Operating /Storage Relative Humidity 0 -90%, non-condensing
Featuresเหมาะสำหรับ Desktop PCs, Professional workstations, Small routers, bridges, and hubs, Point-of-sale terminals, Small office applications
Gross Weight5.50 KG
Indicator Audible Alam ProtectionIndicator AC mode : Solid green led lighting Battery Mode : Solid yellow led flash Fault Solid : Red led lighting Audible Alarm Backup mode : Sounding every 10 seconds Low battery : Sounding every 1 second Overload : Sounding every 0.5 second Fault : Continuously sounding
Input ConnectionsUniversal plug
Input Frequency50Hz/60Hz automatic identification
Net Weight4.9 kg
Nominal Input VoltageVoltage range : 162-290VAC, single-phase
Nominal Output Voltage230VAC ±10% Voltage tolerance : Simulated sine wave at nominal voltage ±10% Frequency range : 50Hz/60Hz automatic identification Transfer time : Typical 2-6 ms, 10ms max.
Output ConnectionsBack up 2 Ports 1 bypass
Package Dimension(W x D x H) : 12.10 x 31.00 x 26.80 cm
Rated Capacity850VA/510Watts
Transfer TimeTypical 2-6 ms, 10ms max.
Type12V/9Ah
Typical Recharge Time6-8 hours recover to 90% capacity (About 1A charging current at Normal Mode)
Volume10,052.68 cm3
Waveform TypeSimulated sine wave
Warranty:3*0*3
