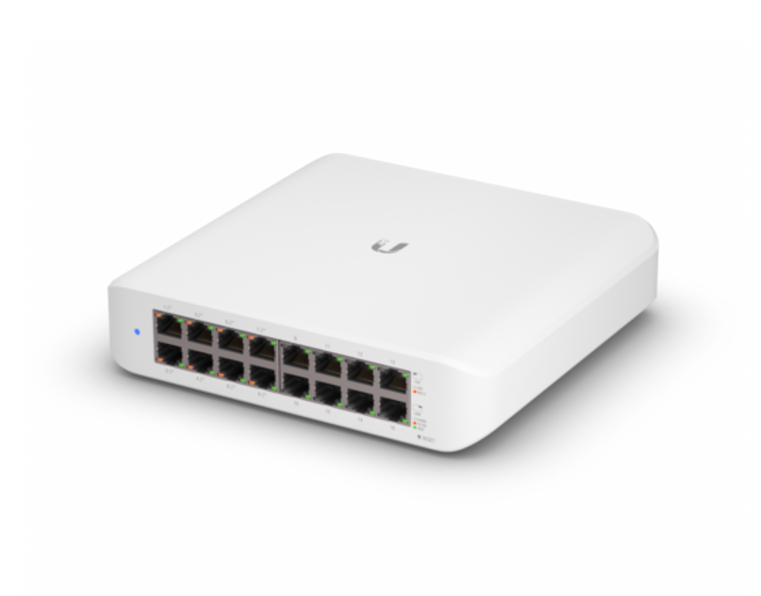

Gigabit Switching Hub 16 Port Ubiquiti Unifi USW-Lite-16-PoE (8,8 PoE+)
Switch
Price
฿10,805
SKU: A0183958
Technical Specifications
Network Specifications
Device TypeSwitch
Build
Ports16
Warranty3Y
Additional Specifications
Buffer Architecture• 0.5 MB
Certifications• CE, FCC, IC, Anatel: 04479-21-08356
Dimension(W x D x H) : 19.20 x 18.50 x 4.40 cm
Environment• -15 to 40° C (5 to 104° F) • 10 to 90% noncondensing
Features• LACP Port Aggregation • STP & RSTP • Advanced IGMP Configuration (Querier, Fast Leave, Router Port) • IGMP Snooping • 802.1X Control • MAC-Based ACLs & Device Isolation • DHCP Snooping & Guarding • Egress Rate Limit • Flow Control • Storm Control • Multicast & Broadcast Rate Limiting • MAC Address Blocking • IP-Based ACLs & Network Isolation • MAC-Based Port Restriction • Port Isolation • Port Mirroring • Jumbo Frames • LLDP-MED • Voice VLAN • Loop Protection • Virtual Network Override
Forwarding Rate• 24 Mpps
Led Indicators• YES
Mac Address Table• 8,000
Management• Ethernet
Material• Polycarbonate
Net Weight1.2 kg
Network Interface• 16× 10/100/1000 Mbps (8 PoE+ Power Budget 45 W)
Poe• PoE+ Ports : 8 • Max. PoE+ Wattage per Port by PSE : 32W
Power Consumption• 15W (Excluding PoE Output) • 60W (Including PoE Output)
Power Supply• 100–240V AC
Standards And Protocols• IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at
Switching Capacity• 32Gbps
Vlan• Supported VLANs : 1,000
Warranty:3Y
