ubiquiti

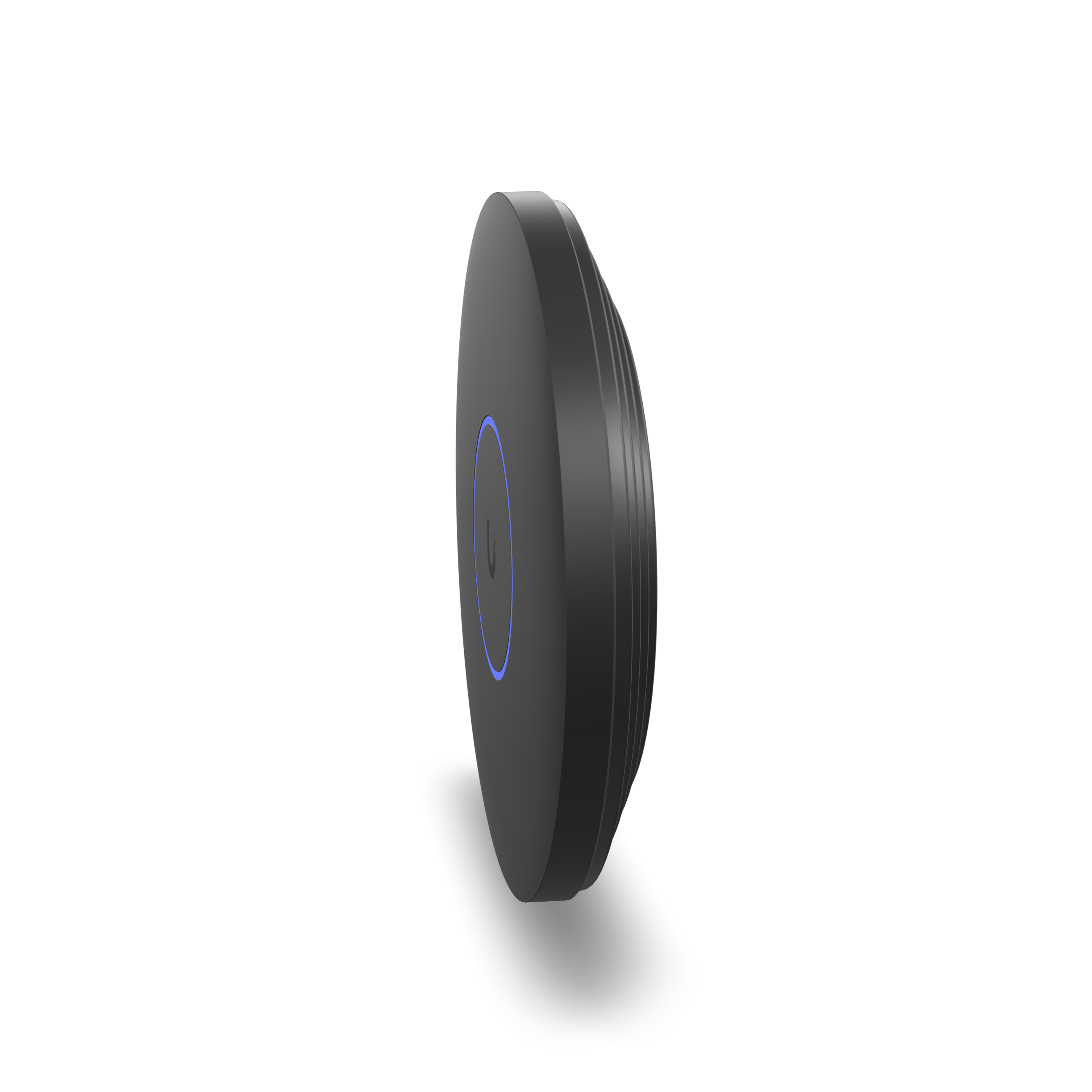

Access Point UBIQUITI UniFi (U7-PRO-XG) Wireless BE10800 Tri Band WiFi 7
Access Point / Wi-Fi 7 (802.11be/ax/ac/n/a/b/g)
Price
฿10,805
SKU: A0176645
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardWi-Fi 7 (802.11be/ax/ac/n/a/b/g)
Speed• 6 GHz: Up to 5800 Mbps / • 5 GHz: Up to 4300 Mbps / • 2.4 GHz: Up t…
Build
Ports• 1x 10GbE RJ45 port
Antenna• 6 GHz : 6 dBi • 5 GHz : 5 dBi • 2.4 GHz : 4 dBi
Warranty3Y
Additional Specifications
Antennas• 6 GHz : 6 dBi • 5 GHz : 5 dBi • 2.4 GHz : 4 dBi
Certification• CE, FCC, IC
Data Rate• 6 GHz: Up to 5800 Mbps • 5 GHz: Up to 4300 Mbps • 2.4 GHz: Up to 688 Mbps
Dimension(W x D x H) : 20.60 x 20.60 x 3.25 cm
Environment• Ambient Operating Temperature : -30 to 40° C (-22 to 104° F) • Ambient Operating Humidity : 5 to 95% noncondensing
Features• Wireless Meshing • Band Steering • 802.11v BSS Transition Management • 802.11r Fast Roaming • 802.11k Radio Resource Management (RRM) • Advanced Radio Management • Real-Time Spectral Analysis • Passpoint (Hotspot 2.0) • Captive Hotspot Portal - Custom Branding Landing Page - Voucher Authentication - Payment-Based Authentication - External Portal Server Support - Password Authentication - Guest Network Isolation • Private Pre-Shared Key (PPSK) • WiFi Speed Limiting • Client Device Isolation • WiFi Schedules • RADIUS over TLS (RadSec) • Dynamic RADIUS-assigned VLAN
Frequency• 6 GHz • 5 GHz • 2.4 GHz
Gross Weight1.29 KG
Interface• 1x 10GbE RJ45 port
Leds• White/Blue
Management• UniFi Network
Net Weight0.8 kg
Operation Mode• AccessPoint
Package Dimension(W x D x H) : 25.00 x 25.00 x 8.00 cm
Power Consumption• 22W
Power Supply• 42.5 - 57V DC
Power Supply Poe• 42.25-57V DC (PoE+) (Not Included)
Range• Coverage Area : 140 m² (1,500 ft²)
Standards802.11a/b/g/n/ac/ax/be
Volume5,000.00 cm3
Wireless Functions• ย่านความถี่ Tri-Band (2.4 GHz, 5 GHz, และ 6 GHz) • Spatial Streams 6 Spatial Streams (2x2 สำหรับแต่ละย่านความถี่) • ความเร็วรวมสูงสุด ≈10.8 Gbps (Max Aggregate Data Rate) • เทคโนโลยี MIMO รองรับ DL/UL MU-MIMO (Multi-User Multiple-Input Multiple-Output) ในทั้ง 3 ย่าน • ความจุอุปกรณ์ รองรับอุปกรณ์เชื่อมต่อพร้อมกัน 300+ เครื่อง
Warranty:3Y
