ubiquiti

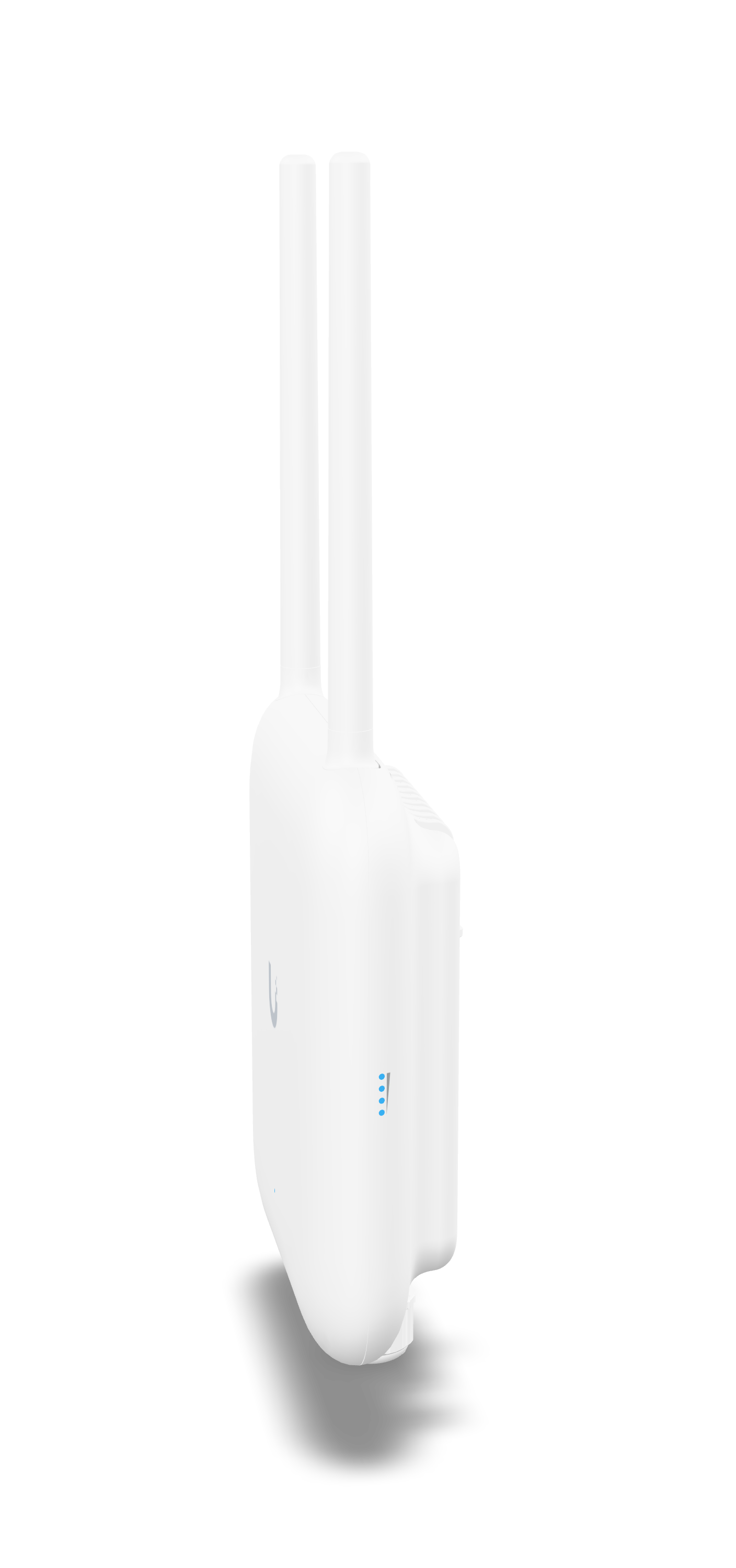

Access Point UBIQUITI UniFi (U7-PRO-Outdoor) Wireless BE10800 Tri Band WiFi 7
Access Point / Wi-Fi 7 (802.11be/ax/ac/n/a/b/g)
Price
฿15,347
SKU: A0176642
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardWi-Fi 7 (802.11be/ax/ac/n/a/b/g)
Speed• 6 GHz: Up to 5800 Mbps / • 5 GHz: Up to 4800 Mbps / • 2.4 GHz: Up t…
Build
Ports• 1x 2.5 GbE RJ45 port
Antenna• 6 GHz: Directional internal: 10 dBi, 90° x 45° • 5 GHz: D…
Warranty1Y
Additional Specifications
Antennas• 6 GHz: Directional internal: 10 dBi, 90° x 45° • 5 GHz: Directional internal: 11 dBi, 90° x 45° , External omni: 8 dBi, 360° x 15° • 2.4 GHz: Directional internal: 8 dBi, 90° x 90° , External omni: 6 dBi, 360° x 15°
Certification• FCC, IC
Data Rate• 6 GHz: Up to 5800 Mbps • 5 GHz: Up to 4800 Mbps • 2.4 GHz: Up to 688 Mbps
Dimension(W x D x H) : 17.00 x 20.80 x 12.18 cm
Environment• Ambient Operating Temperature : -30 to 60° C (-22 to 140° F) • Ambient Operating Humidity: 5 to 95% noncondensing
Features• Wireless Meshing • Band Steering • 802.11v BSS Transition Management • 802.11r Fast Roaming • 802.11k Radio Resource Management (RRM) • Advanced Radio Management • Passpoint (Hotspot 2.0) • Captive Hotspot Portal - Custom Branding Landing Page - Voucher Authentication - Payment-Based Authentication - External Portal Server Support - Password Authentication • Guest Network Isolation • Private Pre-Shared Key (PPSK) • WiFi Speed Limiting • Client Device Isolation • WiFi Schedules • RADIUS over TLS (RadSec) • Dynamic RADIUS-assigned VLAN
Frequency• 6 GHz • 5 GHz • 2.4 GHz
Gross Weight2.01 KG
Interface• 1x 2.5 GbE RJ45 port
Leds• (1) Power : White/Blue • (4) Mesh signal : Blue
Management• UniFi Network
Net Weight1.2 kg
Operation Mode• AccessPoint
Os Compatibility• iOS™ version 10.20.2 and later • Android™ version 10.21.7 and later
Package Dimension(W x D x H) : 26.00 x 29.00 x 10.00 cm
Power Consumption• 21W
Power Supply• 42.5 - 57V DC
Power Supply Poe• 42.5 - 57V DC (PoE+) (Not Included)
Range• Coverage Area : 465 m² (5,000 ft²)
Standards• 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Volume7,540.00 cm3
Wireless Functions• Tri-Band (2.4/5/6 GHz) : รองรับการส่งสัญญาณใน 3 ย่านความถี่พร้อมกัน เพื่อเพิ่มความจุและลดความแออัดของเครือข่าย
Warranty:1Y
