ubiquiti

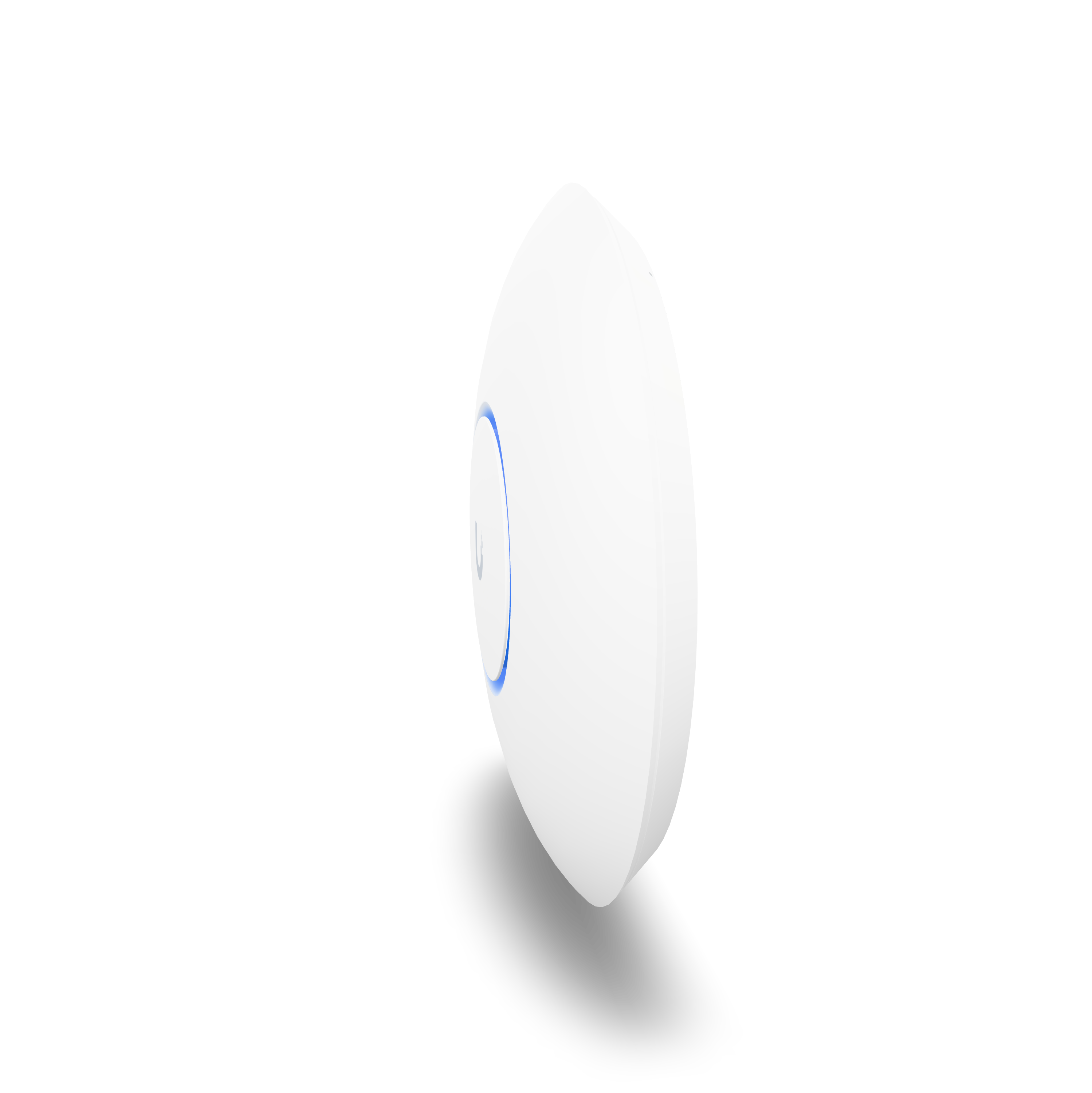

Access Point UBIQUITI UniFi (U7-Lite) Wireless BE5000 Dual Band WiFi 7
Access Point / Wi-Fi 7 (802.11be/ax/ac/n/a/b/g)
Price
฿4,996
SKU: A0176649
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardWi-Fi 7 (802.11be/ax/ac/n/a/b/g)
Speed• 5 GHz: Up to 4300 Mbps / • 2.4 GHz: Up to 688 Mbps
Build
Ports• 1x 2.5 GbE RJ45 port
Antenna• 5 GHz : 5 dBi • 2.4 GHz : 4 dBi
Warranty3Y
Additional Specifications
Antennas• 5 GHz : 5 dBi • 2.4 GHz : 4 dBi
Certification• CE, FCC, IC, Anatel, SRRC
Data Rate• 5 GHz: Up to 4300 Mbps • 2.4 GHz: Up to 688 Mbps
Dimension(W x D x H) : 17.15 x 17.15 x 3.30 cm
Environment• Ambient Operating Temperature : -30 to 40° C (-22 to 104° F) • Ambient Operating Humidity : 5 to 95% noncondensing
Features• Wireless Meshing • Band Steering • 802.11v BSS Transition Management • 802.11r Fast Roaming • 802.11k Radio Resource Management (RRM) • Advanced Radio Management • Passpoint (Hotspot 2.0) • Captive Hotspot Portal - Custom Branding Landing Page - Voucher Authentication - Payment-Based Authentication - External Portal Server Support - Password Authentication - Guest Network Isolation • Private Pre-Shared Key (PPSK) • WiFi Speed Limiting • Client Device Isolation • WiFi Schedules • RADIUS over TLS (RadSec) • Dynamic RADIUS-assigned VLAN
Frequency• 5 GHz • 2.4 GHz
Gross Weight0.58 KG
Interface• 1x 2.5 GbE RJ45 port
Leds• White/Blue
Management• UniFi Network
Net Weight0.31 kg
Operation Mode• AccessPoint
Os Compatibility• iOS™ version 10.20.2 and later • Android™ version 10.21.7 and later
Package Dimension(W x D x H) : 19.00 x 19.00 x 5.00 cm
Power Consumption• 13W
Power Supply• 42.5 - 57V DC
Power Supply Poe• 42.5 - 57V DC (PoE) (Not Included)
Range• Coverage Area : 115 m² (1,250 ft²)
Standards• 802.11a/b/g/n/ac/ax/be
Volume1.00 cm3
Warranty:3Y
