tsc

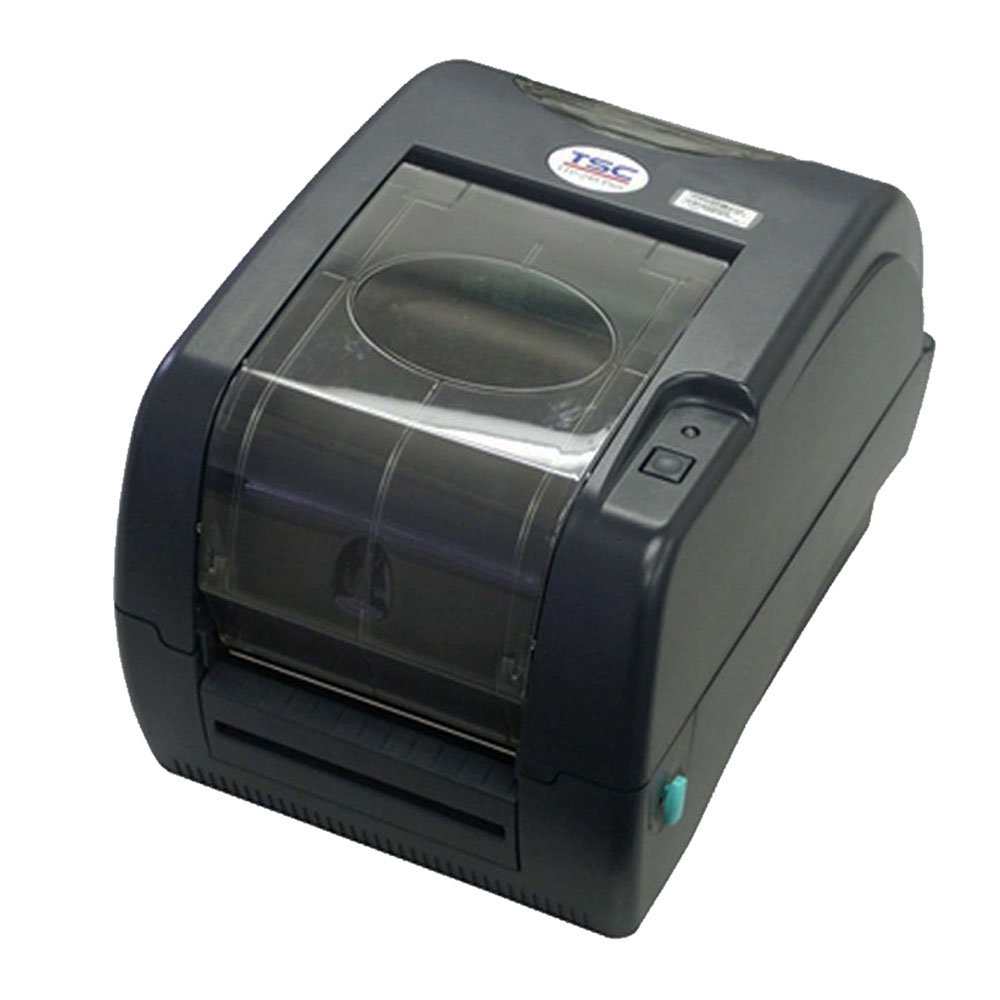

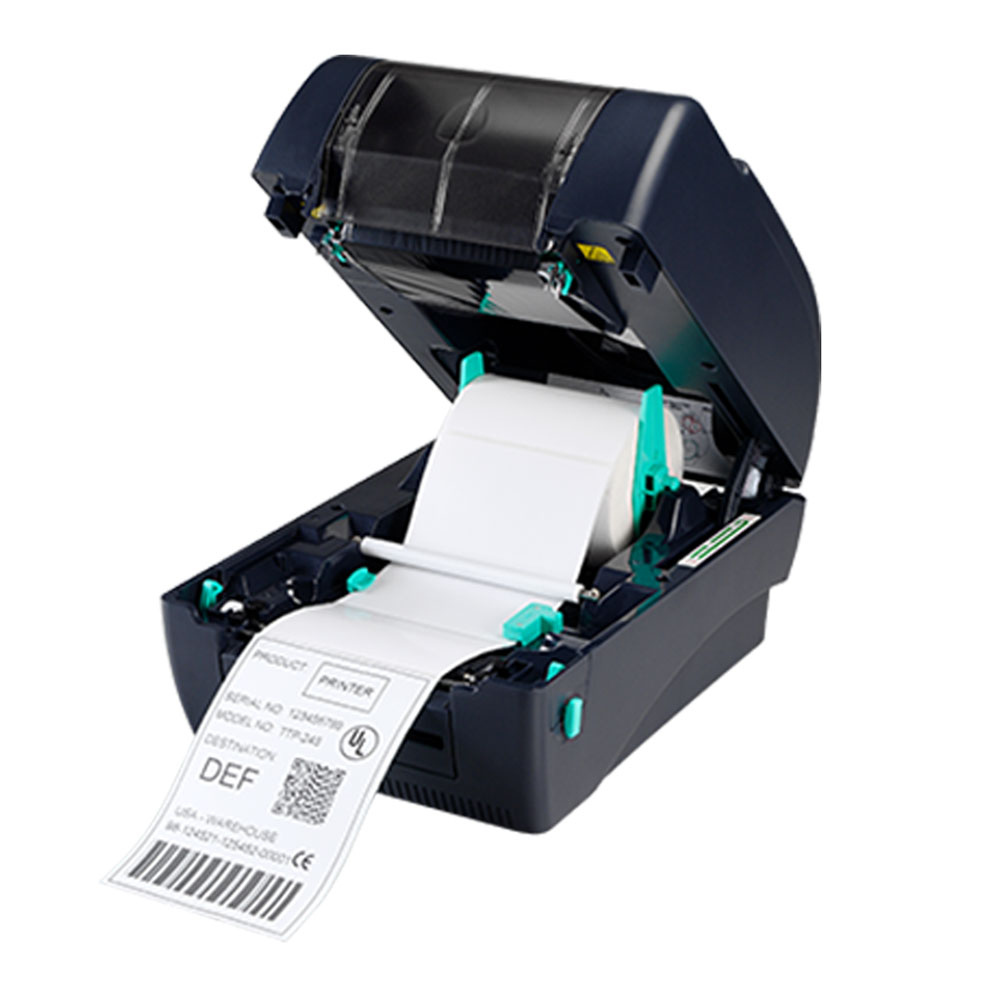

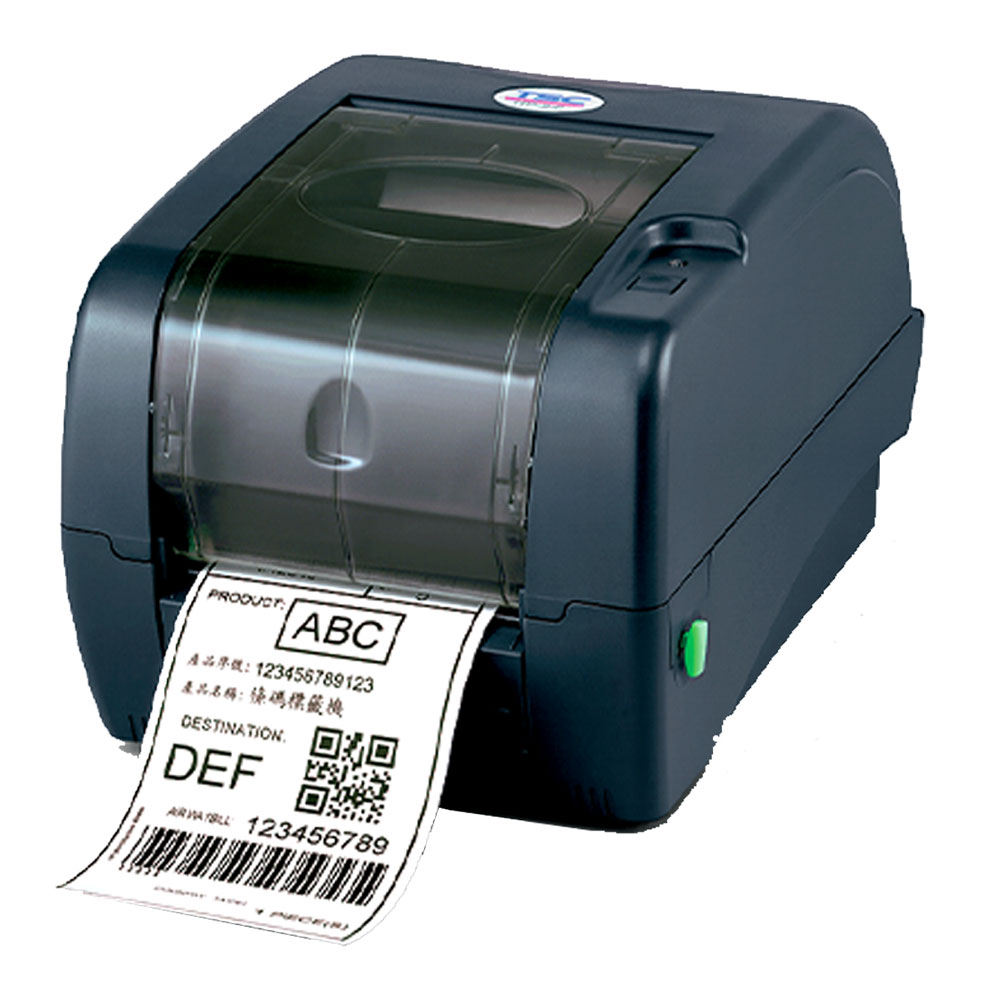

Printer Barcode TSC TTP-247 By Order
ความละเอียด 203 dpi / 1 x USB 1 x Parallel 1 x RS232
Price
฿9,785
SKU: A0065702
Technical Specifications
Print Speed7 inches / second
Resolutionความละเอียด 203 dpi
DuplexNo
ADFNo
Scanner
Connectivity

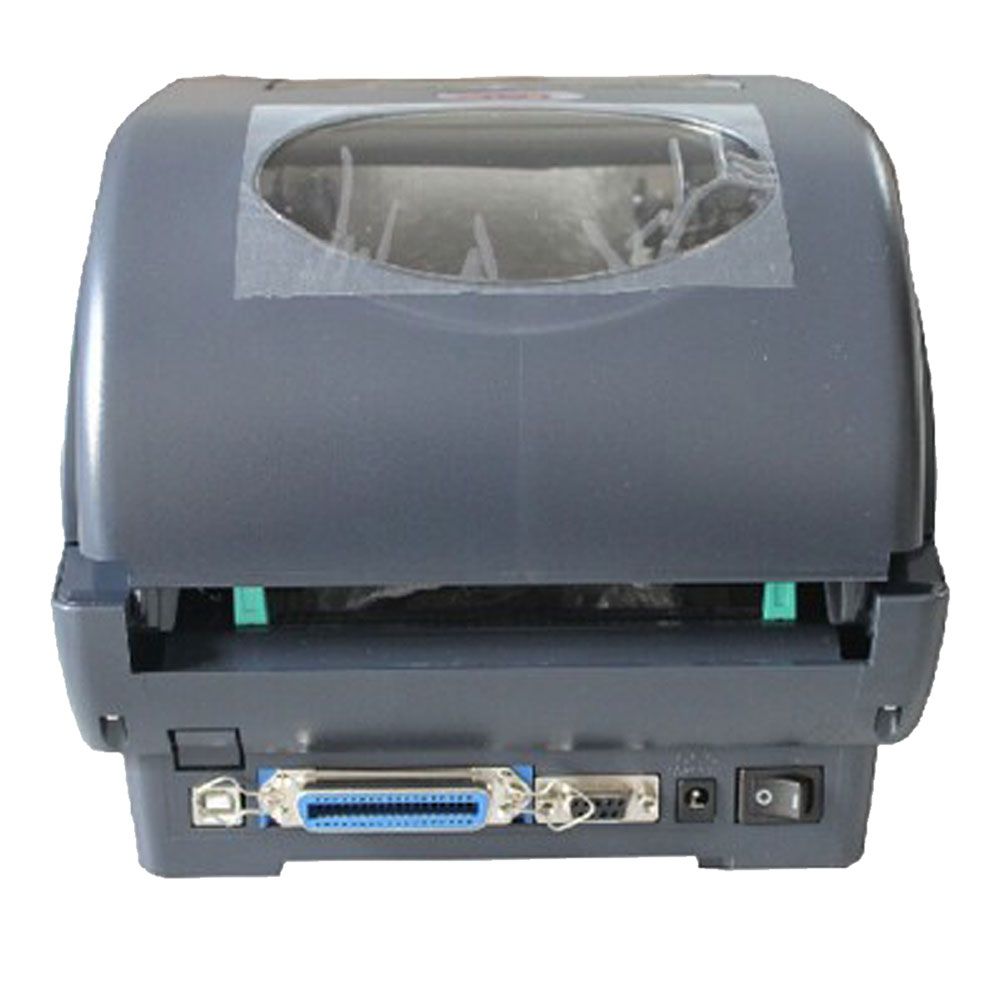

Interface1 x USB 1 x Parallel 1 x RS232
Consumables
Cartridgeใช้ Ribbon Barcode 110x300 (Black) Ribbon 300 m long, max. OD 67 mm, 1" core (ink coated outside) Ribbon width 40 mm ~ 110 mm (1.6" ~ 4.3")
Additional Specifications
EnvironmentOperation : 5 ~ 40°C, 25 ~ 85% non-condensing Storage : -40 ~ 60°C, 10~ 90% non-condensing
Gross Weight4.02 KG
Media Size CustomMax print width : 4.25 inches Max print length : 90 inches Media thickness : 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) Media core diameter : 25.4 ~ 76.2 mm (1" ~ 3")
Media TypesContinuous, die-cut, black mark, fan-fold, notched (outside wound)
Memory Size4 MB Flash memory 8 MB SDRAM SD card reader for Flash memory expansion, up to 4 GB
Package ContentsWindows labeling software CD disk Quick start guide USB cable Power cord External universal switching power supply Label spindle, fixing tab x 2, 1.5 core adapter x 2 Ribbon spindle x 2 Ribbon paper core **ไม่มี Ribbon ให้ในกล่อง
Package Dimension(W x D x H) : 27.00 x 44.50 x 24.00 cm
Paper Size PrintingMedia width 20 ~ 112 mm (0.78" ~ 4.4") Label roll capacity : Max. OD 127 mm. ใช้สติ๊กเกอร์ 3.2x2.5
Power SupplyExternal universal switching power supply Input : AC 100-240V, 2.5A, 50-60Hz Output : DC 24V, 3.75A, 90W
Printer TypeThermal Transfer & Direct Thermal
Printing Resolutionความละเอียด 203 dpi
Processor32-bit RISC CPU
Short SpecDirect Thermal & Thermal Transfer / Speed 7 นิ้วต่อวินาที / 203dpi / Ribbon 110x300 / กระดาษ 1-4.4 นิ้ว
Volume28,836.00 cm3
Warranty:1 Year
