tsc

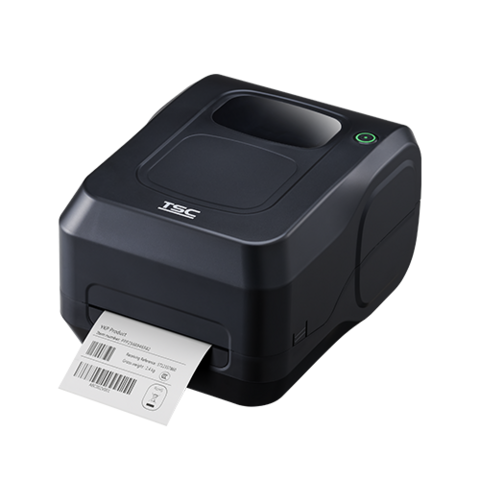

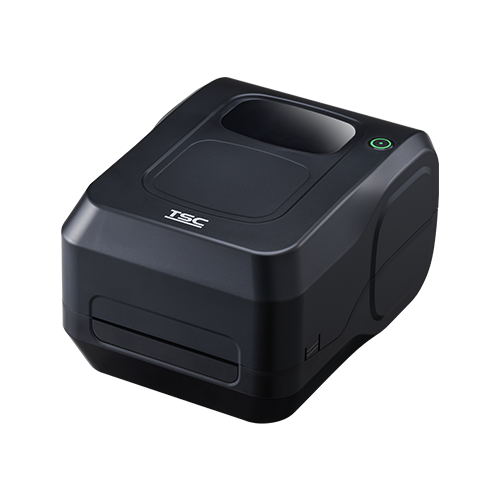

Printer Barcode TSC TL240
203 dpi (8 dots/mm) / USB
Price
฿4,996
SKU: A0181142
Technical Specifications
Print SpeedUp to 6 ips (152mm/s)
Resolution203 dpi (8 dots/mm)
DuplexNo
ADFNo
Memory64 MB DRAM, Flash 16 MB
Scanner
Connectivity
InterfaceUSB
Consumables
CartridgeN/A (thermal/ribbon-based, not cartridge)
Additional Specifications
Barcode1D barcode Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D barcode TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode)
Dimension(W x D x H) : 21.10 x 27.90 x 16.40 cm
Display PanelLED with buttons • 1 power switch • 1 operation button (pause/feed) • 1 LED (3 colors: green, amber & red)
EnvironmentOperation : 0 to 40°C (32 to 104°F), 10 - 85% non-condensing Storage : -20 to 60°C (-4 to 140°F), 5 - 90% non-condensing
Font8 alpha-numeric bitmap fonts Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Gross Weight4.00 KG
MediaInternal Label Capacity : 5" (127mm) OD Max. Media Width : 0.8" - 4.6" (19 - 118mm) Media Thickness : 0.06mm - 0.19mm (2.36mil - 7.48mil) Label Length : 5mm - 25,400mm (0.2" - 1,000") Media Type : Continuous, die-cut, black mark, fan-fold (outside wound) Media Core Diameter : 1.0" (25.4mm)
Net Weight2 kg
Package ContentsQuick start guide USB cable Power cord External universal switching power supply Label spindle x 1, fixing tab x 2 1" ribbon spindle x 2 0.5" ribbon spindle x 2
Package Dimension(W x D x H) : 25.00 x 35.00 x 24.00 cm
Power SupplyExternal universal switching power supply Input : AC 100 - 240V, 2.0A, 50 - 60Hz Output : DC 24V, 2.0A, 48W
Print Length1,000" (25,400mm) (Max)
Print MethodDirect thermal & Thermal transfer
Print Width4.25" (108mm) (Max)
Processor32-bit RISC CPU

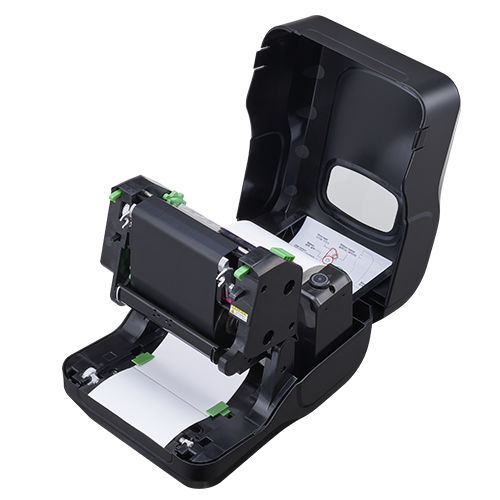

Ribbon300m long, max. O.D. 67mm, 1" core (ink coated outside) 110m long, max. O.D. 40mm, 0.5" core (ink coated outside) Ribbon Width : 1.6" - 4.3" (40 - 110mm)
SensorTransmissive gap sensor Black mark reflective sensor Ribbon end sensor Head open sensor
Short SpecDirect Thermal & Thermal Transfer / Speed 6 นิ้วต่อวินาที / 203dpi / Ribbon 110x300 / กระดาษ 0.8-4.6 นิ้ว
System SupportWindows Linux MAC
Volume21,000.00 cm3
Warranty:2 Years
