tsc

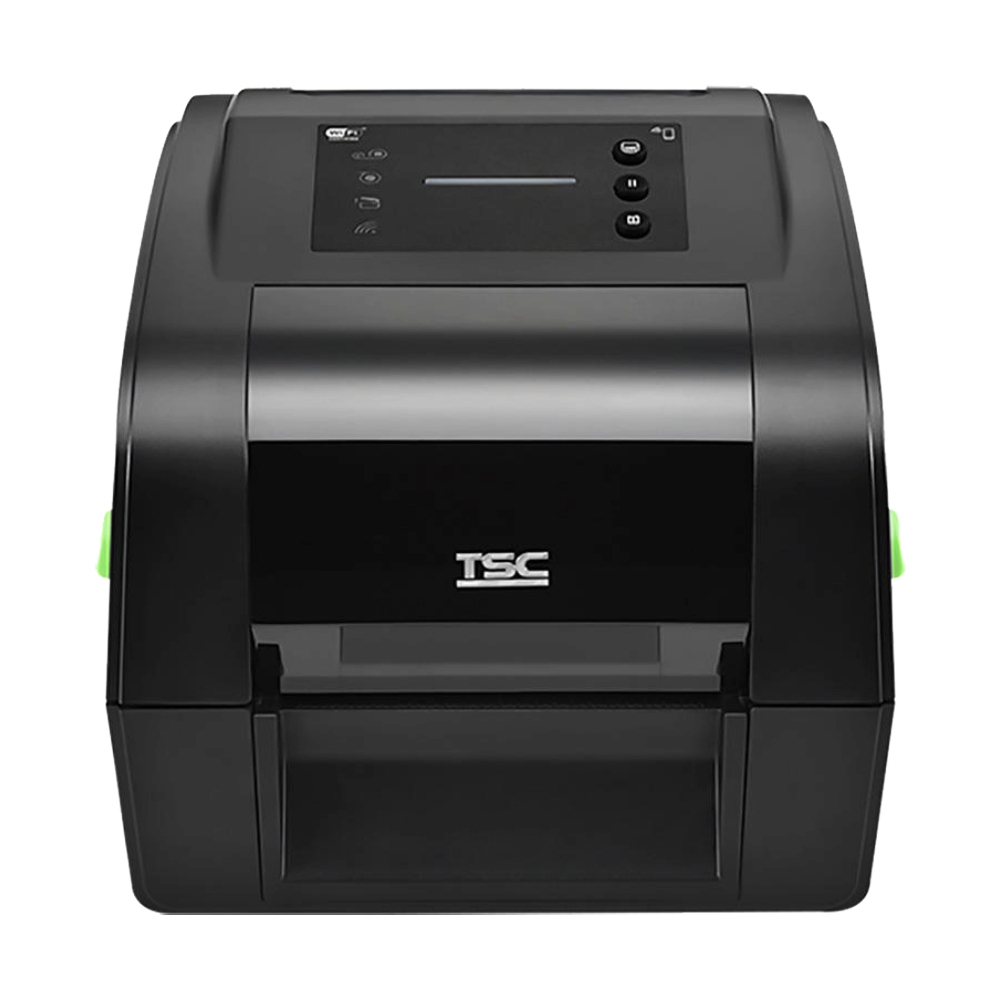

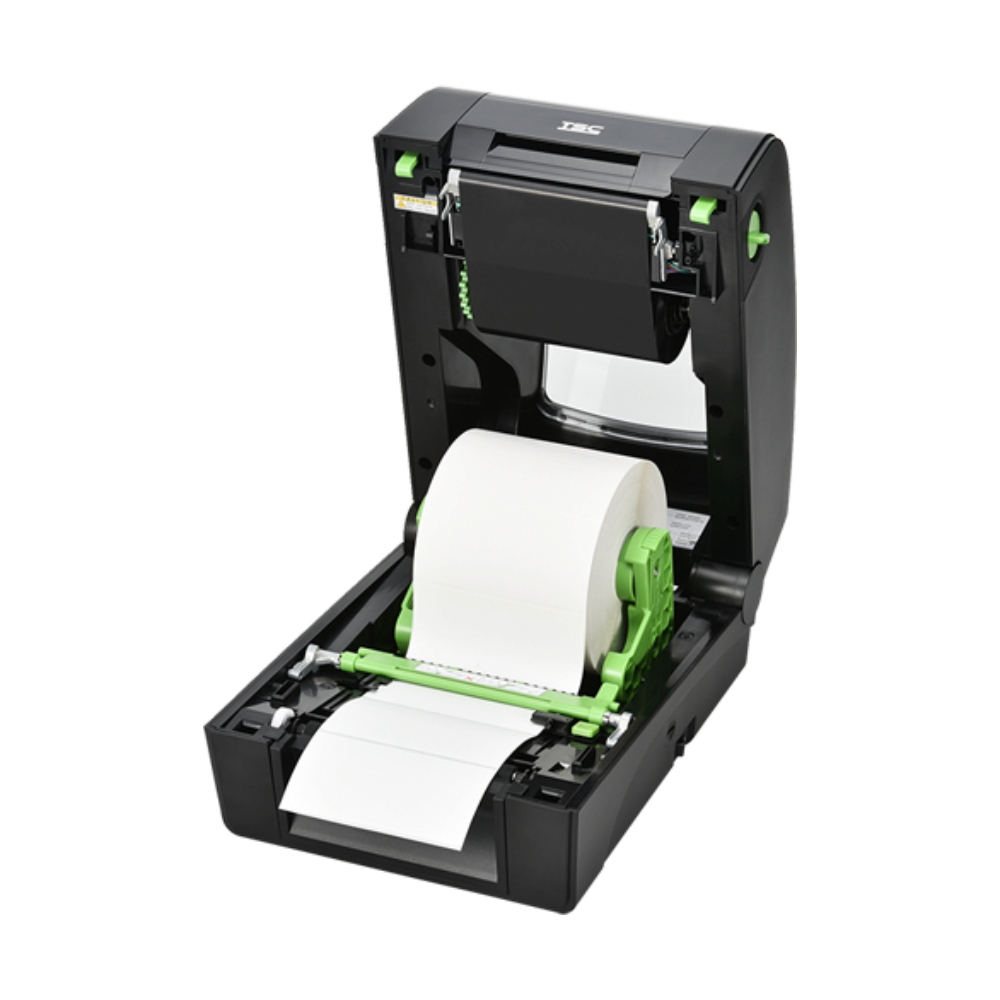

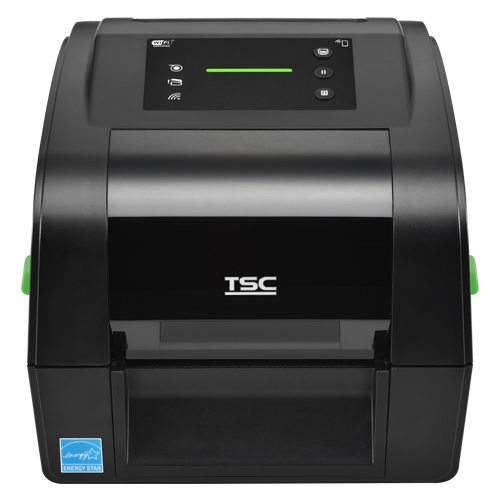

Printer Barcode TSC TH240 (Port USB,LAN)
203 dpi (8 dots/mm) / USB / LAN / Serial RS-232 / USB Host
Price
฿9,631
SKU: A0181143
Technical Specifications
Print Speed203mm (8") / second
Resolution203 dpi (8 dots/mm)
DuplexNo
ADFNo
Memory128 MB Flash memory 128 MB SDRAM microSD card reader for Flash memory expansion, max. 512 GB, FAT32 and exFAT only
Scanner
Connectivity
InterfaceUSB / LAN / Serial RS-232 / USB Host
Consumables
CartridgeN/A (thermal/ribbon-based, not cartridge)
Additional Specifications
Barcode1D barcode Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D barcode TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode), rMQR Code
Dimension(W x D x H) : 22.30 x 28.60 x 18.60 cm
Display PanelLED with buttons 1 x power switch 1 x feed button 1 x pause button 1 x reprint button 1 x status indicator 4 x intuitive icon indicators
EnvironmentOperation : 0°C to 40°C (32°F to 104°F), 25% - 85% non-condensing Storage : -40°C to 60°C (-40°F to 140°F), 10% - 90% non-condensing
Font8 alpha-numeric bitmap fonts Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font ARIALUNI.TTF Unicode true type font
Gross Weight3.50 KG
MediaMedia Type : Continuous, die-cut, black mark, fan-fold, notch (outside wound) Media Width : 15mm - 120mm (0.59" - 4.72") Media Thickness : 0.06mm - 0.19mm (2.36mil - 7.48mil) Media Core Diameter : 25.4mm - 38.1mm (1" - 1.5") Label Length : 5mm - 25,400mm (0.20" - 1,000") Label Roll Capacity : 127mm (5") OD
Net Weight2.8 kg
Package ContentsQuick start guide USB cable Power cord External universal switching power supply 1" ribbon spindle x 2 for 300m ribbon roll 1" ribbon paper core Media adaptor for 120mm wide media
Package Dimension(W x D x H) : 24.00 x 32.00 x 23.00 cm
Power SupplyExternal universal switching power supply Input : AC 100-240V, 2.0A, 50-60Hz Output : DC 24V, 3.75A, 90W
Print Length25,400mm (1,000")
Print MethodDirect thermal & Thermal transfer
Print Width108mm (4.25")
Processor32-bit RISC CPU
Ribbon300m long, max. OD 67mm, 1" core (ink coated outside) 110m long, max. OD 40mm, 0.5" core (ink coated outside) Ribbon Width : 40mm - 110mm (1.6" - 4.3")
SensorTransmissive gap sensor Black mark reflective sensor (position adjustable) Ribbon end sensor Head open sensor
Short SpecDirect Thermal & Thermal Transfer / Speed 8 นิ้วต่อวินาที / 203dpi / Ribbon 110x300 / กระดาษ 0.59-4.72 นิ้ว / LAN
System SupportWindows / MAC / Linux
Volume17,664.00 cm3
Warranty:2 Years
