tsc

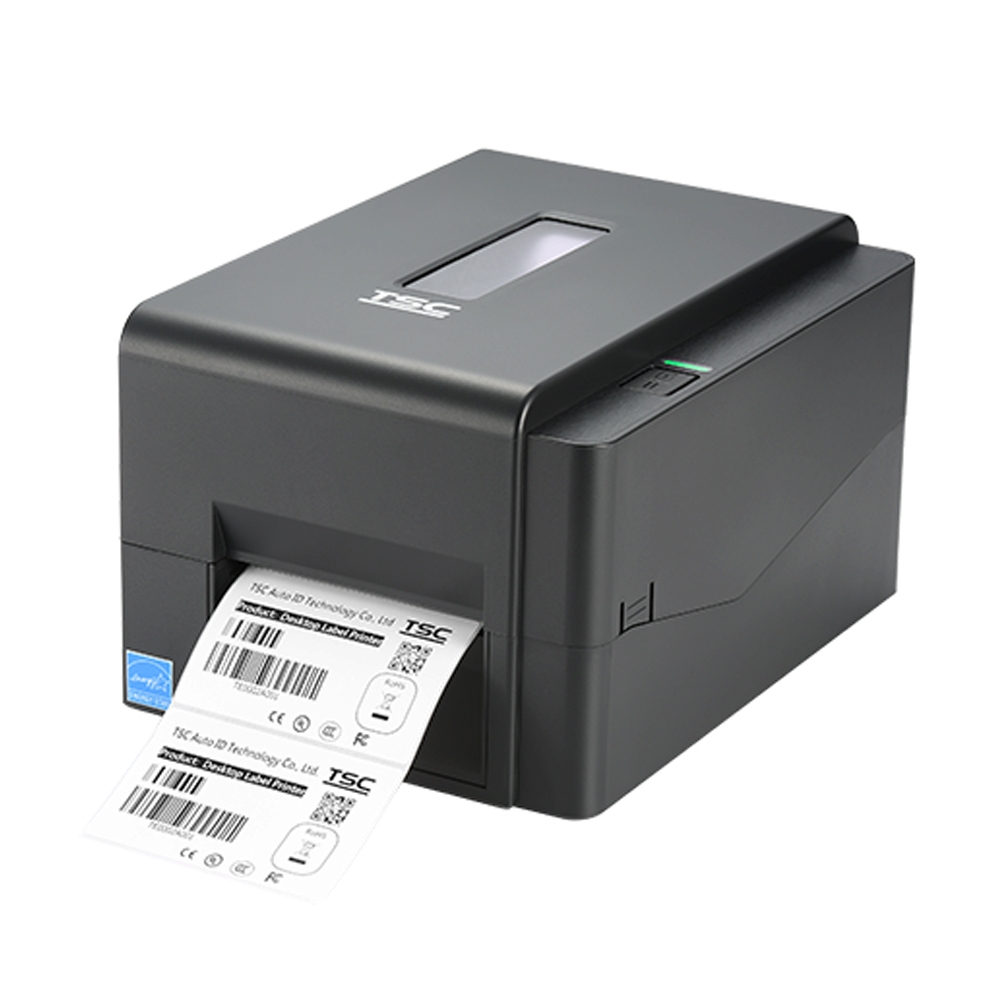

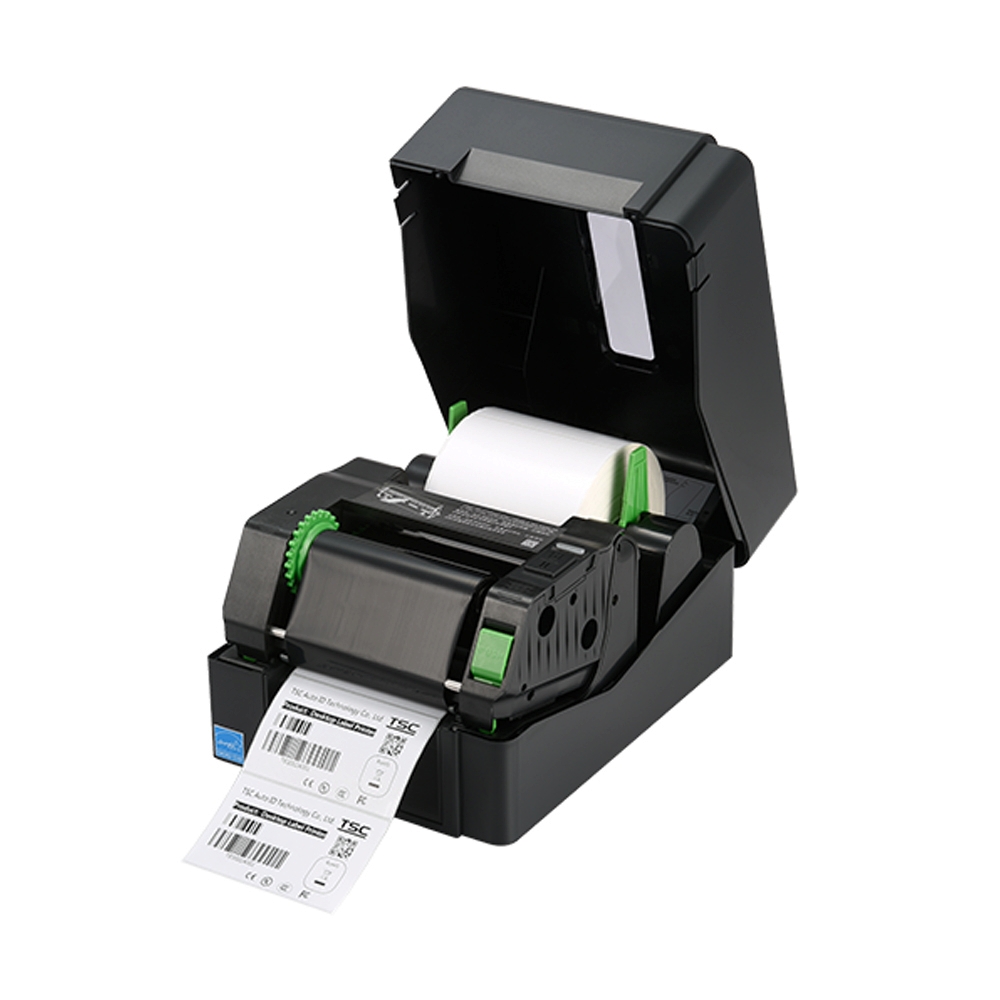

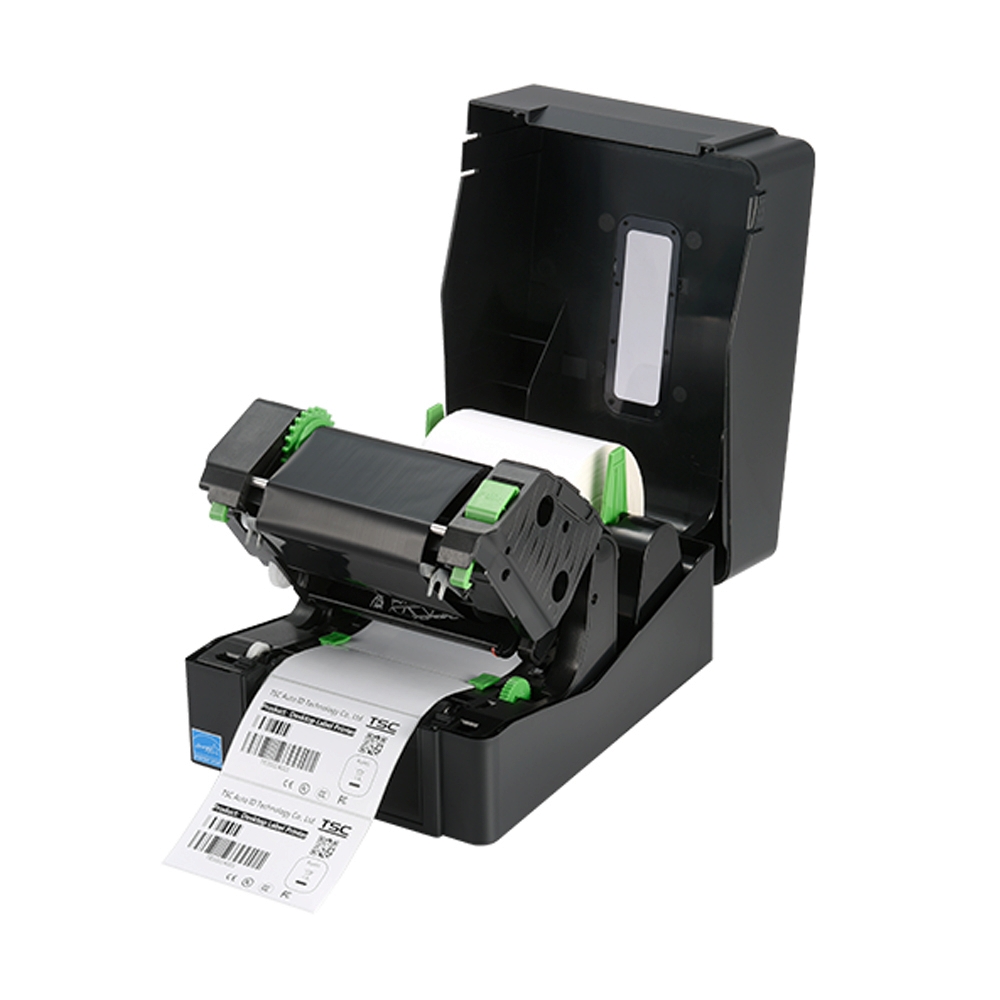

Printer Barcode TSC TE310
300 dpi (12 dots/mm) / USB / LAN Serial RS-232 USB Host
Price
฿8,137
SKU: A0175753
Technical Specifications
Print SpeedUp to 5 ips (127 mm/s)
Resolution300 dpi (12 dots/mm)
DuplexNo
ADFNo
MemoryRAM 64 MB SDRAM Flash 128 MB
Scanner
Connectivity
InterfaceUSB / LAN Serial RS-232 USB Host
Consumables
CartridgeN/A (thermal/ribbon-based, not cartridge)
Additional Specifications
Barcode1D bar code Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D bar code GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417 Font and barcode rotation 0, 90, 180, 270 degree
Dimension(W x D x H) : 20.40 x 28.00 x 16.40 cm
Display Panel1 x power switch 1 x feed and pause button 1 x LED (3 colors: green, amber & red)
EnvironmentOperation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Font8 alpha-numeric bitmap fonts Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable
Gross Weight3.70 KG
MediaInternal Label Capacity : 5" (127 mm) OD Max. Media Width : 0.8" - 4.4" (20 - 112 mm) Media Type : Continuous; Die-Cut; Black Mark; Fan-Fold; Notched (Outside Wound) Media Core Diameter : 1" - 1.5" (25.4 - 38 mm) Label length : 5 ~ 11,430 mm (0.2" ~ 450")
Net Weight2.5 kg
Package Contents• Windows labeling software CD disk • Quick start guide • USB cable • Power cord • External universal switching power supply • 1" label spindle, fixing tab x 2, 1.5" adapter x 2 • 1" ribbon spindle x 2 for 300M ribbon • 1" ribbon paper core
Package Dimension(W x D x H) : 27.00 x 41.00 x 24.00 cm
Power SupplyExternal universal switching power supply Input : AC 100-240V, 2.5A, 50-60Hz Output : DC 24V, 2.5A, 60W
Print Length450" (11.430 mm)
Print MethodDirect Thermal & Thermal Transfer
Print Width4.16" (105.7 mm)
Processor400 MHz 32-bit RISC CPU
RibbonMax. Ribbon Length : 300 Meters Ribbon Width : 1.6" - 4.3" (40 - 110 mm)
SensorTransmissive gap sensor Black mark reflective sensor (position adjustable) Ribbon end sensor Head open sensor
Short SpecDirect Thermal & Thermal Transfer / Speed 5 นิ้วต่อวินาที / 300dpi / Ribbon 110x300 / กระดาษ 0.8-4.4 นิ้ว / LAN
Special FeaturesEnterprise Printer Management : TSC Console Programming Languages : TSPL-EZD
System SupportWindows Mac Linux
Volume26,568.00 cm3
Warranty:1 Year
