tsc

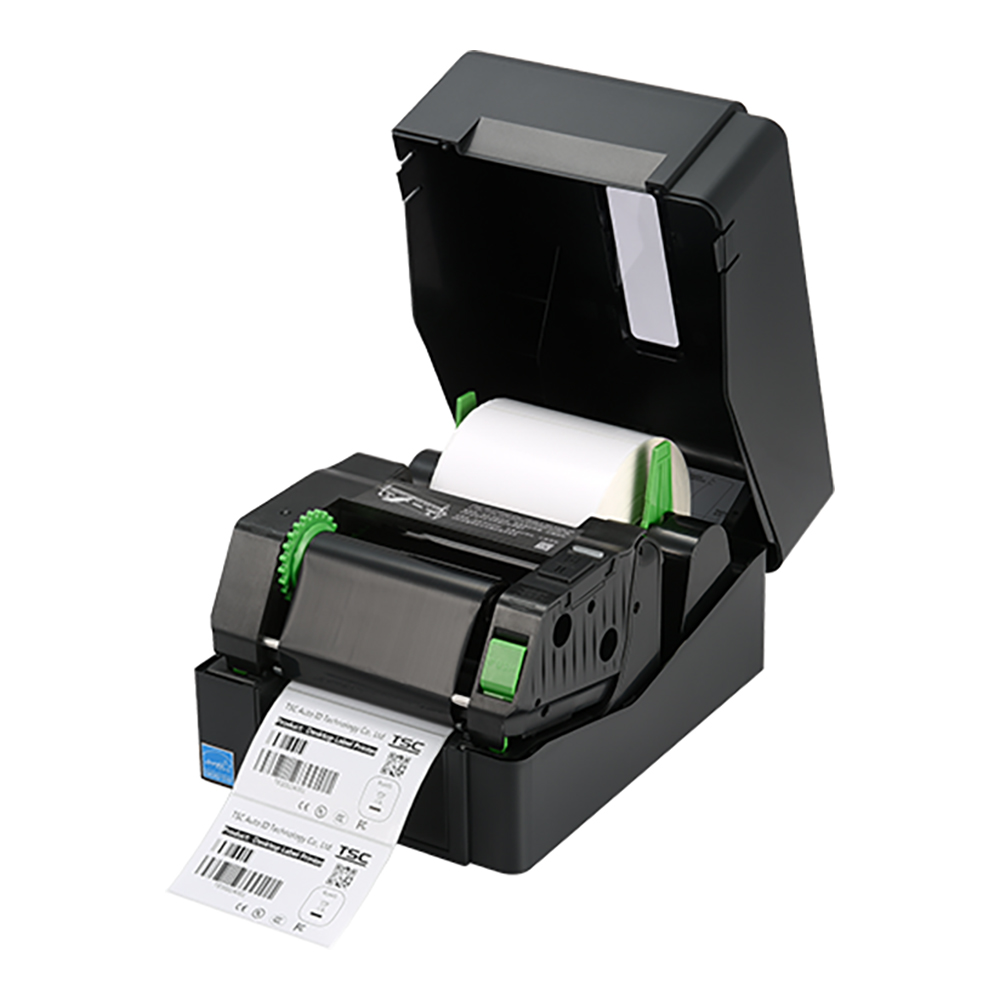

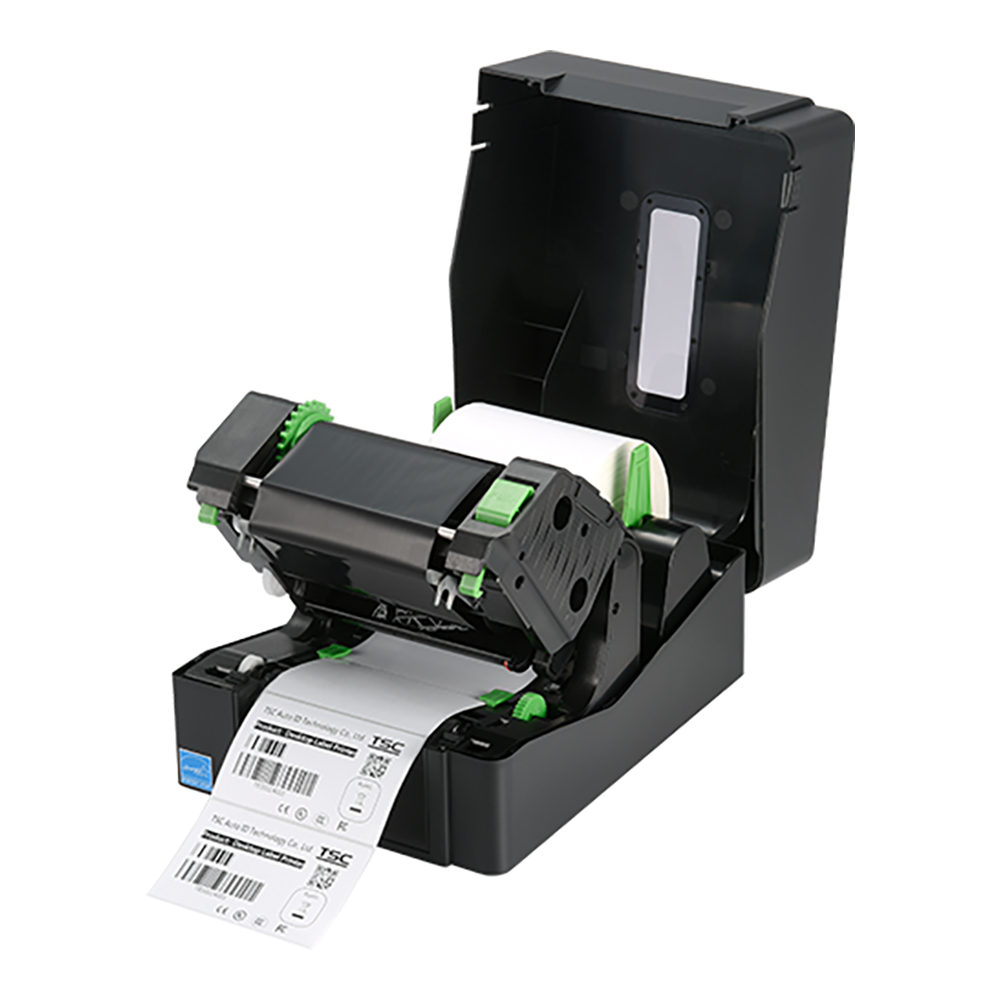

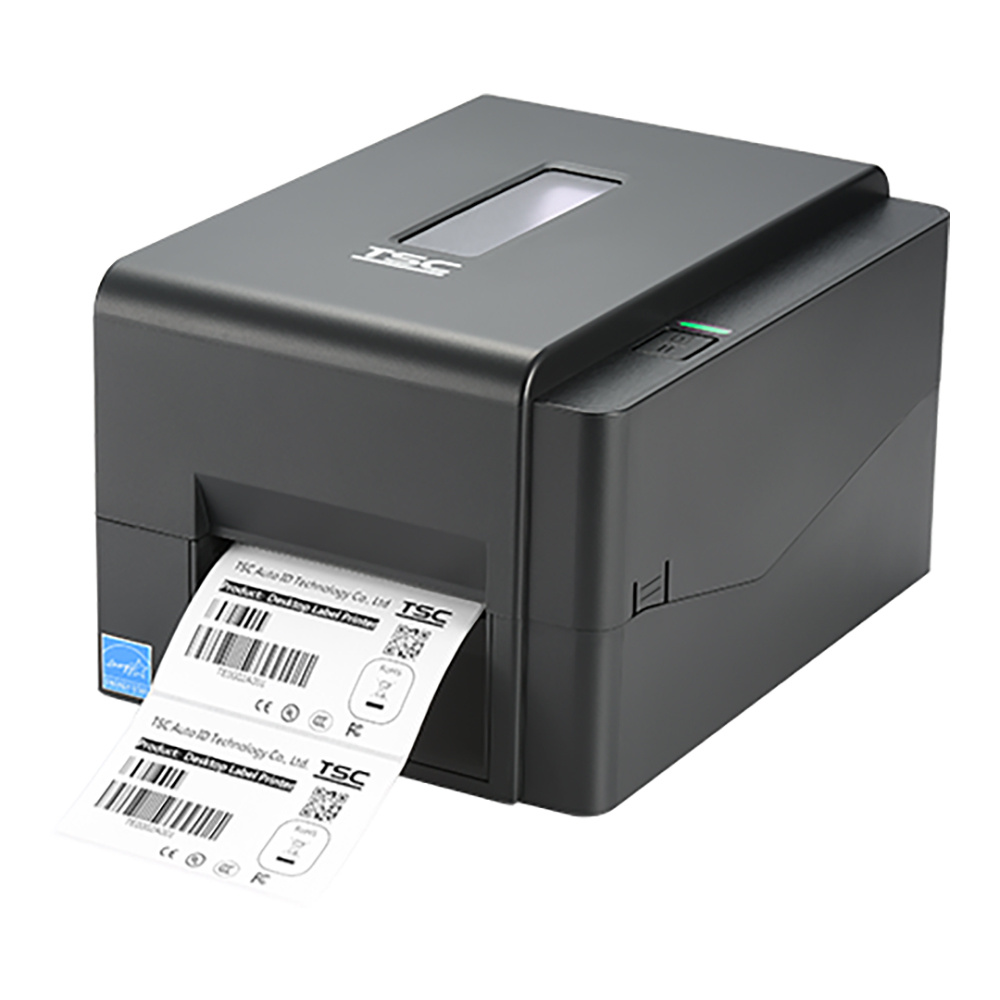

Printer Barcode TSC TE210
8 dots/mm (203 DPI) / USB 2.0 LAN 10/100 Mbps RS 232 USB Host, For Scanner or PC Keyboard
Price
฿5,861
SKU: A0127213
Technical Specifications
Print Speed152.4 mm (6") second
Resolution8 dots/mm (203 DPI)
DuplexNo
ADFNo
Memory128 Flash Memory 64 MB SD RAM
Scanner
Connectivity
InterfaceUSB 2.0 LAN 10/100 Mbps RS 232 USB Host, For Scanner or PC Keyboard
Consumables
CartridgeN/A (thermal/ribbon-based, not cartridge)
Additional Specifications
Barcode1D Bar Code Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93 EAN13 EAN8, UPCA UPCE EAN and UPC 2(5) digits add-on, Codabar, Postnet, MsI, MSI with check digit, PLESSEY, China post, ITF14 Code 11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post ldentcode, Deutsche Post Leitcode, LOGMARS 2D bar code GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417 Font and barcode rotation : 0, 90, 180, 270 degree
Display Panel1 power switch, 1 feed and pause button & 1 LED (3 colors: green, amber & red)
EnvironmentOperation : 5~ 400C, 25 ~ 85% non-condensing Storage : -40~60c,10 ~ 90% non-condensing
FontInternal fonts 8 alpha-numeric bitmap fonts : Monotype Imagee true type font engine with one CG Triumvirate Bold Condensed scalable font Printer language : TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Gross Weight3.80 KG
MediaLabel Roll Capacity : 127mm (5") OD Media Type : Continuous, die-cut, black mark, fan-fold, notched (outside wound) Media Width : 20 ~ 112 mm (0.8" ~ 4.4") Media Thickness : 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) Media Core diameter : 25.4 ~ 38 mm (1" ~ 1.5") Label lenght : 5~ 25,400 mm (0.2" ~ 1000")
Package Contents1 x Windows labeling software CD disk 1 x Quick start guide 1 x USB cable 1 x Power cord 1 x External universal switching power supply 1 x 1" label spindle fixing tab x 2, 1.5" adapter x 2 1 x 1" ribbon spindle x 2 for 300M rilbbon 1 x 1" ribbon paper core **ตัว Ribbon แยกจำหน่าย
Package Dimension(W x D x H) : 28.00 x 41.00 x 24.00 cm
Power SupplyExternal universal switching power supply Input : AC 100-240V, 2.5A, 50-60Hz Output : DC 24V, 2.5A, 60W
Print LengthMax 25,400 mm (1000")
Print MethodDirect Thermal & Thermal Transfer
Print WidthMax 108 mm (4.25")
Processor32-bit RISC CPU
RibbonRibbon width : 40mm - 110 mm (16" - 4.3") Ribbon Long : 300 m long, max. OD 67 mm, 1" core (ink coated outside) Ribbon Long : 110 m long, max. OD 40 mm, 0.5" core (ink coated outside) **ใช้กับ Ribbon ขนาด : 110mm x 300m
SensorTransmissive gap sensor Black mark reflective sensor (position adjustable) Ribbon end sensor Head open sensor Realtime Clock Buzzer
Short SpecDirect Thermal & Thermal Transfer / Speed 6 นิ้วต่อวินาที / 203dpi / Ribbon 110x300 / กระดาษ 0.8-4.4 นิ้ว / LAN
Volume27,552.00 cm3
Warranty:1 Year
