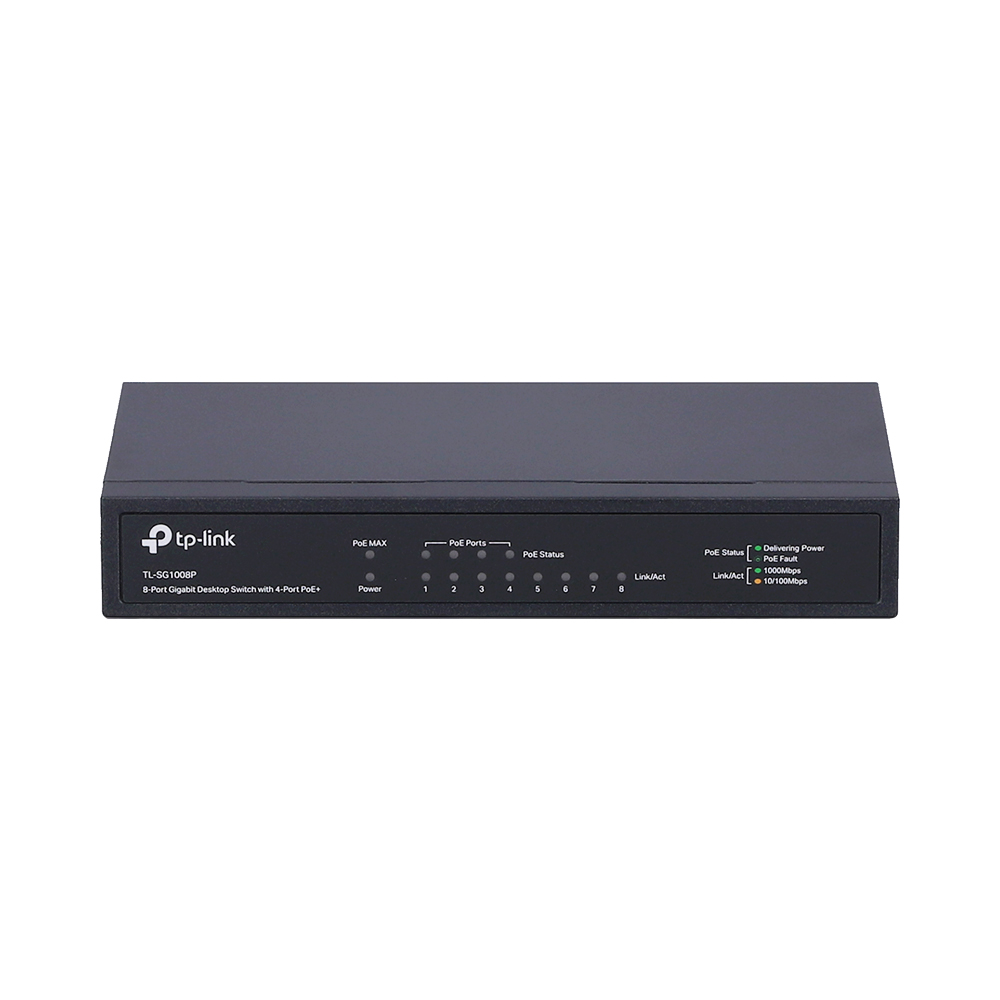

Gigabit Switching Hub 8 Port TP-LINK TL-SG1008P (7'',4 PoE)
Switch / N/A (Wired)
Price
฿2,153
SKU: A0091237
Technical Specifications
Network Specifications
Device TypeSwitch
Wi-Fi StandardN/A (Wired)
Speed10/100/1000
Build
Ports• 8× 10/100/1000 Mbps RJ45 Ports, • AUTO Negotiation, • AUTO MDI/MDIX
AntennaNone (Internal)
WarrantyLT.
Additional Specifications
CertificationsFCC, CE, RoHS
Dimension(W x D x H) : 17.10 x 9.80 x 2.70 cm
Dimensions6.7*3.9*1.1 in. (171*98*27 mm)
EnvironmentEnvironment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing Max Heat Dissipation • 16.03 BTU/h (no PD connected) • 253.67 BTU/h (with 64 W PD connected)
Fan QuantityFanless
Features• Compatible With IEEE 802.3af/at Compliant PDs • IGMP Snooping • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control • 802.1p/DSCP QoS • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4)
Forwarding Rate11.904 Mpps
Gross Weight1.10 KG
Jumbo Frame16 KB
Mac Address Table4K
Net Weight0 kg
Network Interface• 8× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Package ContentsTL-SG1008P Power Adapter Installation Guide
Package Dimension(W x D x H) : 23.00 x 28.00 x 7.00 cm
Poe• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 64 W
Power Consumption• 4.7 W (220/50 Hz no PD connected) • 74.39 W (220/50 Hz with 64 W PD connected)
Power SupplyExternal Power Adapter(Output: 53.5VDC / 1.31A)
Standards And ProtocolsIEEE 802.3/3u/3ab, IEEE 802.3af
Switching Capacity16 Gbps
Transmission MethodStore-And-Forward
Volume4,508.00 cm3
Warranty:LT.
