tp-link

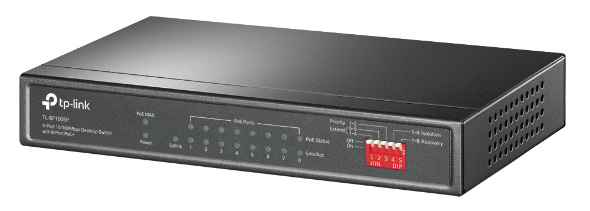

Switching Hub 8 Port TP-LINK TL-SF1009P (7'',8 PoE ,+1 UpLINK)
Switch
Price
฿1,329
SKU: A0147726
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100
Build
Ports8
WarrantyLT.
Additional Specifications
CertificationsFCC, CE, RoHS
Dimension(W x D x H) : 17.00 x 9.80 x 2.70 cm
EnvironmentOperating Temperature: 0–40 ? (32–104 ?) Storage Temperature: -40–70 ? (-40–158 ?) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
Gross Weight0.90 KG
Jumbo Frame2 KB
Mac Address Table2K
Net Weight0 kg
Network Interface9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) AUTO Negotiation AUTO MDI/MDIX
Package ContentsTL-SF1009P Power Adapter Installation Guide
Package Dimension(W x D x H) : 22.50 x 28.00 x 6.50 cm
PoeStandard: 802.3 af/at compliant PoE Ports: Ports 1–8 Power Supply: 65 W
Power Consumption3.6 (220/50 Hz. no PD connected) 77.08 (220/50 Hz. with 65 W PD connected)
Power SupplyExternal Power Adapter (Output: 53.5VDC / 1.31A)
Standards And Protocols100BASE-TX
Switching Capacity1.8 Gbps
Transmission MethodStore-And-Forward
Volume4,095.00 cm3
Warranty:LT.
