tp-link

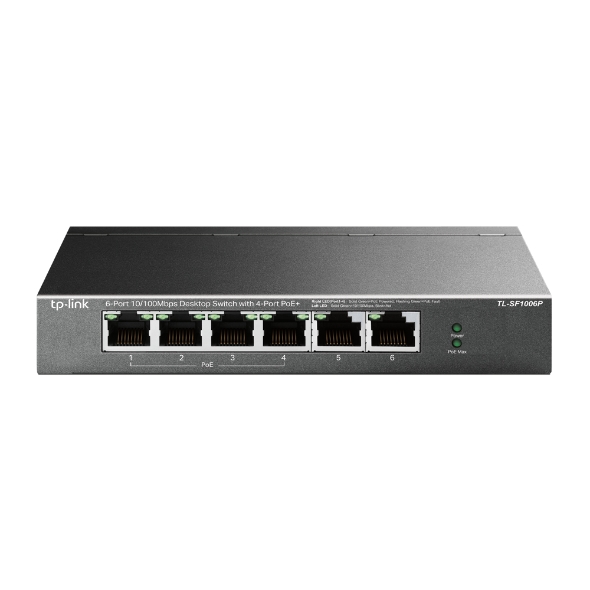

Switching Hub 6 Port TP-LINK TL-SF1006P (6'',4 PoE)
Switch / N/A (Wired)
Price
฿1,020
SKU: A0147725
Technical Specifications
Network Specifications
Device TypeSwitch
Wi-Fi StandardN/A (Wired)
Speed10/100
Build
Ports6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+), AUTO Negotiation, AUTO MDI…
AntennaNone (Internal)
WarrantyLT.
Additional Specifications
CertificationsFCC, CE, RoHS
Dimension(W x D x H) : 15.80 x 10.15 x 2.50 cm
EnvironmentOperating Temperature: 0–40 ? (32–104 ?) Storage Temperature: -40–70 ? (-40–158 ?) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
Forwarding Rate0.8928 Mpps
Gross Weight0.88 KG
Jumbo Frame2 KB
Mac Address Table2K
Net Weight0 kg
Network Interface6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) AUTO Negotiation AUTO MDI/MDIX
Package ContentsTL-SF1006P Power Adapter Installation Guide
Package Dimension(W x D x H) : 13.00 x 19.50 x 12.00 cm
PoeStandard: 802.3 af/at compliant PoE Ports: Ports 1–4 Power Supply: 67 W
Power Consumption1.9 W (220 V / 50 Hz, no PD connected) 74 W (220 V / 50 Hz, with 67 W PD connected)
Power SupplyExternal Power Adapter (Output: 53.5 V DC / 1.31 A)
Standards And Protocols100BASE-TX
Switching Capacity1.2 Gbps
Volume3,042.00 cm3
Warranty:LT.
