tp-link

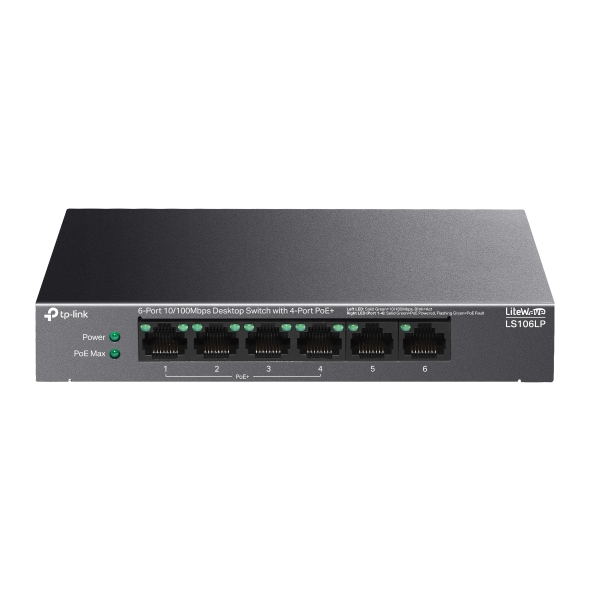

Switching Hub 6 Port TP-LINK LS106LP (6")
Switch / N/A (Wired)
Price
฿711
SKU: A0161343
Technical Specifications
Network Specifications
Device TypeSwitch
Wi-Fi StandardN/A (Wired)
Speed10/100
Build
Ports• 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports)
AntennaNone (Internal)
WarrantyLT.
Additional Specifications
Certifications• CE, FCC, RoHS
Dimension(W x D x H) : 15.80 x 10.10 x 2.50 cm
Environment• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Fan Quantity• Fanless
Features• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery Button (Ports 1-4) • Compatible With IEEE 802.3af Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology
Forwarding Rate• 0.8928 Mpps
Gross Weight0.59 KG
Jumbo Frame• 2 KB
Mac Address Table2K
Material• Metal
Net Weight0.19 kg
Network Interface• 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports)
Package Contents• LS106LP • Power Adapter • Installation Guide
Package Dimension(W x D x H) : 20.00 x 10.00 x 10.00 cm
Poe• PoE Ports: Ports 1–4, up to 15.4 W PoE output per port Power Supply: 41 W
Power Consumption2.53 W (220 V/50 Hz no PD connected) 47.76 W (220 V/50 Hz with 41 W PD connected)
Power Supply• External Power Adapter (Output: 53.5VDC / 0.81A)
Standards And Protocols• 802.3 af compliant
Switching Capacity• 1.2 Gbps
Transmission Method• Store and Forward
Volume2,000.00 cm3
Warranty:LT.
