tp-link

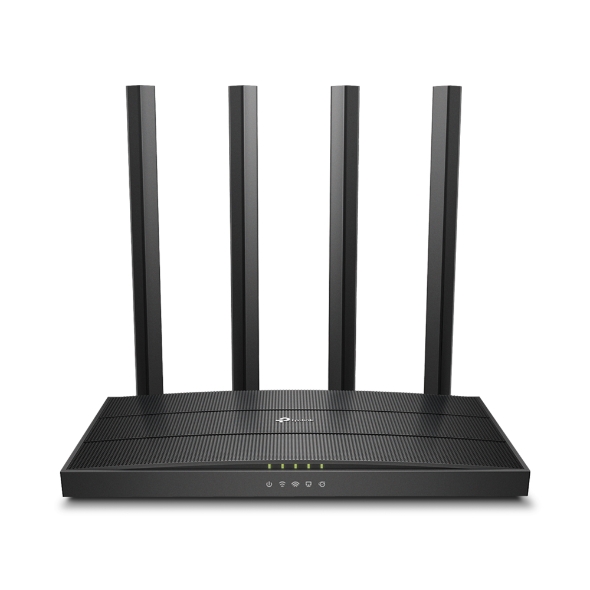

Router TP-LINK (Archer C6_V4) Wireless AC1200 Dual Band Gigabit
Router / Wi-Fi 5 (802.11ac/n/a/b/g)
Price
฿1,123
SKU: A0146038
Technical Specifications
Network Specifications
Device TypeRouter
Wi-Fi StandardWi-Fi 5 (802.11ac/n/a/b/g)
SpeedN/A
Build
Ports1 x Gigabit WAN Port, 4 x Gigabit LAN Ports
Antenna4× Fixed High-Performance Antennas Multiple antennas form a…
WarrantyLT.
Additional Specifications
Antennas4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
ButtonWPS/Wi-Fi Button Power On/Off Button Reset Button
CertificationFCC, CE, RoHS
Dimension(W x D x H) : 21.50 x 11.70 x 3.20 cm
EnvironmentOperating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
FeaturesAccess Control IP & MAC Binding Application Layer Gateway Guest Network OneMesh™ Supported Parental Controls NAT Forwarding IPTV
FirewallSPI Firewall
FrequencyAC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n)
Gross Weight0.60 KG
Interface1 x Gigabit WAN Port 4 x Gigabit LAN Ports
Ipv6 SupportYes
LedsYes
ManagementTether App Webpage
Net Weight0 kg
Operation ModeRouter Mode Access Point Mode
Package ContentsWi-Fi Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
Package Dimension(W x D x H) : 24.00 x 35.00 x 8.00 cm
Power Supply12V / 1A
Processor Specs1.2 GHz CPU
Range3 Bedroom Houses
StandardsWi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Transmit ReceiveWiFi Transmission Power CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz) WiFi Reception Sensitivity 5GHz: 11a 6Mbps:-93dBm; 11a 54Mbps:-78dBm 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm;
Volume6,720.00 cm3
Wireless FunctionsDual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation
Warranty:LT.
