tp-link

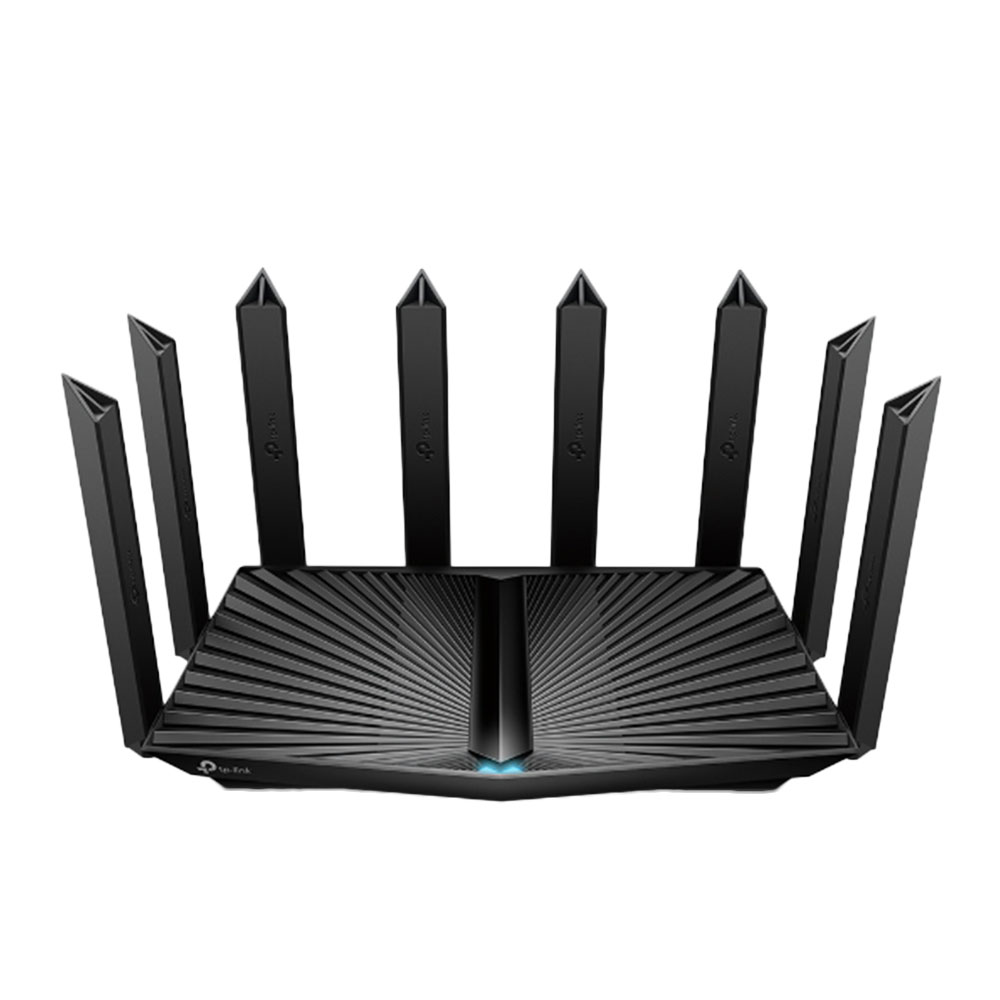

Router TP-LINK (Archer AX80) Wireless AX6000 Dual Band Gigabit WiFi 6
Router / Wi-Fi 6 (802.11ax/ac/n/a/b/g)
Price
฿7,097
SKU: A0151507
Technical Specifications
Network Specifications
Device TypeRouter
Wi-Fi StandardWi-Fi 6 (802.11ax/ac/n/a/b/g)
SpeedN/A
Build
Ports1 x 2.5 Gigabit WAN/LAN Port 1 x Gigabit WAN/LAN Port 3 x Gigabit LAN Ports
Antenna8× Fixed High-Performance Antennas
WarrantyLT.
Additional Specifications
Antennas8× Fixed High-Performance Antennas
Button• LED On/Off Button • WPS Button • Wi-Fi On/Off Button • Power On/Off Button • Reset Button
CertificationFCC, RoHS
Dimension(W x D x H) : 27.73 x 18.39 x 57.30 cm
EnvironmentOperating Temperature: 0°C~40°C(32°F~104°F) Operating Humidity: 10%~90% non-condensing
FrequencyAX6000 • 5 GHz: 4804Mbps (802.11ax, HE160) • 2.4 GHz: 1148 Mbps (802.11ax)
Gross Weight2.31 KG
Ipv6 SupportYES
Net Weight0 kg
Operation Mode• Router Mode • Access Point Mode
Package Contents• Wi-Fi Router Archer AX80 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide
Package Dimension(W x D x H) : 36.50 x 20.10 x 29.00 cm
Power Supply12 V/3.3 A
Range3+ Bedroom Houses• 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas • Beamforming Concentrates wireless signal strength towards clients to expand WiFi range • High-Power FEM Improves transmission power to strengthen signal coverage
StandardsWi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Transmit Receive2.4 GHz: 11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -67dBm, 11ac VHT40 MCS0: -94dBm, 11ac VHT40 MCS11: -64dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -67dBm, 11ax HE40 MCS0: -94dBm, 11ac HE40 MCS11: -64dBm 5 GHz: 11ac VHT20 MCS0: -96dBm, 11ac VHT20 MCS11: -66dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -63dBm, 11ac VHT80 MCS0: -91dBm, 11ac VHT80 MCS11: -61dBm, 11ac VHT160 MCS0: -86dBm, 11ac VHT160 MCS11: -58dBm, 11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -63dBm, 11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -61dBm, 11ax HE160 MCS0: -86dBm, 11ax HE160 MCS11: -58dBm
Usb Interface1 x USB 3.0 Port USB Sharing: • FTP Server • Media Server • Samba Server
Volume21,275.85 cm3
Vpn SupportVPN Server • OpenVPN • PPTP • L2TPVPN Client • OpenVPN • PPTP • L2TP
Warranty:LT.
