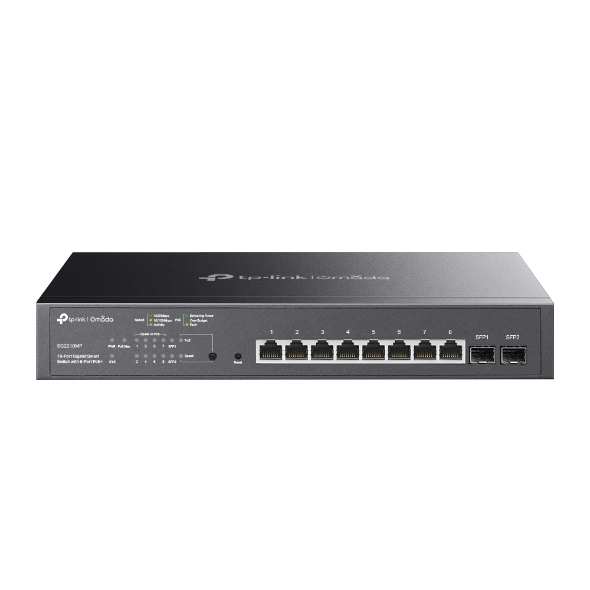

Gigabit Switching Hub 8 Port TP-LINK TL-SG2210MP (11",8 PoE,+2 SFP)
Switch
Price
฿4,892
SKU: A0134187
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports8
WarrantyLT.
Additional Specifications
CertificationsCE, FCC, RoHS
Dimension(W x D x H) : 29.50 x 18.00 x 4.30 cm
EnvironmentOperating Temperature: 0 - 50℃ (32 - 122℉); Storage Temperature: -40 - 70℃ (-40 - 158℉) Operating Humidity: 10 - 90% RH non-condensing Storage Humidity: 5 - 90% RH non-condensing
Fan Quantity1
Forwarding Rate14.9Mpps
Gross Weight2.18 KG
Jumbo Frame9KB
Mac Address Table8K
ManagementWeb-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log
Net Weight1.53 kg
Network Interface8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) 2× 100/1000 Mbps SFP Slots
Package Dimension(W x D x H) : 41.00 x 25.00 x 8.00 cm
Packet Buffer Memory4.1Mbit
PoePoE
Power Consumption12.2W (110V / 60Hz with no PD connected) 173.9W (110V / 60Hz with 150W PD connected)
Power SupplyPoE+ 8 Ports /150 W
SecurityAAA 802.1X IP/IPv6-MAC Binding IP Source Guard IPv6 Source Guard DoS Defend Static/Dynamic/Permanent Port Security Broadcast/Multicast/Unicast Storm Control Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) IP/Port/MAC based access control
Standards And ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Switching Capacity20Gbps
VlanVLAN Group - Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN Protocol VLAN GVRP Voice VLAN
Volume8,200.00 cm3
Warranty:LT.
