tp-link

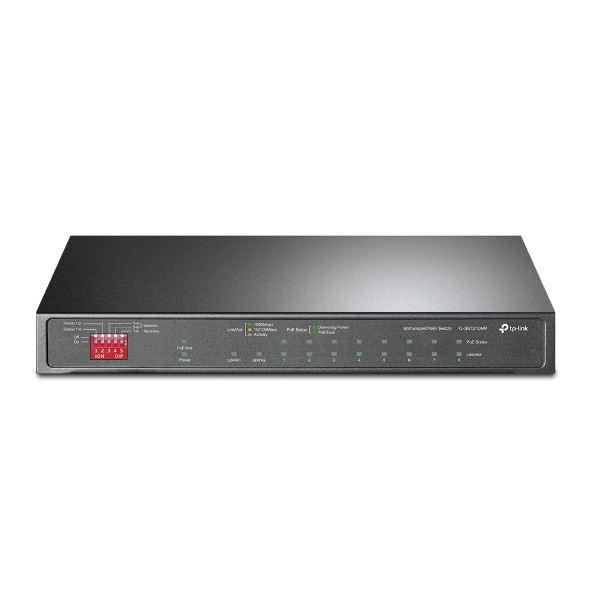

Gigabit Switching Hub 8 Port TP-LINK TL-SG1210MP (8",8 PoE+)
Switch / N/A (Wired)
Price
฿4,110
SKU: A0183619
Technical Specifications
Network Specifications
Device TypeSwitch
Wi-Fi StandardN/A (Wired)
Speed10/100/1000
Build
Ports• 8× 10/100/1000 Mbps RJ45 Ports (power 123W budget), • 1× 1000 Mbps Combo SFP/RJ45 Port,…
AntennaNone (Internal)
WarrantyLT.
Additional Specifications
Certifications• FCC, CE, RoHS
Dimension(W x D x H) : 20.90 x 12.60 x 2.60 cm
Environment• Operating Temperature: 0–40°C (32–104°F) • Storage Temperature: -40–70°C (-40–158°F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Fan Quantity• Fanless
Features• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–4 / 5-8) • PoE Auto Recovery (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
Forwarding Rate• 14.88 Mpps
Jumbo Frame• 16 KB
Led Indicators• YES
Mac Address Table• 4K
MaterialMetal
Net Weight0 kg
Network Interface• 8× 10/100/1000 Mbps RJ45 Ports (power 123W budget) • 1× 1000 Mbps Combo SFP/RJ45 Port • 1× 1000 Mbps Uplink
Package Contents• TL-SG1210MP • Power Adapter • Installation Guide
Poe• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 123 W
Power Consumption• 7.93 W (220V / 50Hz with no PD connected) • 141.40 W (220V / 50Hz with 123 W PD connected)
Power Supply• External Power Adapter (Output: 53.5VDC / 2.43A)
Security• Isolation Mode allows one-click client traffic separation for higher security and performance
Standards And Protocols• IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3af, 802.3at
Switching Capacity• 20Gbps
Warranty:LT.
