tp-link

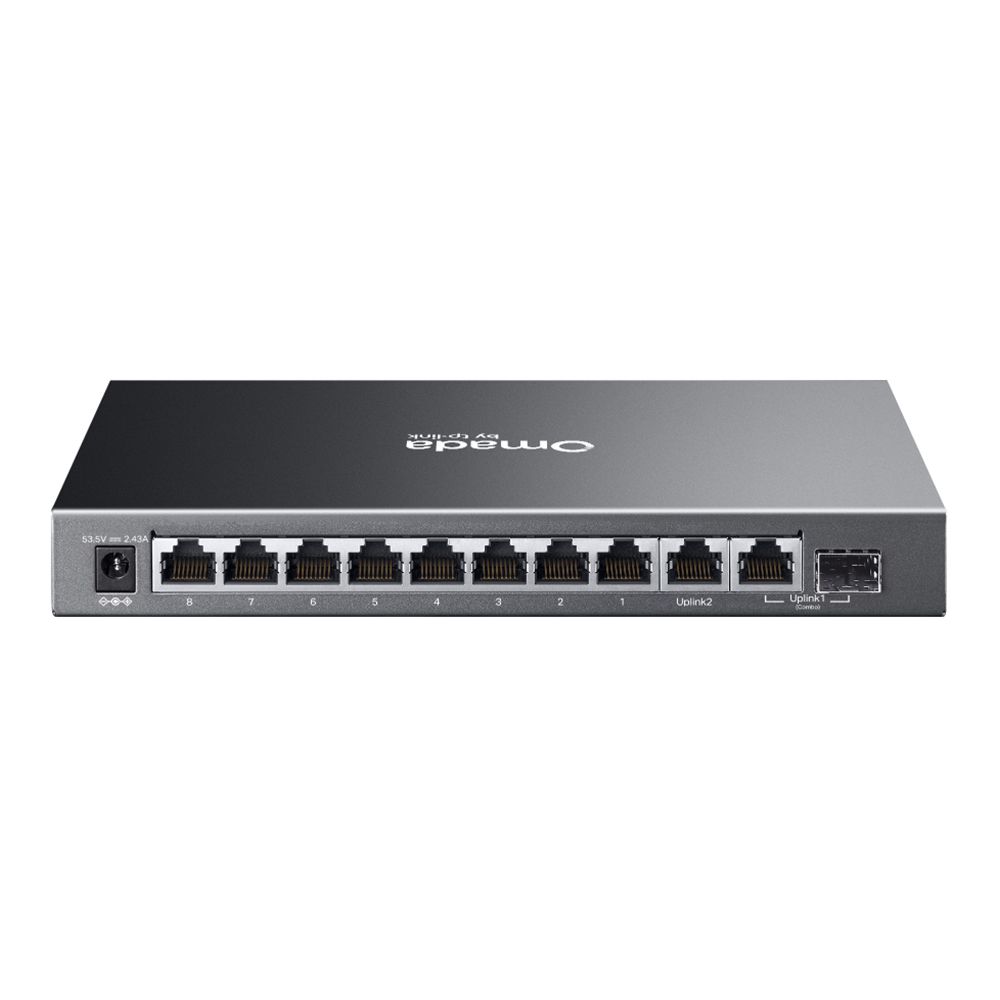

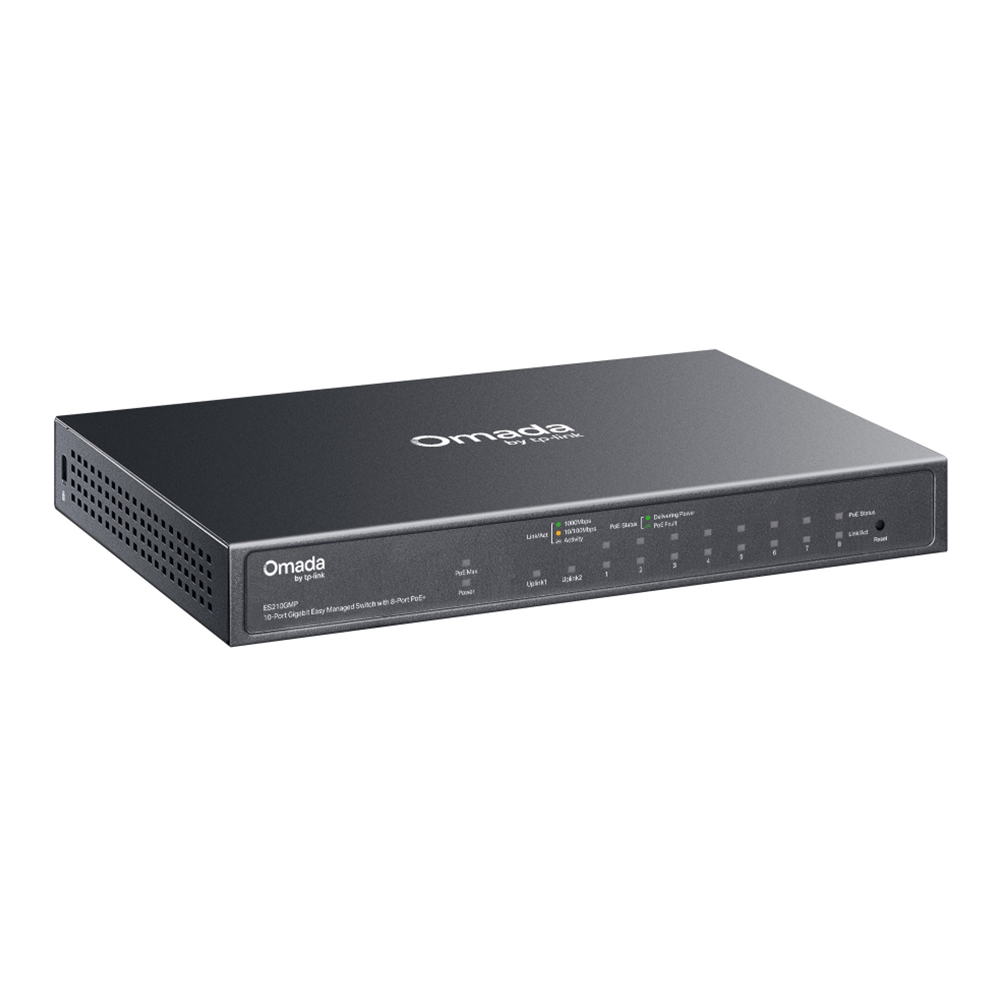

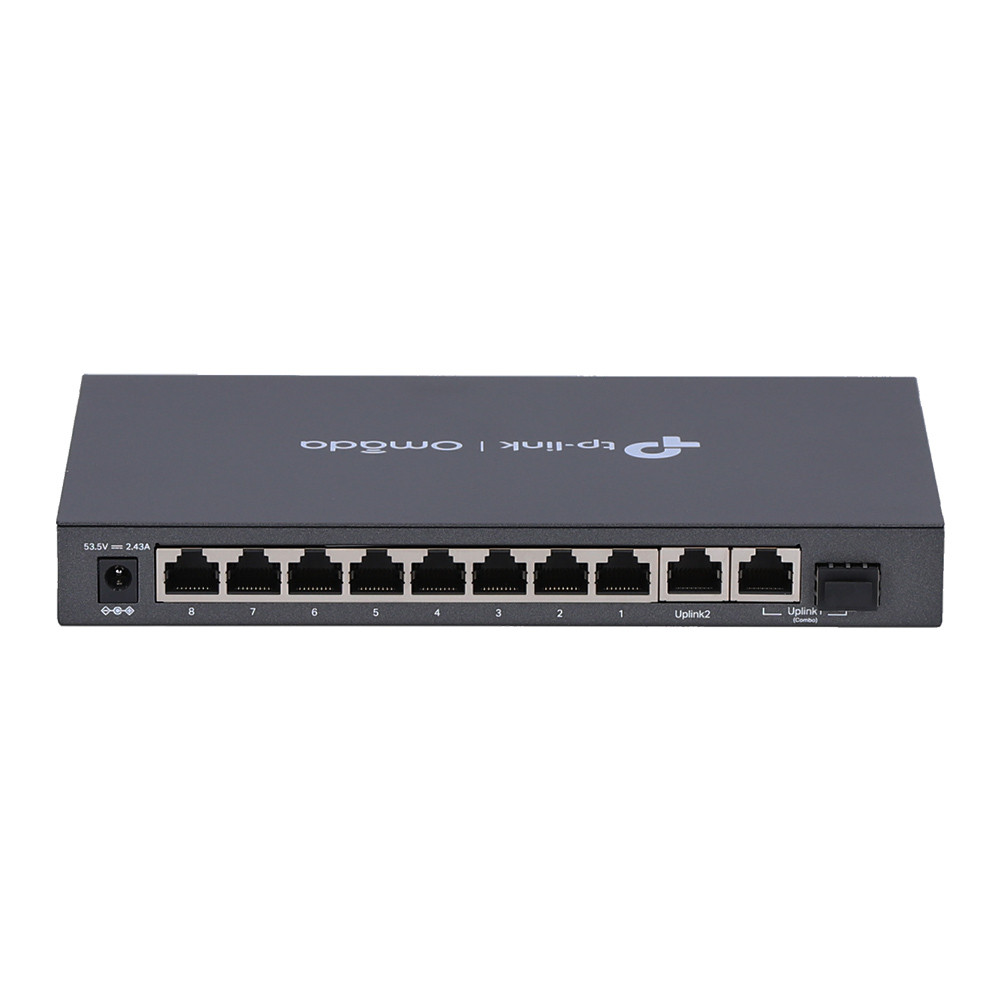

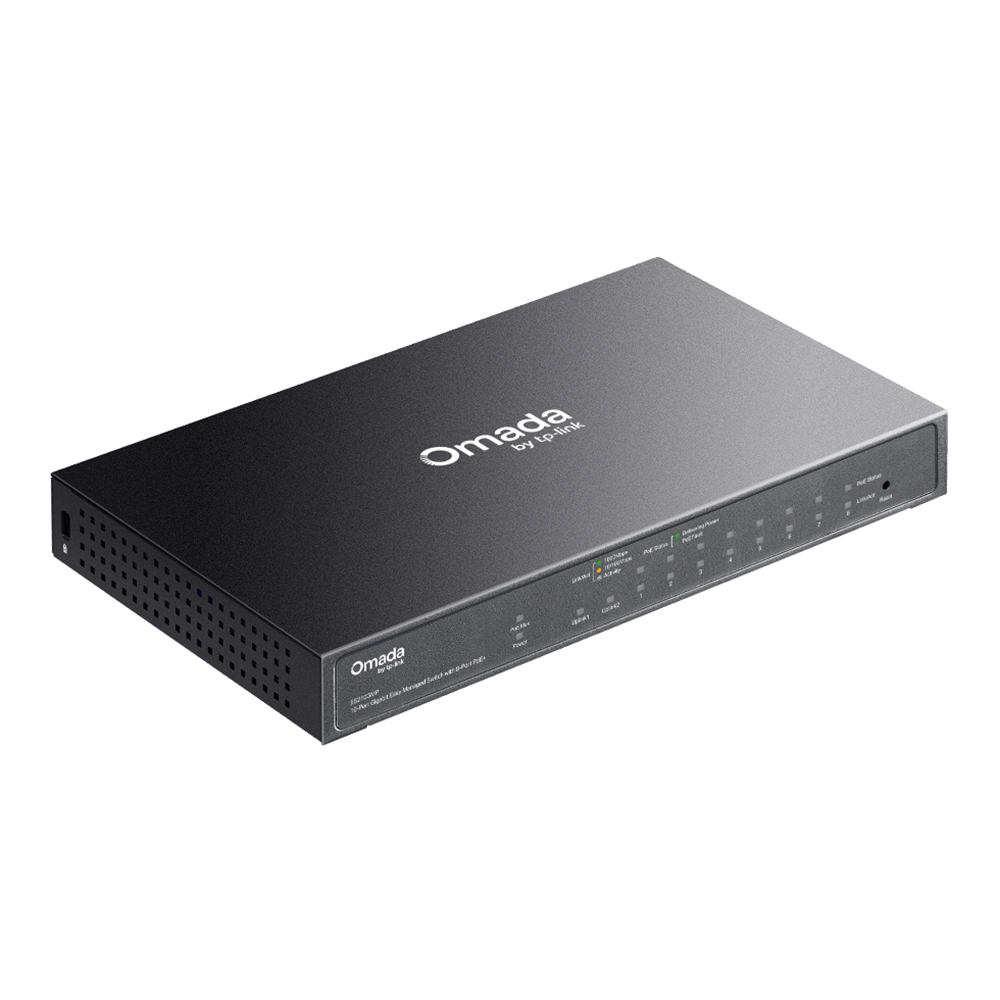

Gigabit Switching Hub 8 Port TP-LINK Omada ES210GMP (8'',8 PoE,+1 SFP)
Switch
Price
฿2,936
SKU: A0168336
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports8
WarrantyLT.
Additional Specifications
Buffer Architecture• 4 Mbit
Certifications• FCC, CE, RoHS
Dimension(W x D x H) : 20.90 x 12.60 x 2.60 cm
Environment• Operating Temperature: 0°C~40°C (32°F~104°F) • Storage Temperature: -40°C~70°C (-40°F~158°F) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
Fan Quantity• Fanless
Features• Quality of Service • L2 Features • L2 Multicast • VLAN
Forwarding Rate• 14.88 Mpps
Gross Weight1.59 KG
Jumbo Frame• 15 KB
Led Indicators• YES
Mac Address Table• 8K
Management• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Material• Metal
Net Weight0 kg
Network Interface• 8× 10/100/1000 Mbps PoE+ RJ45 Ports (8 PoE ports Power Budget 123 W) • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP/RJ45 Combo Port
Package Contents• ES210GMP • Power Adapter • Installation Guide • Rubber Feet
Package Dimension(W x D x H) : 24.00 x 31.50 x 7.00 cm
Poe• Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 123W available for all PoE+ ports, 30W max per port • PoE Auto Recovery‡ • Up to 250m PoE transmission distance**
Power SupplyDC Power Adapter (Output: 53.5 VDC/ 2.43 A)
Security• Physical Security Lock
Standards And Protocols• 802.3af PoE and 802.3at PoE+ compliant
Switching Capacity• 20 Gbps
Transmission Method• Store-And-Forward
Vlan• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Volume5,292.00 cm3
Warranty:LT.
