tp-link

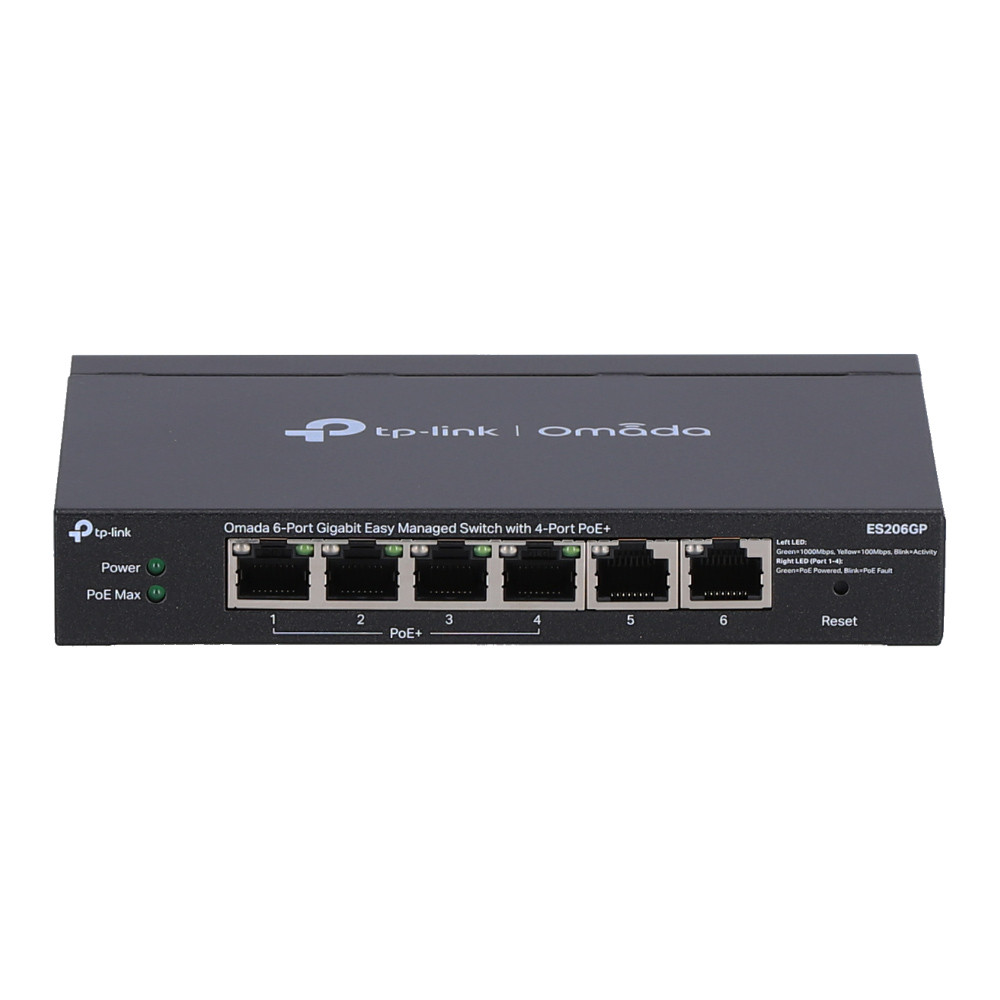

Gigabit Switching Hub 6 Port TP-LINK Omada ES206GP (6'',4 PoE)
Switch
Price
฿1,792
SKU: A0168335
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports6
WarrantyLT.
Additional Specifications
Buffer Architecture• 4 Mbit
Certifications• FCC, CE, RoHS
Dimension(W x D x H) : 15.80 x 10.10 x 2.50 cm
Environment• Operating Temperature: -5°C~40°C (23°F~104°F) • Storage Temperature: -40°C~70°C (-40°F~158°F) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
Fan Quantity• Fanless
Features• Quality of Service • L2 Features • L2 Multicast • VLAN
Forwarding Rate• 7.4 Mpps
Gross Weight0.99 KG
Jumbo Frame• 15 KB
Led Indicators• YES
Mac Address Table• 8K
Management• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Material• Metal
Net Weight0 kg
Network Interface• 6× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+)
Package Contents• ES206GP • Power Adapter • Power Cord • Rubber Feet • Installation Guide
Package Dimension(W x D x H) : 13.00 x 19.50 x 12.00 cm
Poe• Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 4 ports • PoE Budget: 65W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance
Power Supply• DC Power Adapter (Output: 53.5VDC / 1.31A)
Security• Physical Security Lock
Standards And Protocols• 802.3af PoE and 802.3at PoE+ compliant
Switching Capacity• 12 Gbps
Transmission Method• Store-And-Forward
Vlan• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Volume3,042.00 cm3
Warranty:LT.
