tp-link

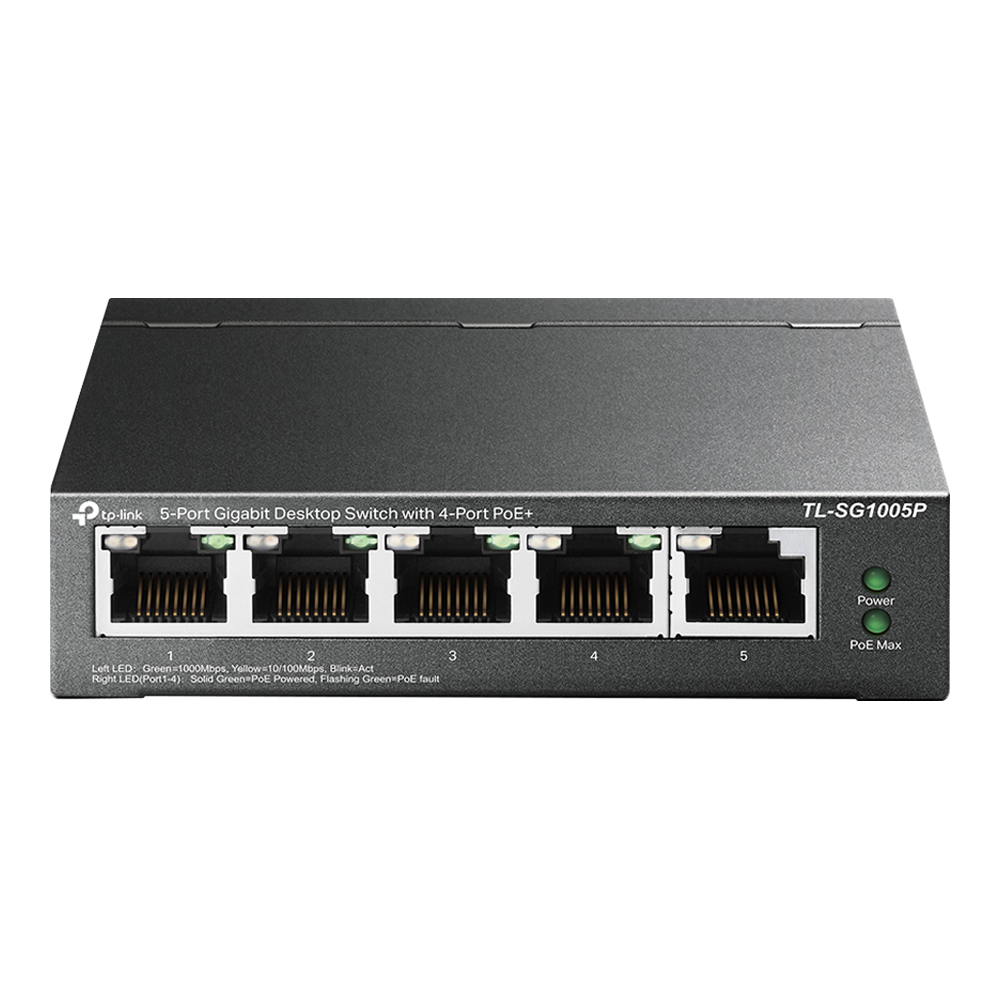

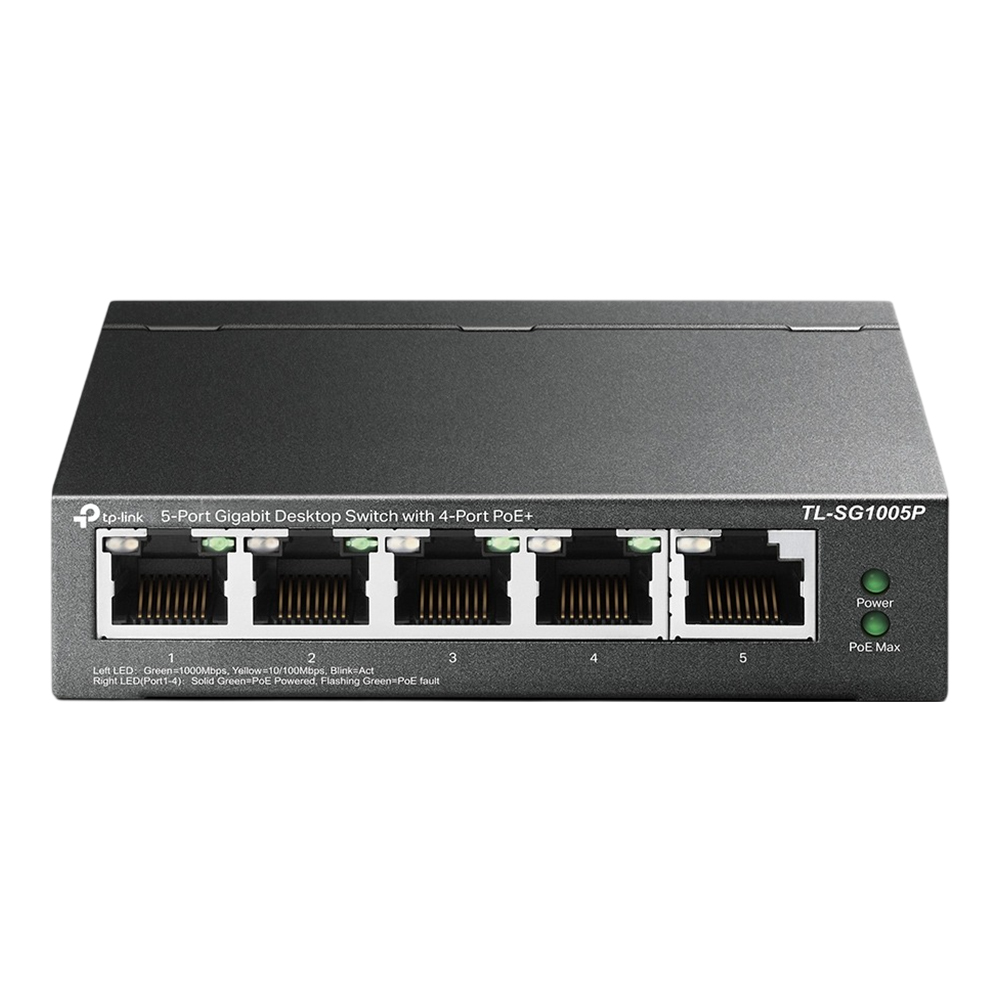

Gigabit Switching Hub 5 Port TP-LINK TL-SG1005P (5'',4 PoE)
Switch
Price
฿1,535
SKU: A0109116
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports5
WarrantyLT.
Additional Specifications
CertificationsFCC, CE, RoHS
Dimension(W x D x H) : 13.00 x 19.00 x 13.00 cm
Dimensions3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) ( W x D x H )
EnvironmentOperating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing
Fan QuantityFanless
FeaturesCompatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping
Gross Weight0.83 KG
Led IndicatorsPower, Link/Act, PoE Status, PoE Max
Mac Address Table2K
Net Weight0.83 kg
Network Interface5 x 10/100/1000Mbps RJ45 Ports ( 4 PoE Ports (Port 1 to Port 4) ) AUTO Negotiation/AUTO MDI/MDIX
Package ContentsTL-SG1005P, Power Adapter, Installation Guide
Package Dimension(W x D x H) : 13.00 x 19.00 x 13.00 cm
PoeStandard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 56W
Power Consumption63.31W (max. with 56w PoE device connected) 4.26W (max. no PoE device connected)
Power SupplyExternal Power Adapter(Output: 48VDC / 1.25A)
Standards And ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af
Transmission MethodStore-And-Forward
Volume3,211.00 cm3
Warranty:LT.
