tp-link

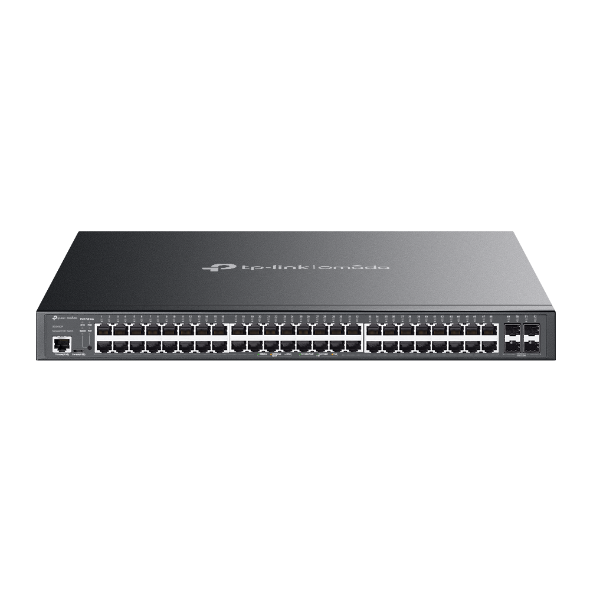

Gigabit Switching Hub 48 Port TP-LINK TL-SG3452P (17",48 PoE,+4 SFP)
Switch
Price
฿20,075
SKU: A0158983
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports48
WarrantyLT.
Additional Specifications
CertificationsCE, FCC, RoHS
Dimension(W x D x H) : 440.00 x 330.00 x 4.40 cm
Environment• Operating Temperature: 0–40 °C (32–104 °F); • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Fan Quantity3
Features• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log
Forwarding Rate77.4 Mpps
Gross Weight6.76 KG
Jumbo Frame9 KB
Mac Address Table16 K
MaterialMetal
Net Weight0 kg
Network Interface• 48× 10/100/1000 Mbps RJ45 Ports • 4× Gigabit SFP Slots • 1× RJ45 Console Port
Package Contents• TL-SG3452P Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
Package Dimension(W x D x H) : 10.00 x 53.00 x 44.00 cm
Packet Buffer Memory12 Mbit
Poe• PoE+ Ports: 48 Ports, up to 30 W per port • PoE Power Budget: 384 W*
Power Consumption• V1: 485.4 W (110 V/60 Hz) (with 384 W PD connected); 52.53 W (110 V/60 Hz) (no PD connected) • V2: 482.8 W (110 V/60 Hz) (with 384 W PD connected) • V3: 464.2 W (110 V/60 Hz) (with 384 W PD connected)
Power Supply100-240 V AC~50/60 Hz
Security• IP-MAC-Port Binding - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding - DHCPv6 Snooping - ND Detection - IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio/pps control mode • IP/Port/MAC based access control • 802.1X - Port based authentication - Mac based authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication and accountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
Standards And Protocols802.3at/af compliant
Switching Capacity104 Gbps
Usb Port• 1× Micro-USB Console Port
Vlan• VLAN Group - Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 48 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN
Volume23,320.00 cm3
Warranty:LT.
