tp-link

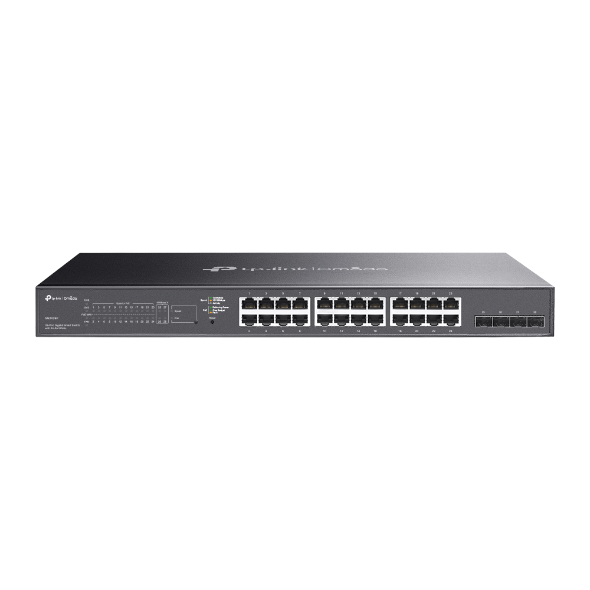

Gigabit Switching Hub 24 Port TP-LINK TL-SG2428P (18",24 PoE,+4 SFP)
Switch
Price
฿9,466
SKU: A0133563
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports24
WarrantyLT.
Additional Specifications
CertificationsCE, FCC, RoHS
Dimension(W x D x H) : 44.00 x 22.00 x 4.40 cm
EnvironmentOperating Temperature: 0–50 ℃ (32–122 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
Fan Quantity2
Forwarding Rate41.7 Mpps
Gross Weight3.90 KG
Jumbo Frame9 KB
Mac Address Table8K
ManagementOmada App Centralized Management Cloud Access
Net Weight3.22 kg
Network Interface24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4× Gigabit SFP Slots
Package ContentsPower Cord Installation Guide Rackmount Kit Rubber Feet
Package Dimension(W x D x H) : 10.00 x 52.00 x 33.00 cm
Packet Buffer Memory4.1 Mbit
PoeStandard: 802.3at/af compliant PoE+ Ports: 24 Ports
Power Consumption32.1 W (110 V/ 60 Hz with no PD connected) 308.6 W (110 V/ 60 Hz with 250 W PD connected)
Power Supply250 W
Security• AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
Standards And ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Vlan• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN • Protocol VLAN • GVRP • Voice VLAN
Volume17,160.00 cm3
Warranty:LT.
