tp-link

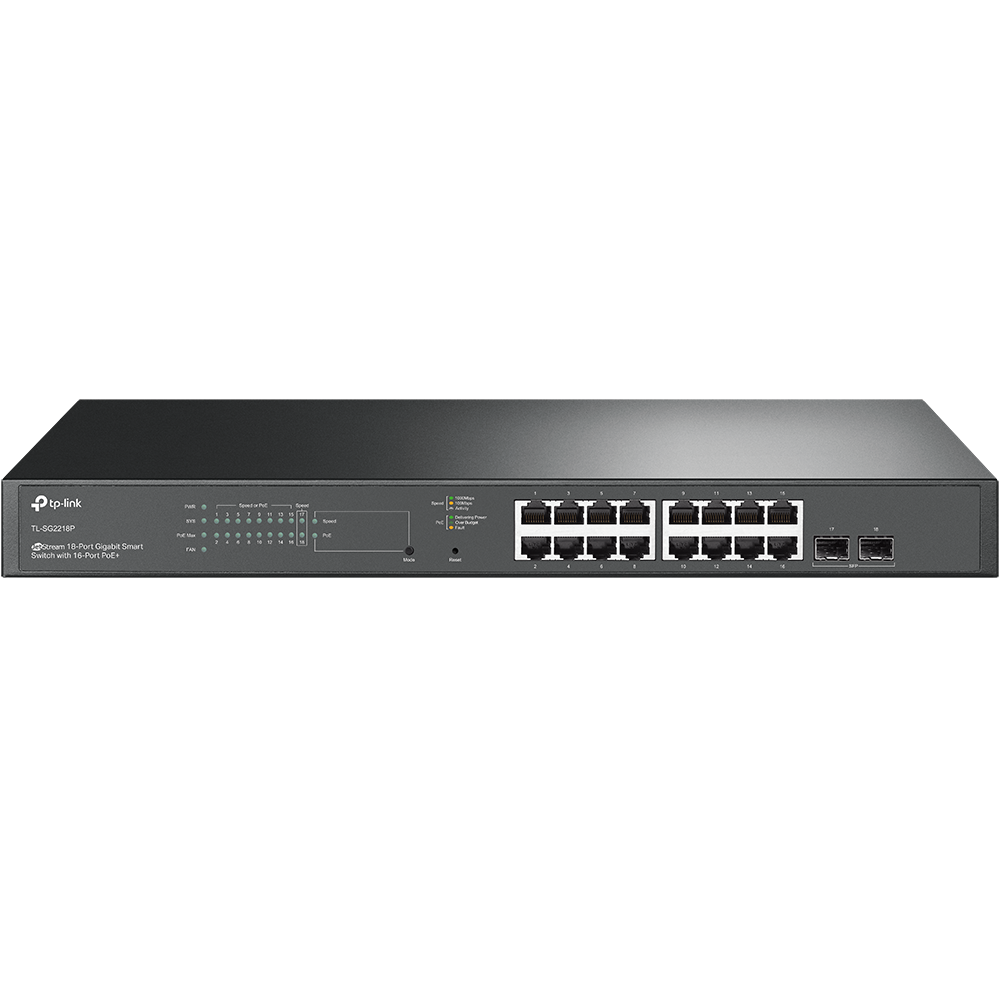

Gigabit Switching Hub 16 Port TP-LINK TL-SG2218P (17",16 PoE + 2 SFP)
Switch / N/A (Wired)
Price
฿7,921
SKU: A0181716
Technical Specifications
Network Specifications
Device TypeSwitch
Wi-Fi StandardN/A (Wired)
Speed10/100/1000
Build
Ports• 16× 10/100/1000 Mbps PoE+ RJ45 Ports ( Power Budget: 150 W), • 2× Gigabit SFP Slots
AntennaNone (Internal)
WarrantyLT.
Additional Specifications
Buffer Architecture• 4.1 Mbit
Certifications• CE, FCC, RoHS
Dimension(W x D x H) : 44.00 x 18.00 x 4.40 cm
Environment• Operating Temperature: 0–45°C (32–113 °F) • Storage Temperature: -40–7°C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Fan Quantity• Fanless
FeaturesL2 and L2+ Features • 32 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED L2 Multicast • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile)
Forwarding Rate• 26.78 Mpps
Gross Weight3.40 KG
Jumbo Frame• 9 KB
Led Indicators• YES
Mac Address Table• 8K
Management• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log
Material• Metal
Net Weight0 kg
Network Interface• 16× 10/100/1000 Mbps PoE+ RJ45 Ports ( Power Budget: 150 W) • 2× Gigabit SFP Slots
Package Contents• SG2218P • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet
Package Dimension(W x D x H) : 28.00 x 54.00 x 9.00 cm
Poe• PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port) • PoE Power Budget: 150 W
Power Supply• 100-240V AC, 50/60Hz
Security• IP-MAC-Port Binding • AAA • 802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
Standards And Protocols• 802.3 i/u/ab,802.3 af/at,802.3 x
Switching Capacity• 36Gbps
Vlan• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN
Volume13,608.00 cm3
Warranty:LT.
