tp-link

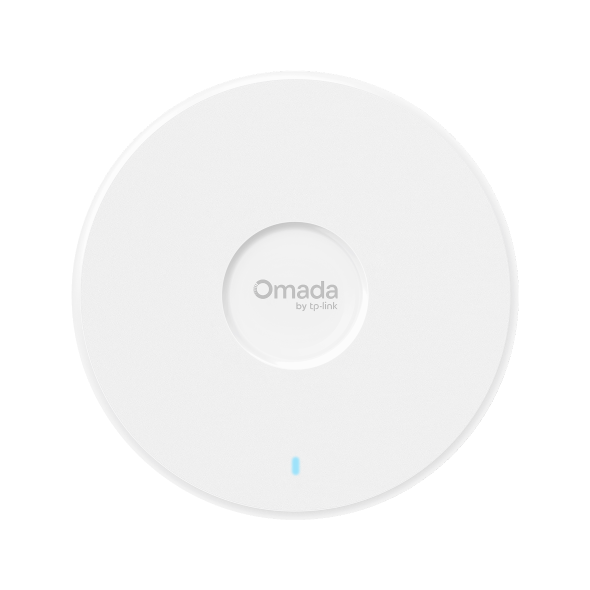

Access Point TP-LINK Omada (EAP770) Wireless BE9300
Access Point / BE9300
Price
฿9,167
SKU: A0182454
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardBE9300
Speed10/100/1000
Build
WarrantyLT.
Additional Specifications
Antennas• 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi
Button• Reset
Certification• CE, FCC, RoHS, IC
Certifications• CE, FCC, RoHS, IC
Data Rate• 688 Mbps (2.4 GHz) • 2882 Mbps (5 GHz) • 5765 Mbps (6 GHz)
Dimension(W x D x H) : 22.00 x 22.00 x 3.25 cm
Environment• Operating Temperature: 0 °C–40 °C (32 °F–104 °F) • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F) • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;
Features• Concurrent Clients 380+ • Captive Portal Authentication? • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Frequency• 6 GHz, 5 GHz, and 2.4 GHz
Gross Weight1.40 KG
Interface• 1× 2.5G Ethernet Port
LedsYES
Management• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller • Web-based Management
Net Weight0 kg
Package Contents• Omada Ceiling Mount Accsee Point EAP770 • Installation Guide • Power Adapter • Ceiling/Wall/Junction Box Mounting Kits
Package Dimension(W x D x H) : 26.00 x 28.00 x 9.00 cm
Power Consumption• 24.05 W (For PoE) • 20.92 W (For DC)
Power Supply• 12V/2.5A DC
Power Supply Poe• 802.3at PoE
Standards• IEEE 802.11 a/b/g/n/ac/ax/be
Transmit Receive• < 20 dBm (2.4 GHz, EIRP) • < 23 dBm (5 GHz, band 1&band 2, EIRP) • < 28 dBm (5 GHz, band 3, EIRP) • < 23dBm (6 GHz, EIRP)
Volume6,552.00 cm3
Wireless Functions• MLO‡ • 4K-QAM‡ • MU-MIMO‡ • 320 MHz Bandwidth‡ • Mesh? • Seamless Roaming(802.11k/v/r)? • BBS Coloring‡ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Warranty:LT.
