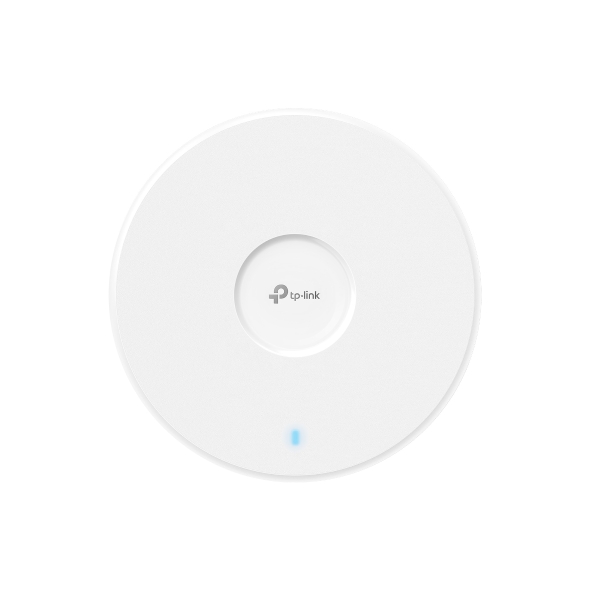

Access Point TP-LINK Omada (EAP723) Wireless BE5000 WIFI7
Access Point / Wi-Fi 7 (802.11be/ax/ac/n/a/b/g)
Price
฿4,213
SKU: A0168332
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardWi-Fi 7 (802.11be/ax/ac/n/a/b/g)
Speed• 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Build
Ports• 1× 2.5G Ethernet Port
Antenna• 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi
WarrantyLT.
Additional Specifications
Antennas• 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi
Button• Reset
Certification• CE, FCC, RoHS, IC
Data Rate• 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Dimension(W x D x H) : 16.00 x 16.00 x 3.67 cm
Environment• Operating Temperature: 0 °C–40 °C (32 °F–104 °F) • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F) • Operating Humidity: 10%–90% non-condensing • Storage Humidity: 5%–90% non-condensing;
Features• 240 MHz bandwidth enables many more simultaneous transmissions • Multi-RUs ensure the high performance of your network • Advanced Functions: Centralized management, Mesh, and Seamless Roaming
Frequency• 2.4 GHz and 5 GHz
Gross Weight0.70 KG
Interface• 1× 2.5G Ethernet Port
Leds• ON/OFF Control
Management• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Net Weight0 kg
Operation Mode• Access Point
Package Contents• EAP723 • Installation Guide • Ceiling/Wall Mounting Kit
Package Dimension(W x D x H) : 22.00 x 24.00 x 6.50 cm
Power Consumption• 19.5 W (For PoE) • 16.8 W (For DC)
Power Supply• 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
Power Supply Poe• Support
Range• Coverage : 140m(1500 ft²)
Standards• IEEE 802.11 a/b/g/n/ac/ax/be
Transmit Receive• < 25 dBm (2.4GHz) • < 25 dBm (5GHz, band 1&band 4) • < 24 dBm (5GHz, band 2&band 3)
Volume3,432.00 cm3
Wireless Functions• 4K-QAM‡ • Seamless Roaming • MU-MIMO‡ • EHT240‡ • Mesh? • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Warranty:LT.
