tp-link

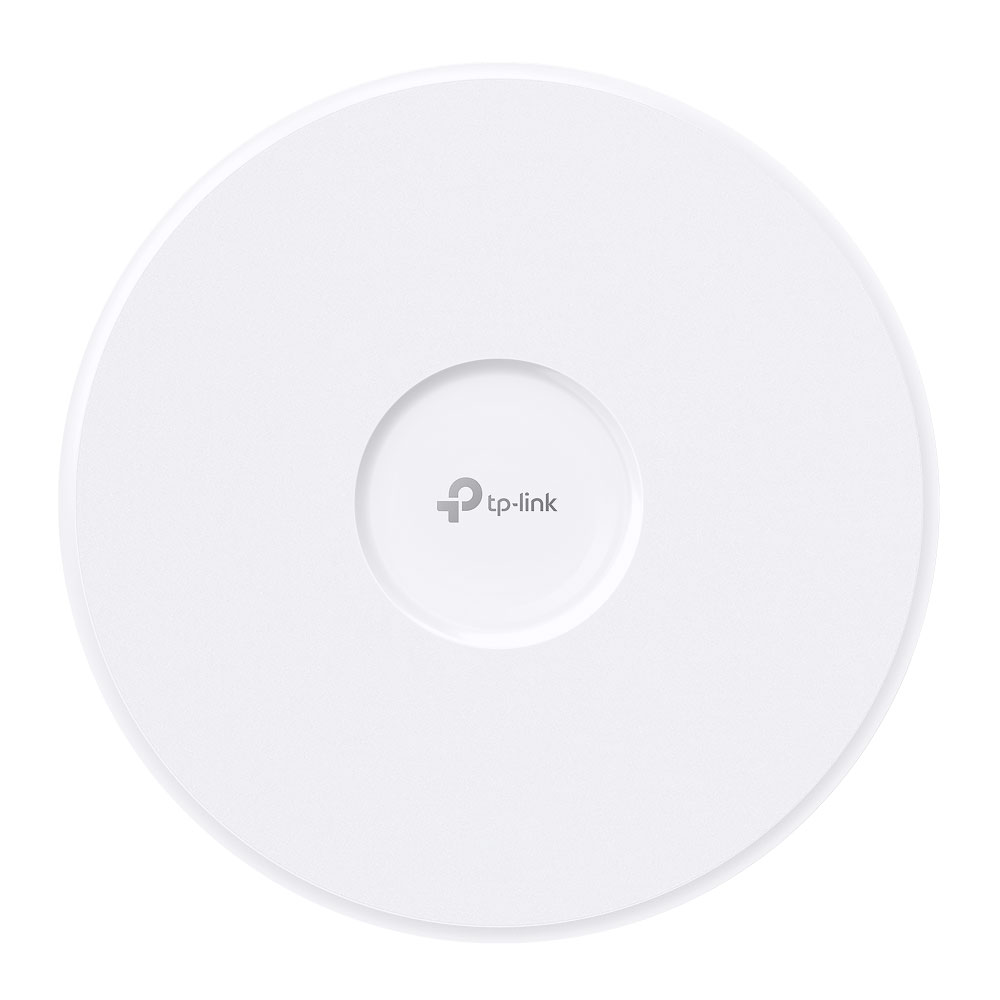

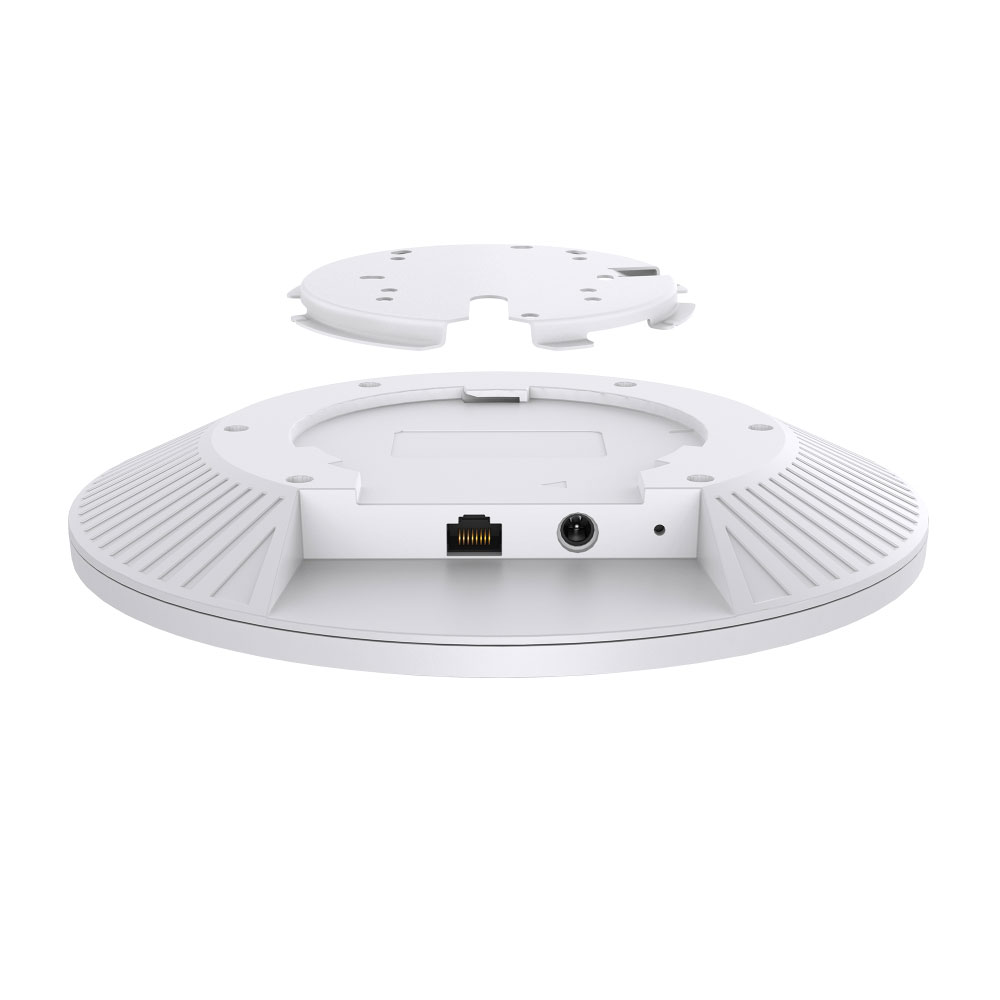

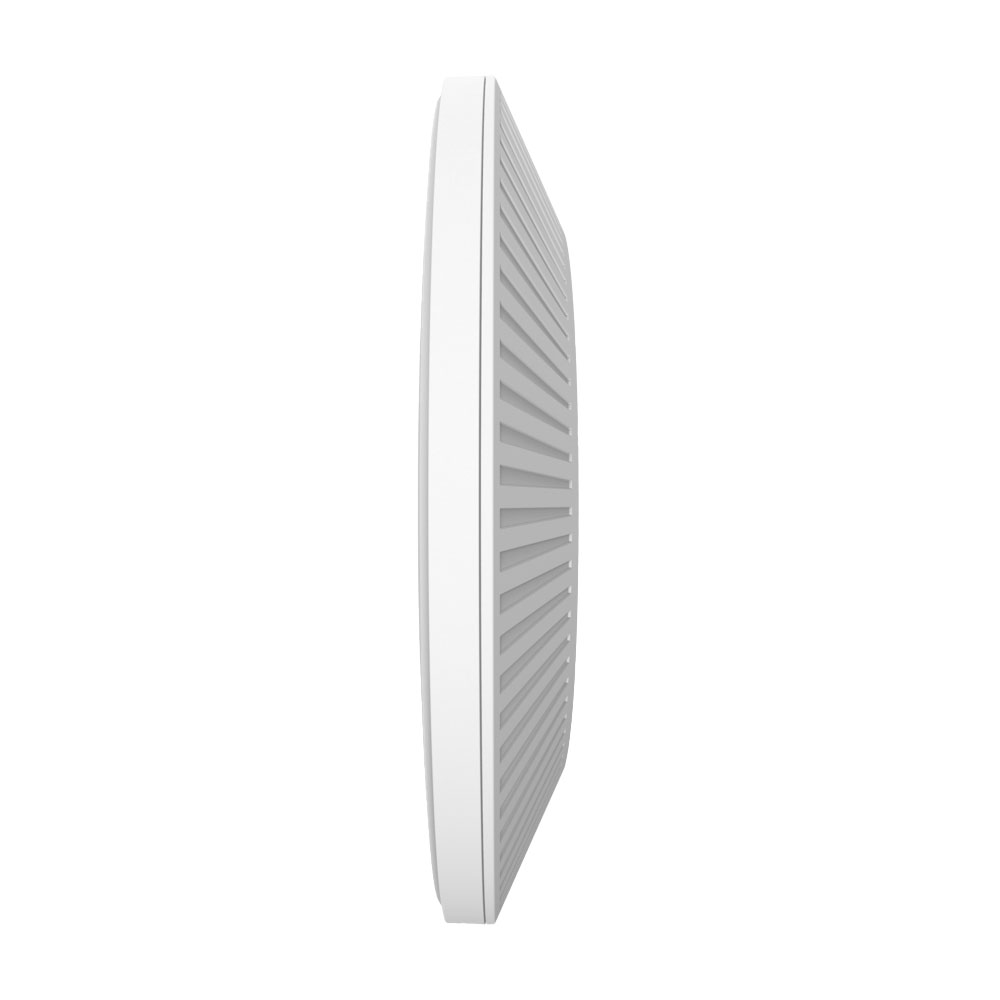

Access Point TP-LINK (EAP773) Wireless BE11000 WiFi 7
Access Point / BE11000
Price
฿25,286
SKU: A0182906
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardBE11000
Speed10/100/1000
Build
WarrantyLT.
Additional Specifications
Antennas• 2.4 GHz: 2× 3.0 dBi • 5 GHz: 2× 3.0 dBi • 6 GHz: 2× 3.0 dBi
Button• Reset
Certification• CE, FCC, RoHS, IC
Certifications• CE, FCC, RoHS, IC
Data Rate• 574 Mbps (2.4 GHz) • 4320 Mbps (5 GHz) • 5760 Mbps (6 GHz)
Dimension(W x D x H) : 22.00 x 22.00 x 3.20 cm
Environment• Operating Temperature: 0 °°C–40 °C (32 °F–104 °°F) • Storage Temperature: -40 °°C–70 °C (-40 °F–158 °°F) • Operating Humidity: 10%–90% non-condensing • Storage Humidity: 5%–90% non-condensing
Features• Captive Portal Authentication • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Frequency• 2.4 GHz • 5 GHz • 6 GHz
Interface• 1× 10G Ethernet Port
Leds• YES
Management• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Net Weight0 kg
Package Contents• EAP773 • Installation Guide • Ceiling/Wall Mounting Kits Note: Power Adapter is NOT included.
Power Consumption• 25.94 W (802.3bt, full functionality) • 22.57 W (12/2.5A, full functionality) • 23.4 W (802.3at decrease 6GHz Power) • 10.1 W (802.3af, radio off, only main chip and LAN working)
Power Supply• 12V/2.5A DC
Power Supply Poe• 802.3bt PoE
Range• 140m (1500 ft²)§
Standards• IEEE 802.11 a/b/g/n/ac/ax/be
Transmit Receive• < 25 dBm (2.4 GHz) • < 25 dBm (5 GHz) • < 23 dBm (6 GHz)
Wireless Functions• MLO • 4K-QAM • MU-MIMO • HE320 • Mesh • BBS Coloring • OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Warranty:LT.
