tp-link

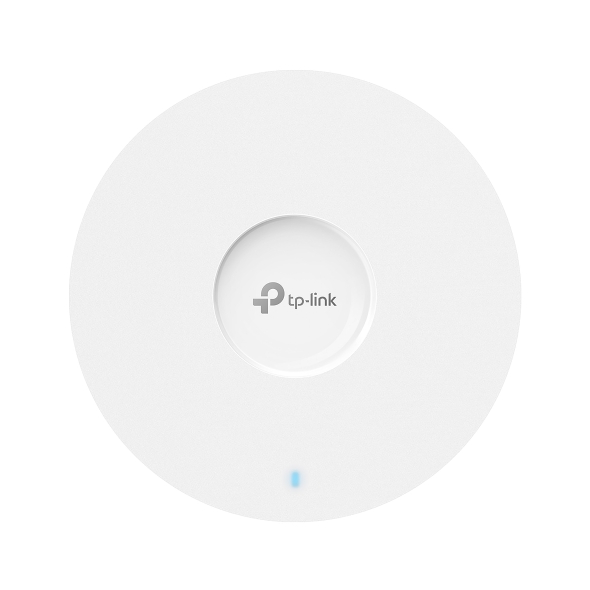

Access Point TP-LINK (EAP670) Wireless AX5400 Dual Band Gigabit WiFi 6
Access Point / Wi-Fi 6 (802.11ax/ac/n/a/b/g)
Price
฿5,449
SKU: A0143699
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardWi-Fi 6 (802.11ax/ac/n/a/b/g)
Speed5 GHz: Up to 4804 Mbps / 2.4 GHz: Up to 574 Mbps
Build
Ports1 × 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
AntennaInternal Omni - 2.4 GHz: 2× 4 dBi - 5 GHz: 4× 5 dBi
WarrantyLT.
Additional Specifications
AntennasInternal Omni - 2.4 GHz: 2× 4 dBi - 5 GHz: 4× 5 dBi
ButtonReset
CertificationCE, FCC, RoHS
Data Rate5 GHz: Up to 4804 Mbps 2.4 GHz: Up to 574 Mbps
Dimension(W x D x H) : 24.30 x 24.30 x 6.40 cm
EnvironmentOperating Temperature : 0 - 40°C (32 - 104°F) Storage Temperature : -40 - 70°C (-40 - 158°F) Operating Humidity : 10 - 90% RH non-condensing Storage Humidity : 5 - 90% RH non-condensing
Frequency2.4 GHz 5 GHz
Gross Weight1.30 KG
Interface1 × 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
ManagementOmada App Centralized Management Cloud Access Email Alerts LED ON/OFF Control Management MAC Access Control SNMP v1, v2c, v3 System Logging Local/Remote Syslog : Local/Remote Syslog SSH Web-based Management : HTTP/HTTPS L3 Management Multi-site Management Management VLAN
Net Weight0 kg
Operation ModeAccess Point
Package ContentsEAP670 Power Adapter Ceiling/Wall Mounting Kits Installation Guide
Package Dimension(W x D x H) : 30.00 x 30.00 x 8.00 cm
Power Supply12 VAC
Power Supply Poe802.3at PoE
StandardsIEEE 802.11ax/ac/n/g/b/a
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Transmit ReceiveCE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, , band1 & band2, EIRP) <30 dBm(5 GHz, , band3, EIRP) FCC: <25 dBm (2.4 GHz) <28 dBm (5 GHz)
Volume7,200.00 cm3
Wireless Functions1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO HE160 (160 MHz Bandwidth)‡ Seamless Roaming § Omada Mesh§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Warranty:LT.
