tp-link

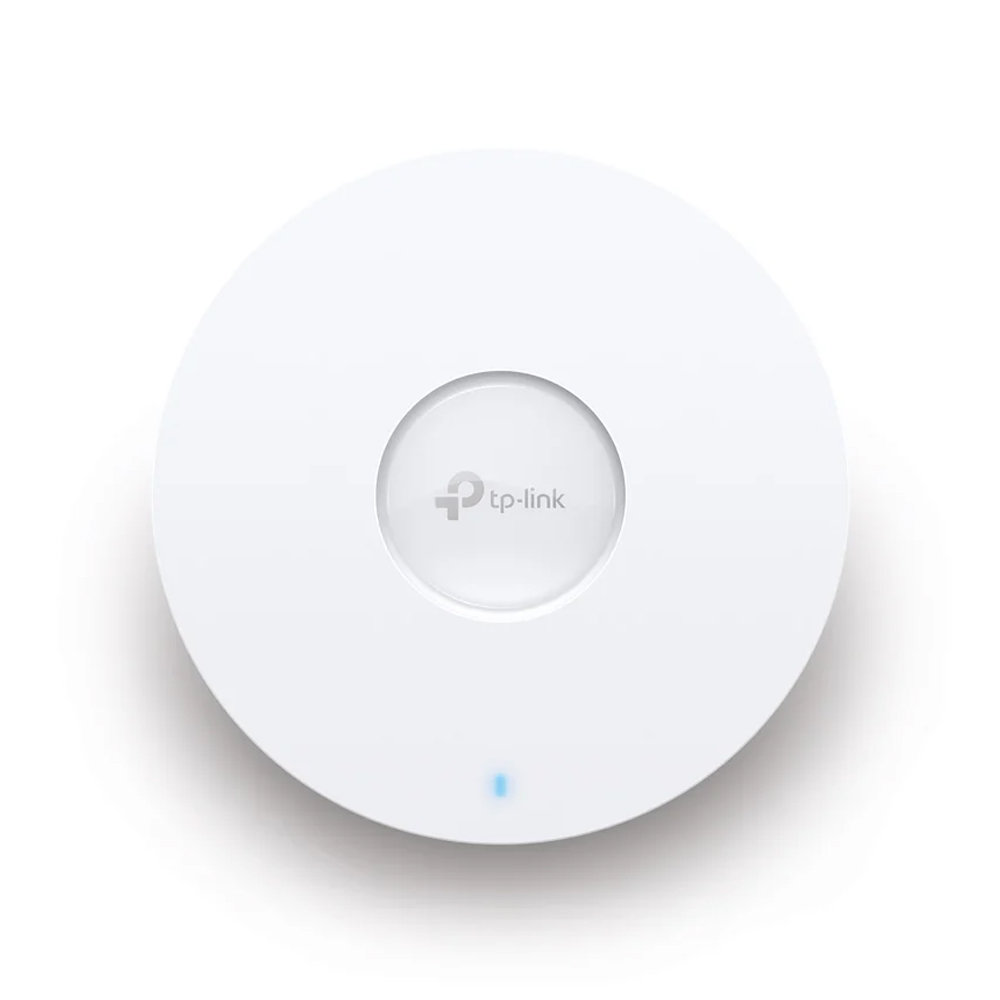

Access Point TP-LINK (EAP660-HD V2.0) Wireless AX3600 Gigabit WiFi 6
Access Point / Wi-Fi 6 (802.11ax/ac/n/a/b/g)
Price
฿9,528
SKU: A0148195
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardWi-Fi 6 (802.11ax/ac/n/a/b/g)
Speed• 5 GHz: Up to 2402 Mbps / • 2.4 GHz: Up to 1148 Mbps
Build
Ports1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
AntennaInternal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi
WarrantyLT.
Additional Specifications
AntennasInternal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi
ButtonReset
CertificationCE, FCC, RoHS
Data Rate• 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 1148 Mbps
Dimension(W x D x H) : 24.30 x 24.30 x 6.40 cm
Environment• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Frequency2.4 GHz and 5 GHz
Gross Weight1.46 KG
Interface1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
ManagementOmada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Net Weight0 kg
Package Contents• EAP660 HD • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide
Package Dimension(W x D x H) : 30.00 x 30.00 x 8.00 cm
Power Consumption• EU: 18.5 W • US: 21.5 W35
Power Supply• 802.3at PoE • 12 V DC
Power Supply Poe802.3at PoE
StandardsEEE 802.11ax/ac/n/g/b/a
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Transmit Receive• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, EIRP) • FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz)
Volume7,200.00 cm3
Wireless Functions• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming? • Omada Mesh? • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Warranty:LT.
