tp-link

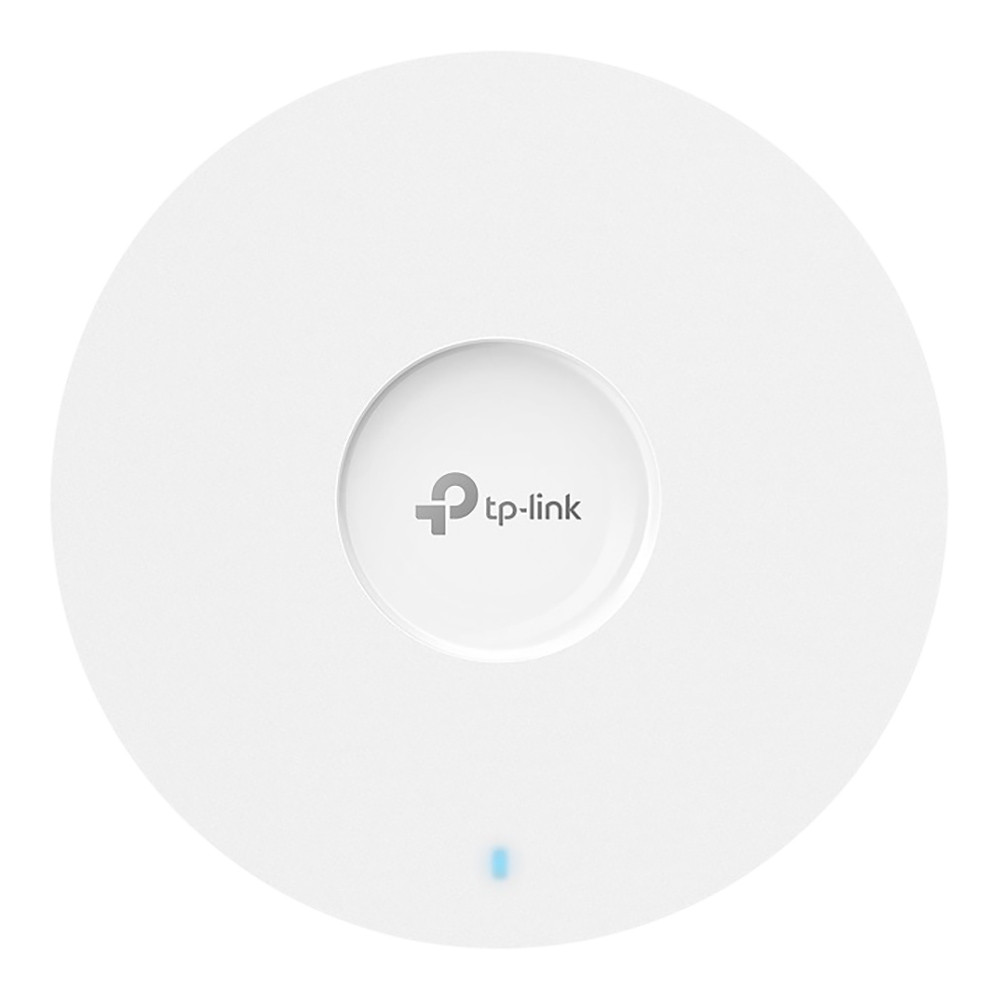

Access Point TP-LINK (EAP653) Wireless AX3000 Dual Band Gigabit WiFi 6
Access Point / Wi-Fi 6 (802.11ax/ac/n/a/b/g)
Price
฿3,183
SKU: A0145671
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardWi-Fi 6 (802.11ax/ac/n/a/b/g)
SpeedN/A
Build
Ports1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
AntennaInternal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
WarrantyLT.
Additional Specifications
AntennasInternal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
ButtonReset
CertificationCE, FCC, RoHS
Dimension(W x D x H) : 16.00 x 16.00 x 3.36 cm
Environment• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Frequency2.4 GHz and 5 GHz
Gross Weight0.70 KG
Interface1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
ManagementOmada App :Yes Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller Cloud Access : Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) Email Alerts : Yes LED ON/OFF Control : Yes Management MAC Access Control : Yes SNMP : v1, v2c, v3S ystem Logging Local/Remote Syslog : Local/Remote Syslog SSH :Yes Web-based Management ; HTTP/HTTPS L3 Management ; Yes Multi-site Management : Yes Management VLAN : Yes Zero-Touch Provisioning : Yes . Requiring the use of Omada Cloud-Based Controller.
Net Weight0 kg
Package Contents• EAP653 • Ceiling/Wall Mounting Kits • Installation Guide
Package Dimension(W x D x H) : 24.50 x 23.00 x 6.50 cm
Power Consumption• EU: 13.5 W • US: 14.7 W
Power Supply12V DC
Power Supply Poe• 802.3at PoE • 12V DC (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC). Note: DC adapter is not included in the package, and is sold separately.
StandardsIEEE 802.11ax/ac/n/g/b/a
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Transmit Receive• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)
Volume3,662.75 cm3
Wireless Functions• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Warranty:LT.
