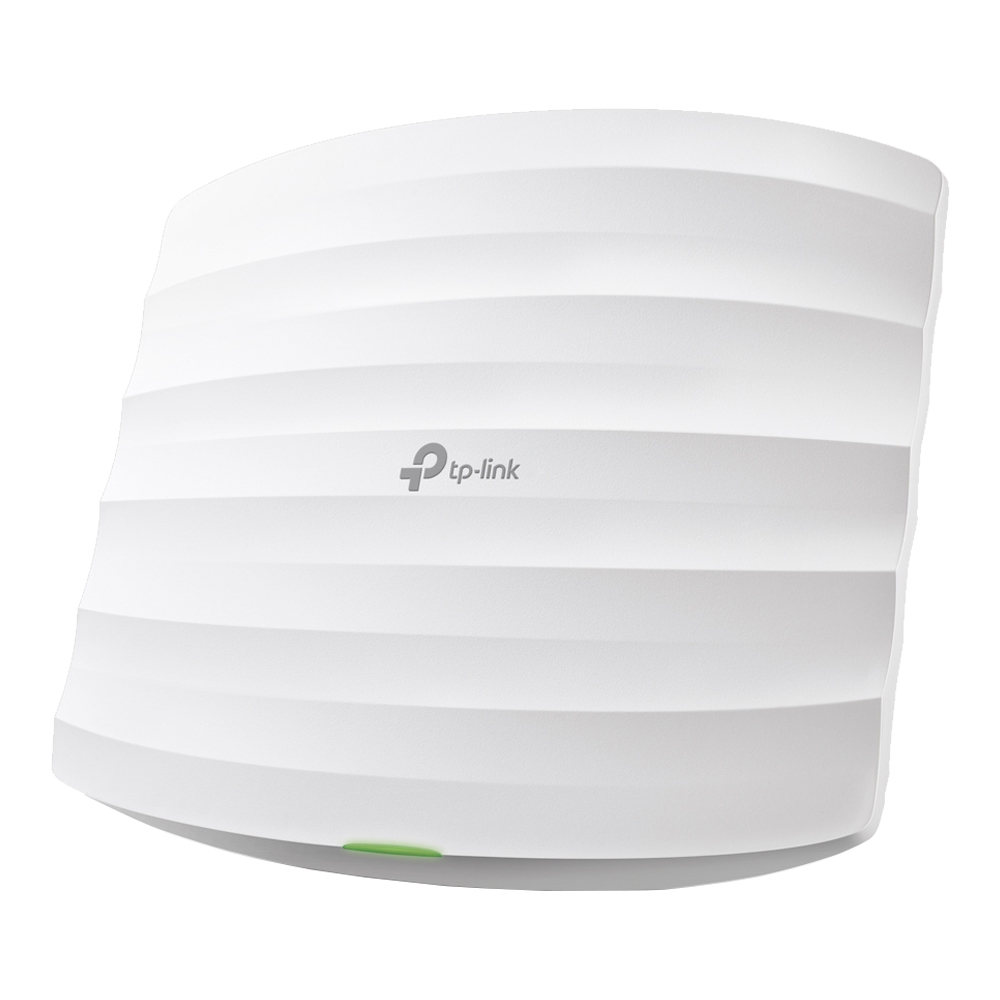

Access Point TP-LINK (EAP225) Wireless AC1350 Dual Band Gigabit
Access Point / AC1350
Price
฿2,420
SKU: A0101448
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardAC1350
Speed10/100/1000
Build
Antenna3 Internal Omni 2.4GHz: 4dBi 5GHz: 5dBi
WarrantyLT.
Additional Specifications
ButtonReset
CertificationsCE, FCC, RoHS
Data Rate5GHz : Up to 867Mbps 2.4GHz : Up to 450Mbps
Data Rates5GHz : Up to 867Mbps 2.4GHz : Up to 450Mbps
Dimension(W x D x H) : 20.55 x 18.15 x 3.71 cm
EnvironmentOperating Temperature: 0°C~60°C (32°F~144°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Frequency Range2.4GHz and 5GHz
Gross Weight0.96 KG
Interface1 x Gigabit Ethernet (RJ-45) Port (Support IEEE802.3af PoE and Passive PoE)
Net Weight0 kg
Package ContentsAC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 Passive PoE Adapter Power Cord Mounting Kits Installation Guide
Package Dimension(W x D x H) : 23.00 x 36.00 x 7.00 cm
Poe802.3af PoE and passive PoE
Power Supply802.3af/A PoE or 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Standards And ProtocolIEEE 802.11ac/n/g/b/a
Standards And ProtocolsIEEE 802.11ac/n/g/b/a
Volume5,796.00 cm3
Wireless SecurityCaptive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support
Wireless Transmit PowerCE: ≤20dBm(2.4GHz,EIRP) ≤23dBm(5GHz,EIRP) FCC: ≤24dBm(2.4GHz) ≤22dBm(5GHz)
Warranty:LT.
