tp-link

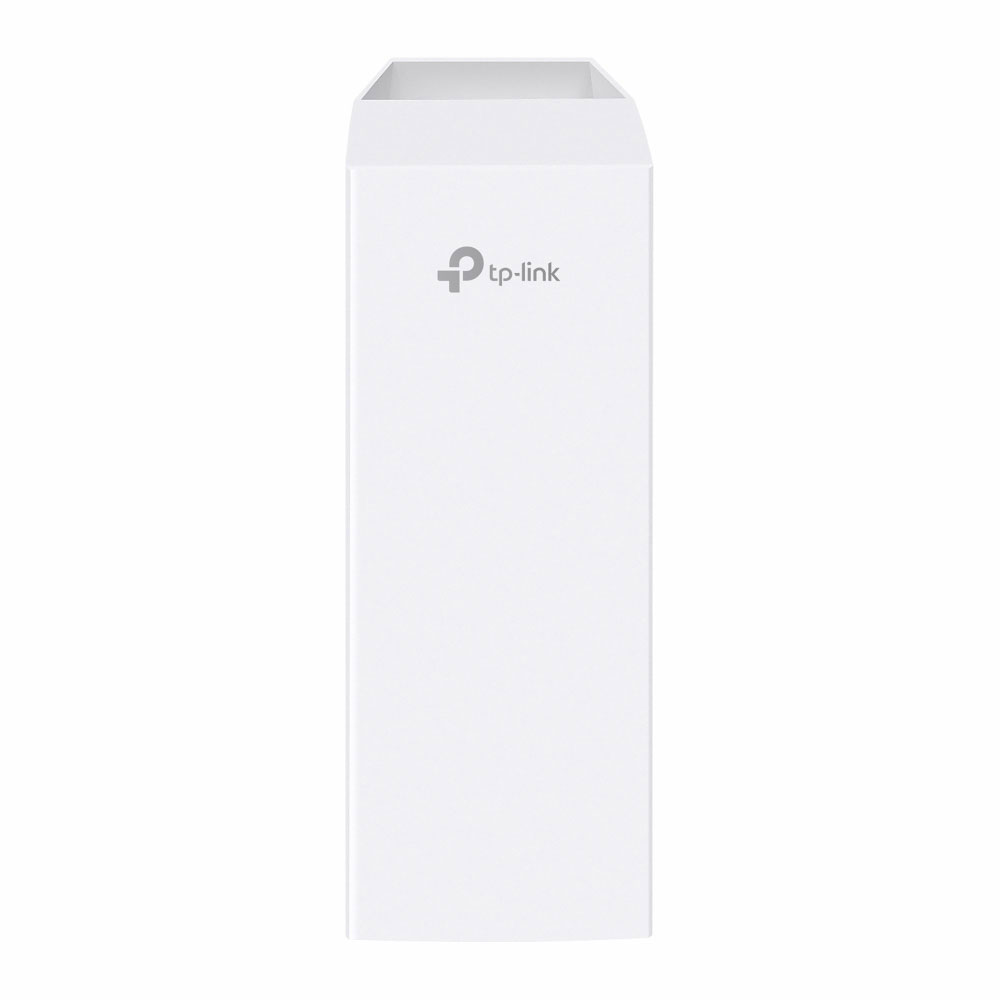

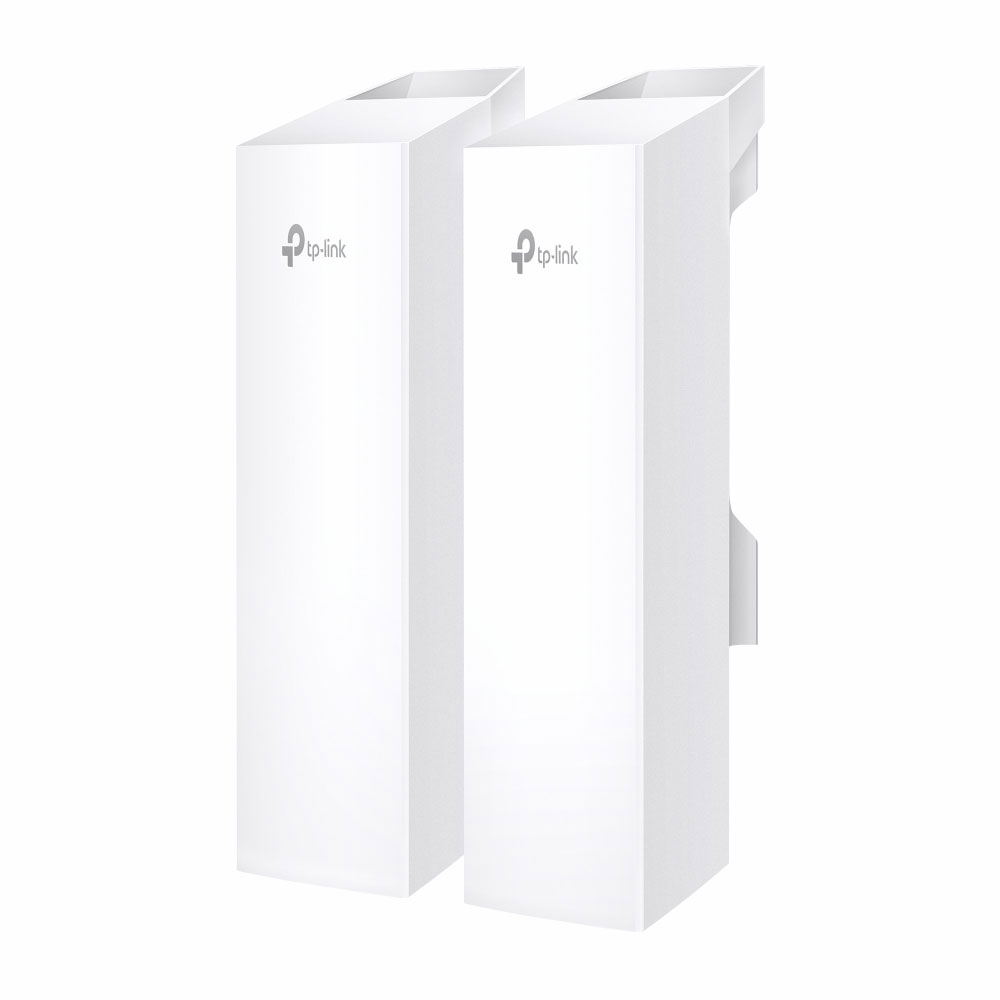

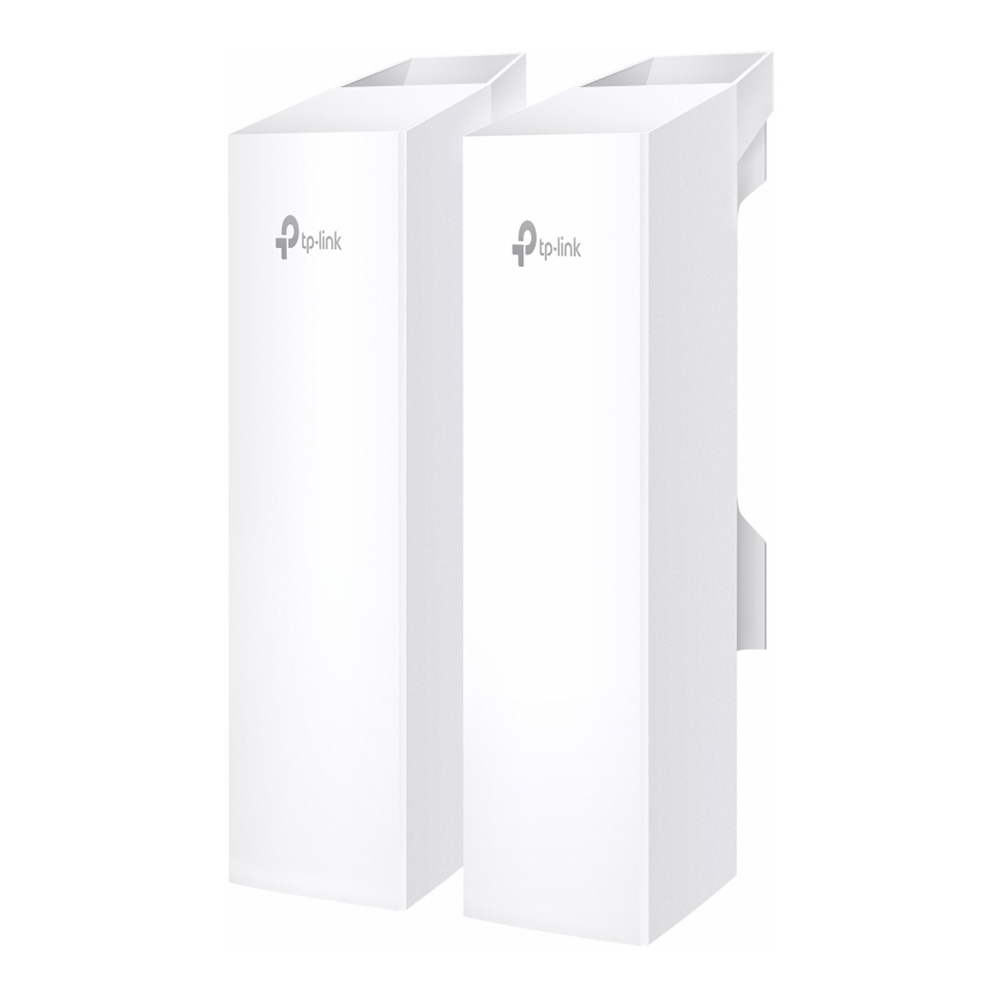

Access Point Outdoor TP-LINK (Omada EAP215-Bridge KIT)
Access Point / AC867
Price
฿4,378
SKU: A0184227
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardAC867
Speed10/100/1000
Build
Warranty3Y
Additional Specifications
Antennas• Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 14.0 dBi
Button• YES
Certification• CE, FCC, RoHS
Certifications• CE, FCC, RoHS
Data Rate• 5 GHz: Up to 867 Mbps
Dimension(W x D x H) : 7.90 x 6.00 x 27.60 cm
Environment• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
Features• Up to 3.1 mi (5 km) Wi-Fi Transmission • Auto-Pairing with Preconfigured Kit • Effortless App-Guided Alignment • Instant Multi-Bridge Auto-Pairing • IP65 Weatherproof & 6 kV Lightning Protection
Frequency• 5 GHz

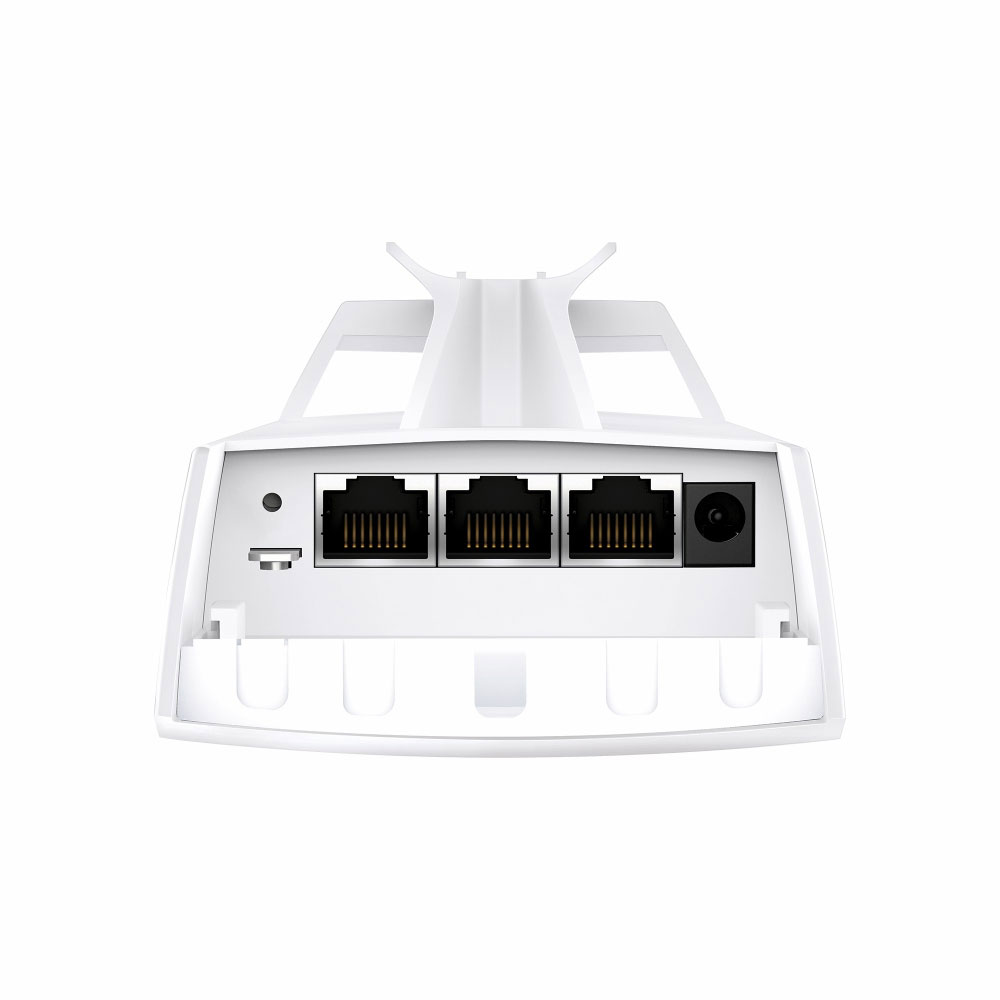

Interface• 3x Gigabit Ethernet Ports
Leds• YES
Management• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Net Weight0 kg
Package Contents• EAP215-Bridge KIT • Installation Guide • Mounting Kit
Power Consumption• 11.5W
Power Supply• 12V DC
Power Supply Poe• 802.3af PoE (1,2pins; 3,6pins) • 24V Passive PoE (+4,5pins; -7,8pins)
Range• Transmission Distance : 5,000 m (3.1 mi)
Standards• IEEE 802.11 a/n/ac
Wireless Functions• MU-MIMO: 5G 2x2 MU-MIMO DL • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast
Warranty:3Y
