tp-link

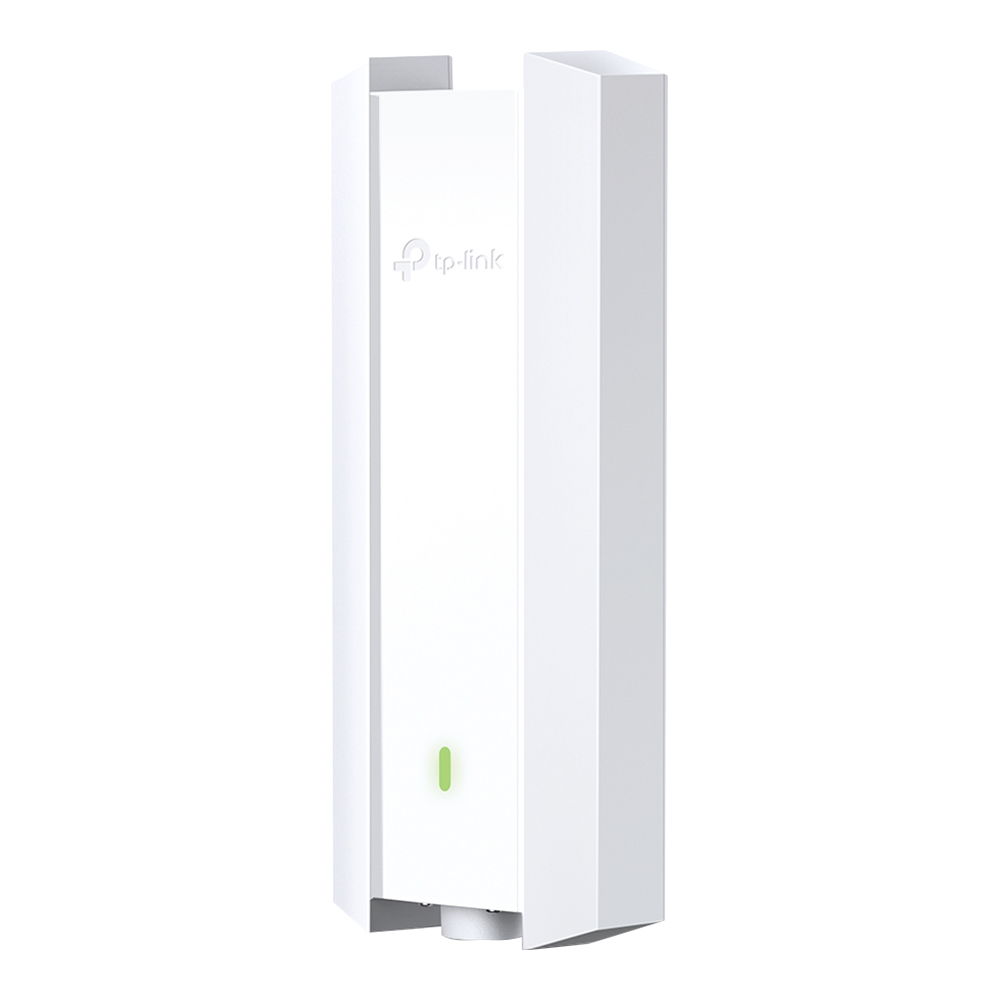

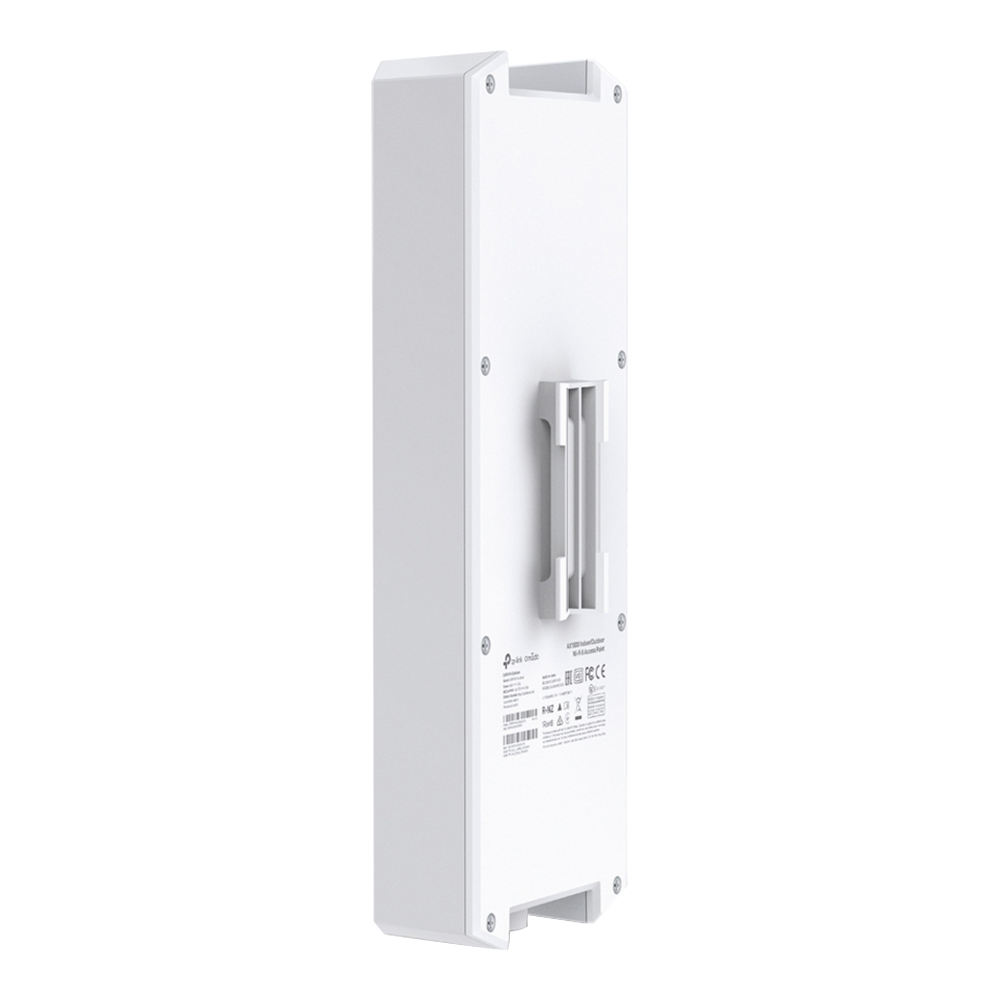

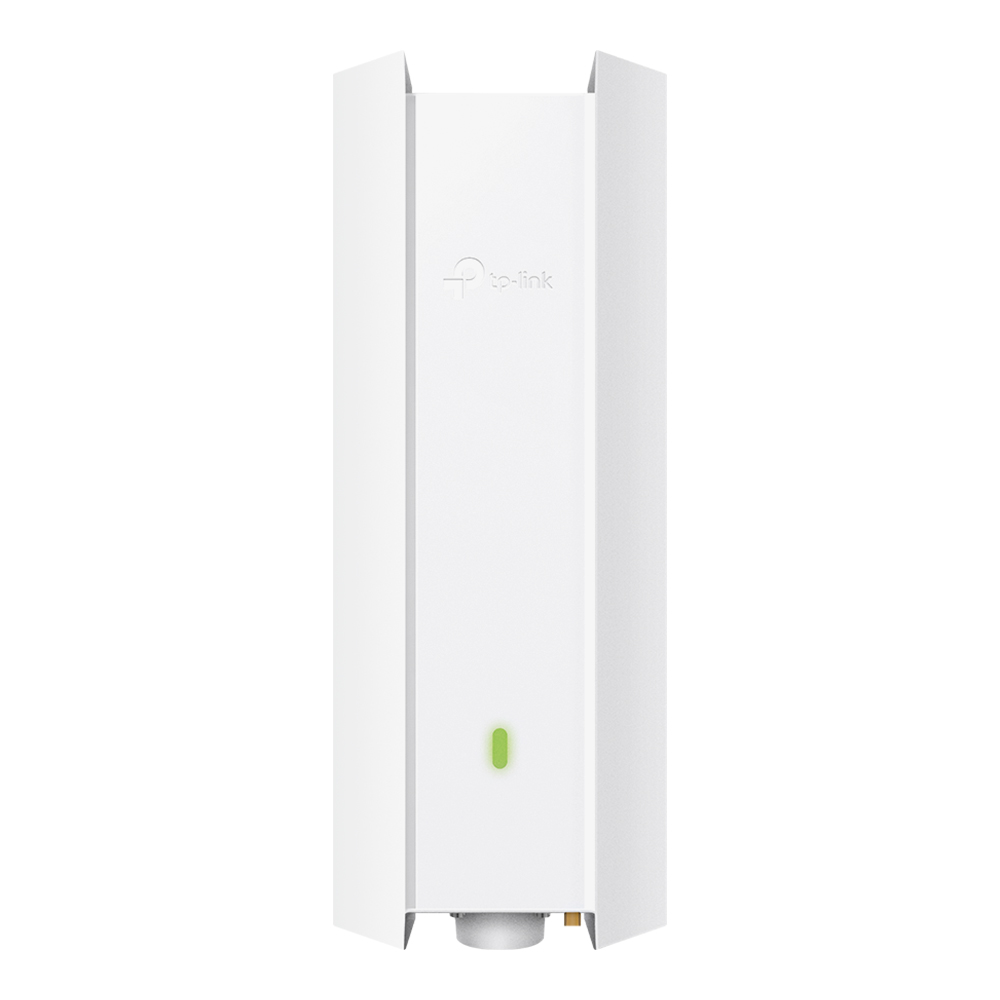

Access Point Outdoor TP-LINK (EAP610-Outdoor) Wireless AX1800 Gigabit
Access Point / AX1800
Price
฿4,892
SKU: A0144541
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardAX1800
Speed10/100/1000
Build
Antenna• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Warranty3Y
Additional Specifications
ButtonReset
CertificationsCE, FCC, RoHS
Data Rate• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Data Rates• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Dimension(W x D x H) : 10.65 x 28.40 x 5.68 cm
Environment• Operating Temperature: -30–70 ? (-22–158 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Frequency Range2.4 GHz, 5 GHz
Gross Weight1.40 KG
Interface1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Net Weight0 kg
Package Contents• Access Point EAP610-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Waterproof Kits • Waterproof Antenna • Installation Guide
Package Dimension(W x D x H) : 24.00 x 32.50 x 6.50 cm
Poe802.3at PoE
Power Consumption• EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE)
Power Supply• 802.3at PoE • 48V/0.5A Passive PoE (PoE Adapter Included)
Standards And ProtocolIEEE 802.11ax/ac/n/g/b/a
Standards And ProtocolsIEEE 802.11ax/ac/n/g/b/a
Volume5,070.00 cm3
Wireless Security• Captive Portal Authentication** • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Wireless Transmit Power• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Warranty:3Y
