tp-link

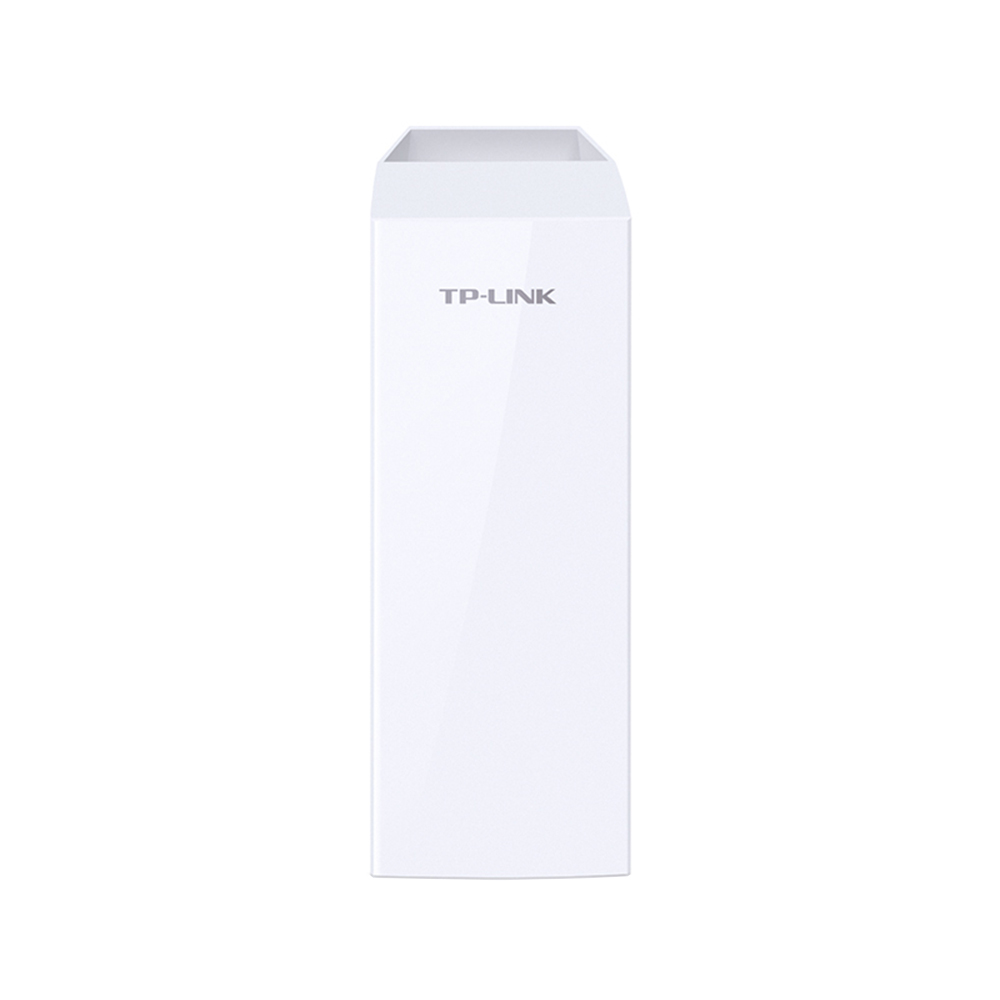

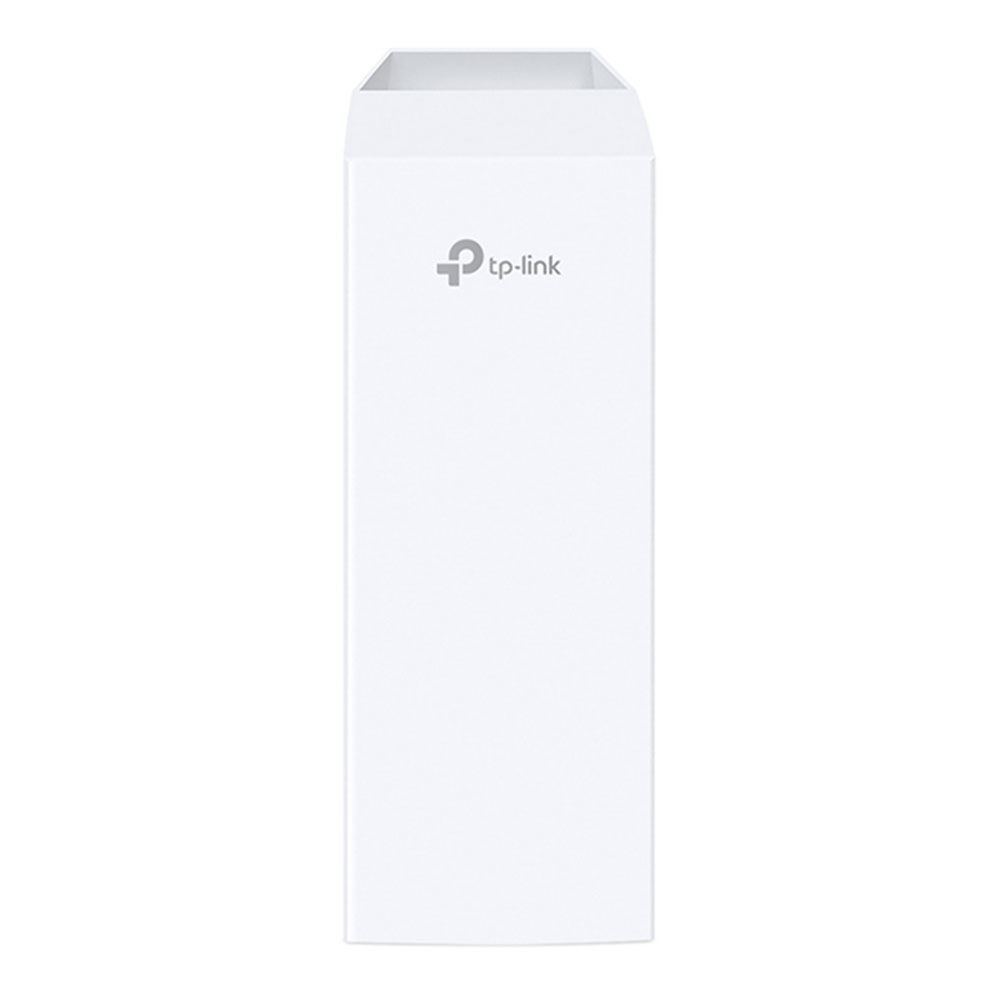

Access Point Outdoor TP-LINK (CPE510) Wireless N300 (5GHz) 13dBi
Access Point / N300
Price
฿2,008
SKU: A0091188
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardN300
Speed10/100
Build
AntennaBuilt-in 13dBi 2x2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane) Note : For more details, please refer to datasheet
Warranty3Y
Additional Specifications
CertificationsCE, FCC, RoHS, IPX5
Data RateUp to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Data RatesUp to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Dimension(W x D x H) : 25.00 x 41.00 x 3.50 cm
Dimensions224 x 79 x 60 mm
EnvironmentOperating Temperature: -30°C~70°C (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
Frequency Range5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Gross Weight0.70 KG

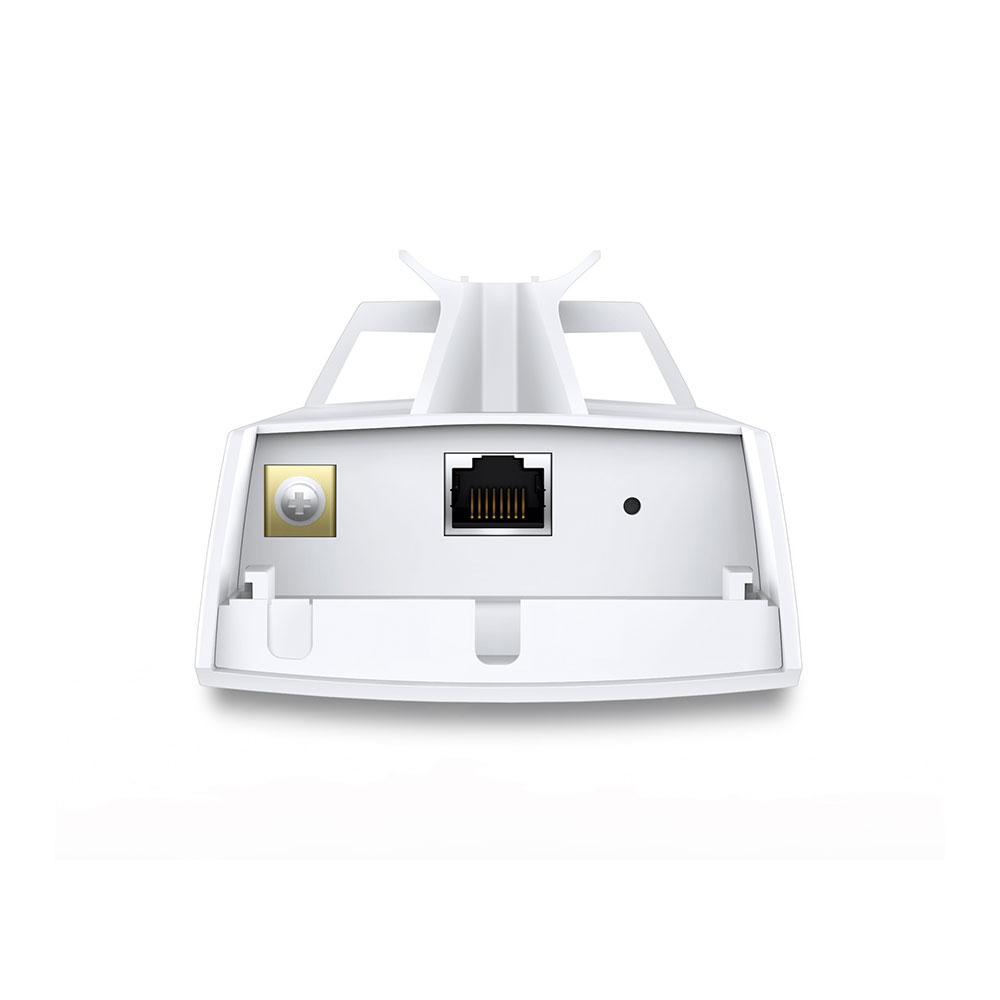

Interface1 x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 x Grounding Terminal 1 x Reset Button
Net Weight0.7 kg
Package ContentsOutdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
Package Dimension(W x D x H) : 25.00 x 41.00 x 3.50 cm
PoePOE ADAPTER FEATURES Dimensions(W x D x H) : 110*57*33.5mm Input Current : 0.8A Max @ 100VAC Input Voltage : 100VA~240VAC @ 50Hz~60Hz Output : 24VDC, 1.0A Max / +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Efficiency : >80% Output Voltage : 24VDC(+4,5pins; -7,8pins) Input : 100-240VAC, 50/60Hz Power Status LEDs : 0~0.8A: Green / 0.8A~1.0A: Red Certifications : CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark Interfaces : - 1 x AC Jack with Earth Ground - 1 x 10/100/1000Mbps Shielded Ethernet Port (Power + Data) - 1 x 10/100/1000Mbps Shielded Ethernet Port (Data) Button : Remote Reset Button
Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range : 16-27VDC Power Consumption 10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Standards And ProtocolIEEE 802.11a/n (with Pharos MAXtream disabled) Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)
Standards And ProtocolsIEEE 802.11a/n (with Pharos MAXtream disabled) Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)
Volume3,587.50 cm3
Wireless Transmit Power23dBm/200mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
Warranty:3Y
