tp-link

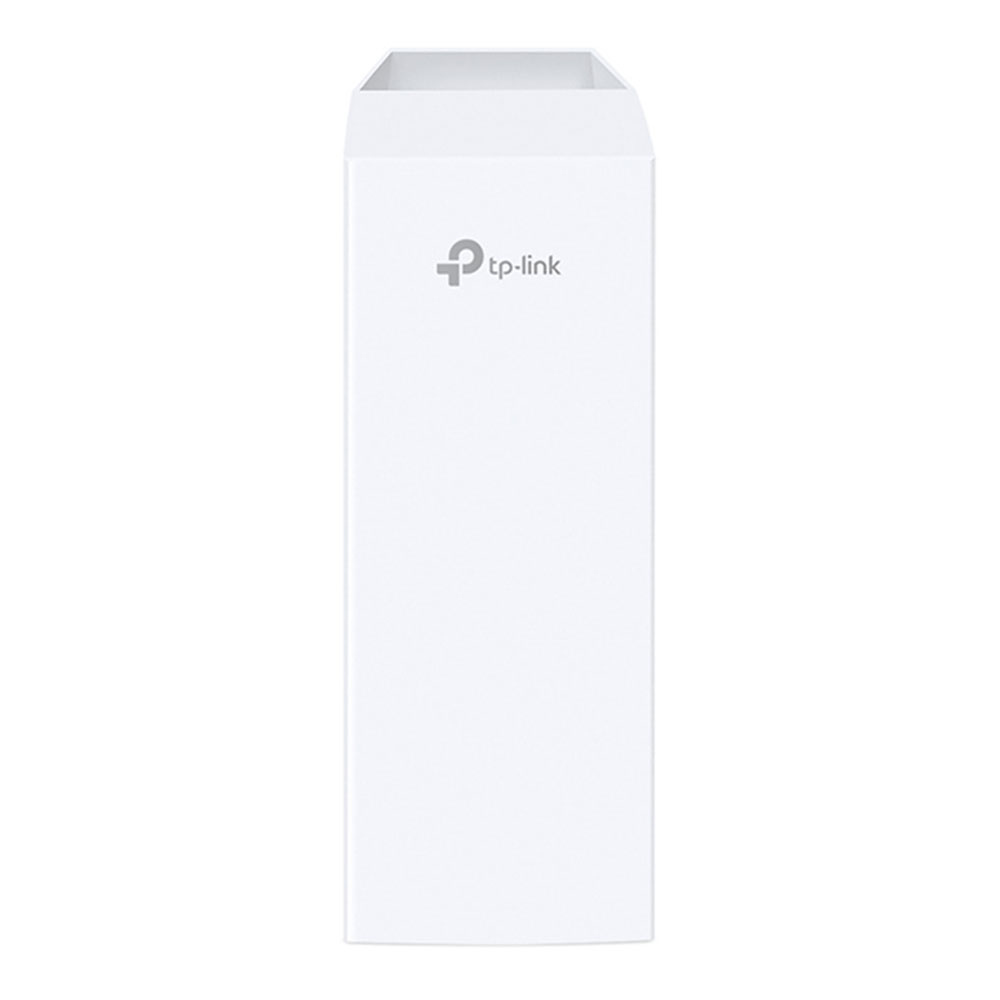

Access Point Outdoor TP-LINK (CPE220) Wireless N300 (2.4GHz) 12dBi
Access Point / N300
Price
฿2,266
SKU: A0101902
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardN300
Speed10/100
Build
AntennaBuilt-in 12dBi 2x2 Dual-polarized Directional Antenna Beam Width: 60° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet
Warranty3Y
Additional Specifications
CertificationsCE, FCC, RoHS, IPX5
Data RateUp to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Data RatesUp to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Dimension(W x D x H) : 14.00 x 33.00 x 10.00 cm
Dimensions11×3.1×2.1 inch (276×79×60 mm)
Frequency Range2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Gross Weight0.90 KG

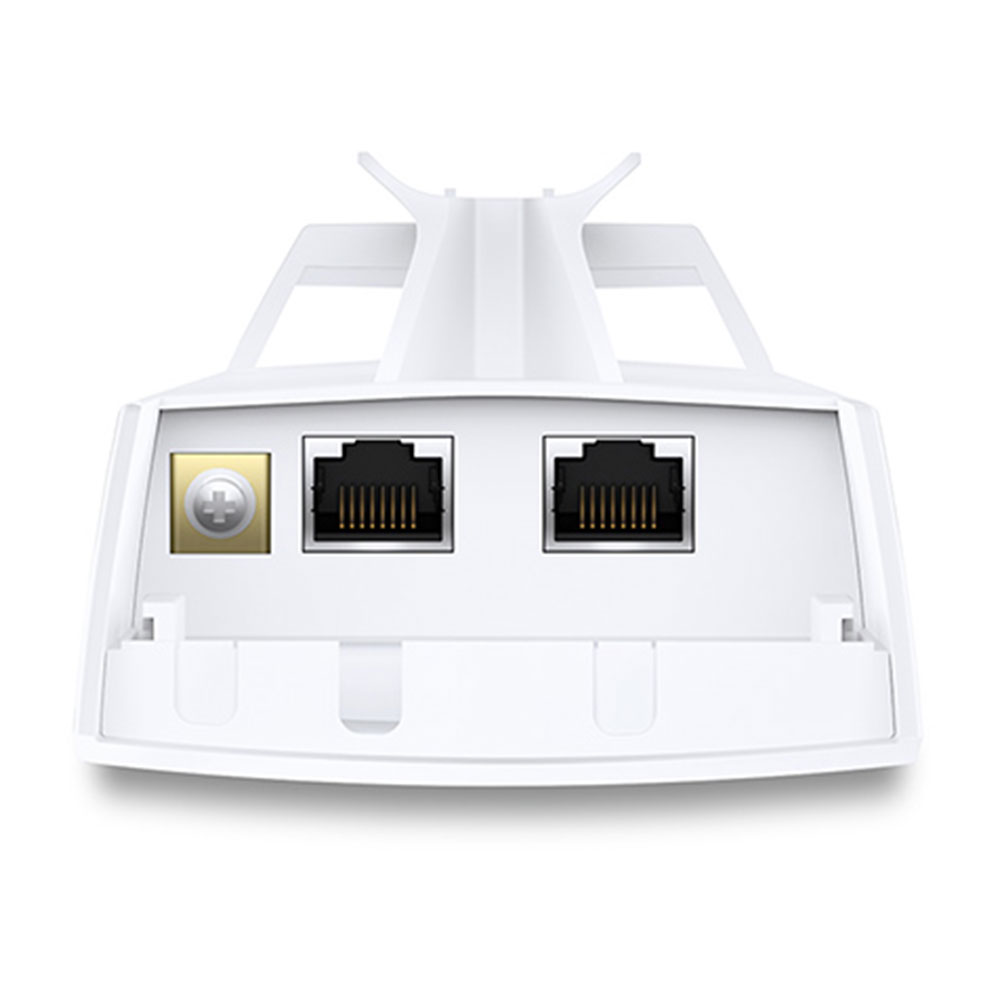

Interfacex1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) x1 10/100Mbps Shielded Ethernet Port (LAN1) x1 Grounding Terminal x1 Reset Button
Net Weight0.9 kg
Package ContentsOutdoor Wireless CPE 24V 0.6A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
Package Dimension(W x D x H) : 14.00 x 33.00 x 10.00 cm
Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range : 16-27VDC Power Consumption : 10.8 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Standards And ProtocolIEEE 802.11b/g/n (with Pharos MAXtream disabled) Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)
Standards And ProtocolsIEEE 802.11b/g/n (with Pharos MAXtream disabled) Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)
Volume4,620.00 cm3
Wireless Transmit Power30dBm/1000mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
Warranty:3Y
