tp-link

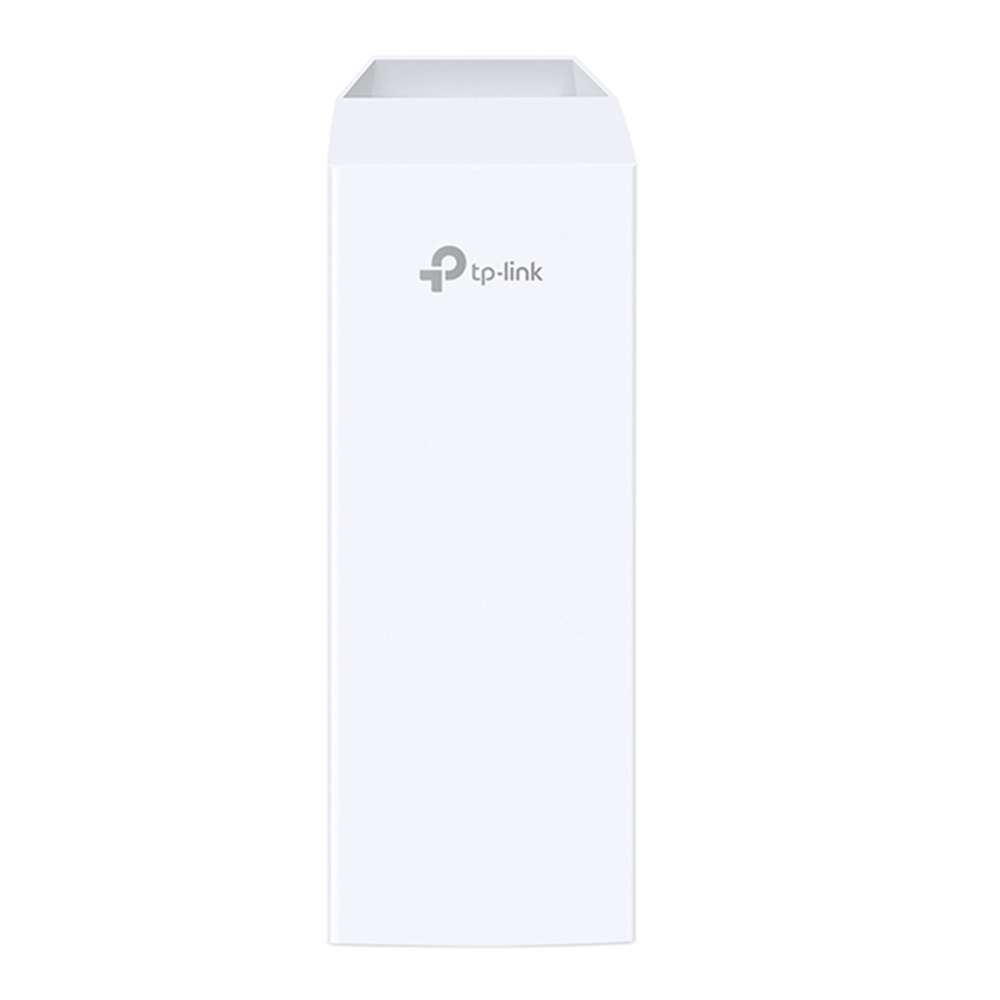

Access Point Outdoor TP-LINK (CPE210) Wireless N300 (2.4GHz) 9dBi
Access Point / N300
Price
฿1,535
SKU: A0091187
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardN300
Speed10/100
Build
Antenna9dBi
Warranty3Y
Additional Specifications
AntennasBuilt-in 9dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 40° (E-Plane) Note: For more details, please refer to datasheet
Button1 Reset Button
CertificationCE, FCC, RoHS, IPX5
CertificationsCE, FCC, RoHS, IPX5
Dimension(W x D x H) : 7.90 x 22.40 x 6.00 cm
EnvironmentOperating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
Frequency2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Gross Weight0.70 KG
Interface1 x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 x Grounding Terminal 1 x Reset Button
LedsGreen
Net Weight0 kg
Package ContentsOutdoor Wireless CPE 24V 0.25A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
Package Dimension(W x D x H) : 13.00 x 27.00 x 10.00 cm
Power Consumption5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Processor SpecsQualcomm Atheros 560MHz CPU, MIPS 74Kc
StandardsIEEE 802.11b/g/n (with Pharos MAXtream disabled)
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Transmit Receive25dBm/316mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
Volume3,510.00 cm3
Warranty:3Y
