syndome

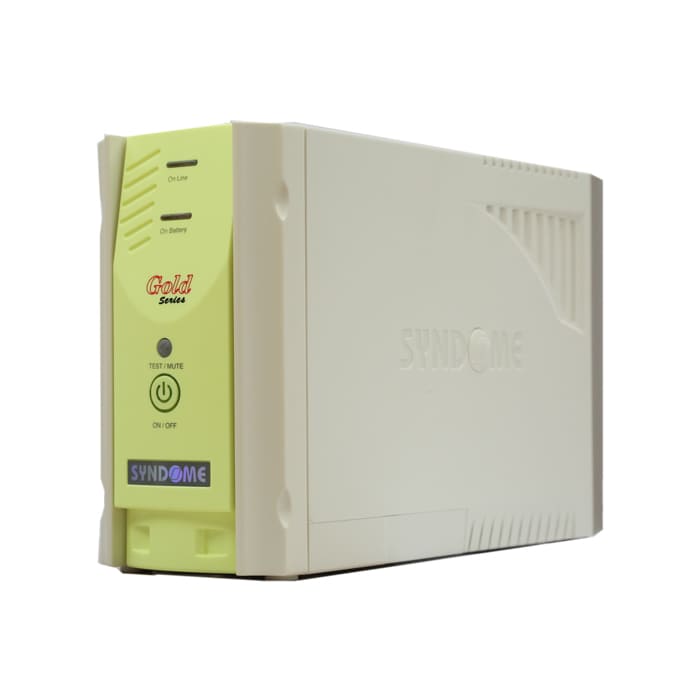

UPS 800VA SYNDOME GOLD 800I สเปค ICT ปี 2566 งบ 2,500 บาท
Line Interactibe / 800 VA
Price
฿2,421
SKU: A0136868
Technical Specifications
UPS Specifications
TypeLine Interactibe
Capacity (VA)800 VA
Capacity (Watt)480 W
Battery Typesealed lead acid maintenance free
Backup Time20 - 30 minutes (depends on load)
Input & Output
Output Socket3 x Back up 1 x No back up
Backup Ports3
Bypass Ports1
Input Voltage220V ±25%
Build
Dimension(W x D x H) : 9.80 x 29.50 x 18.30 cm
Warranty2*0*2
Additional Specifications
EnvironmentOperating Temperature : 0 - 40 °C Operating Humidity : 0 - 95 %
FeaturesTel. Line Protection Test Switch / Alarm Mute Automatic No load Shutdown
Gross Weight5.54 KG
Indicator Audible Alam ProtectionAC/On line mode Green LED, UPS Back up/On battery Red LED
Input Connections220VAC
Input Frequency50 Hz ±0.1%
Interface Port2 x TEL/LAN (IN/OUT)
Net Weight6.2 kg
Nominal Input Voltage220V ±25%
Nominal Output Voltage220V ±10%
Output Connections3 x Back up 1 x No back up
Package Dimension(W x D x H) : 14.00 x 35.00 x 23.00 cm
Rated Capacity800VA/480W
Transfer Timeless than 2 ms (Typical)
TypeLine Interactibe
Typical Recharge Time4-6 hours (90 % after fully discharged)
Volume11,270.00 cm3
Waveform TypeSimulated sine wave
Warranty:2*0*2
