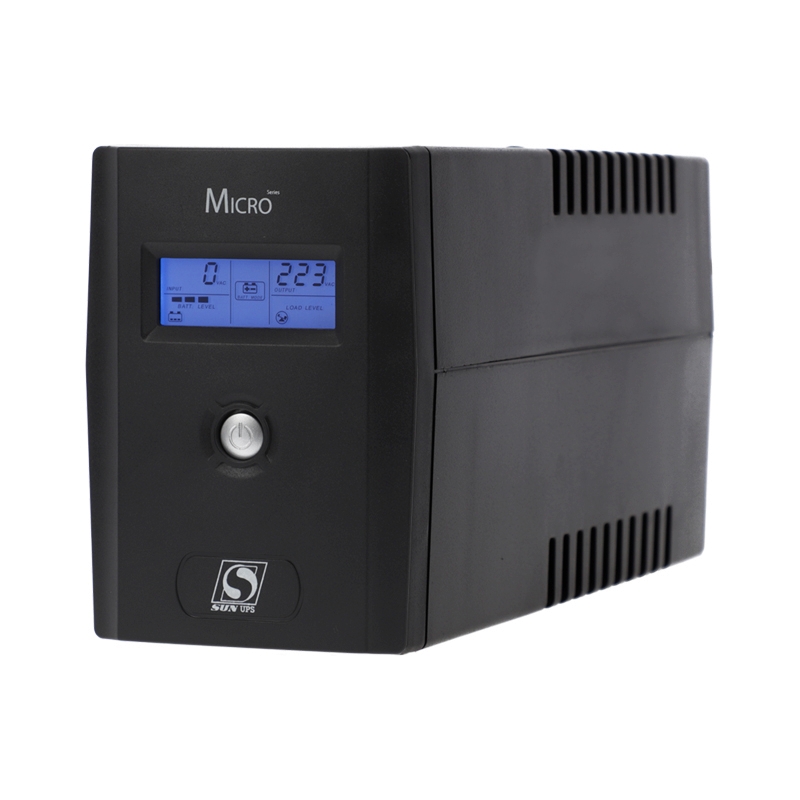

UPS 800VA SUN MICRO สเปค ICT ปี 2566 งบ 2,500 บาท
Line Interactive / 800 VA
Price
฿1,700
SKU: A0061532
Technical Specifications
UPS Specifications
TypeLine Interactive
Capacity (VA)800 VA
Capacity (Watt)480 W
Battery TypeMAINTANENCE FREE SEALED LEAD-ACID BATTERY
Backup Time15 - 30 Minute (Depend on Load)
Input & Output
Output Socket4 Port (3 Back up+1 Bypass) 1 Port RJ-11
Backup Ports3
Bypass Ports1
Input Voltage220 VAC ±35% 50Hz ±10%
Build
Dimension(W x D x H) : 14.00 x 35.00 x 22.00 cm
Warranty2Y
Additional Specifications
Battery Replacement1 x 12V / 7.0 AH
DisplayLCD : Input voltage, Output voltage, AC mode Battery mode, Battery level, Load level Overload, Fault, Low battery
Gross Weight4.71 KG
Indicator Audible Alam ProtectionBackup mode : Sounding every 10 second Low Battery : Sounding every second Overload : Sounding every 0.5 second
Interface PortUSB
Net Weight4.71 kg
Nominal Input Voltage220 VAC ±35% 50Hz ±10%
Nominal Output Voltage220 VAC ±10% 50Hz ±0.1%
Output Connections4 Port (3 Back up+1 Bypass) 1 Port RJ-11
Package Dimension(W x D x H) : 14.00 x 35.00 x 22.00 cm
Rated Capacity480 Watts / 800 VA
Transfer Time2-4 ms
TypeLine Interactive
Typical Recharge Time6 to 8 Hours ( 90 % After complete Discharged )
Volume10,780.00 cm3
Waveform TypeModified sine wave
Warranty:2Y
