QNAP

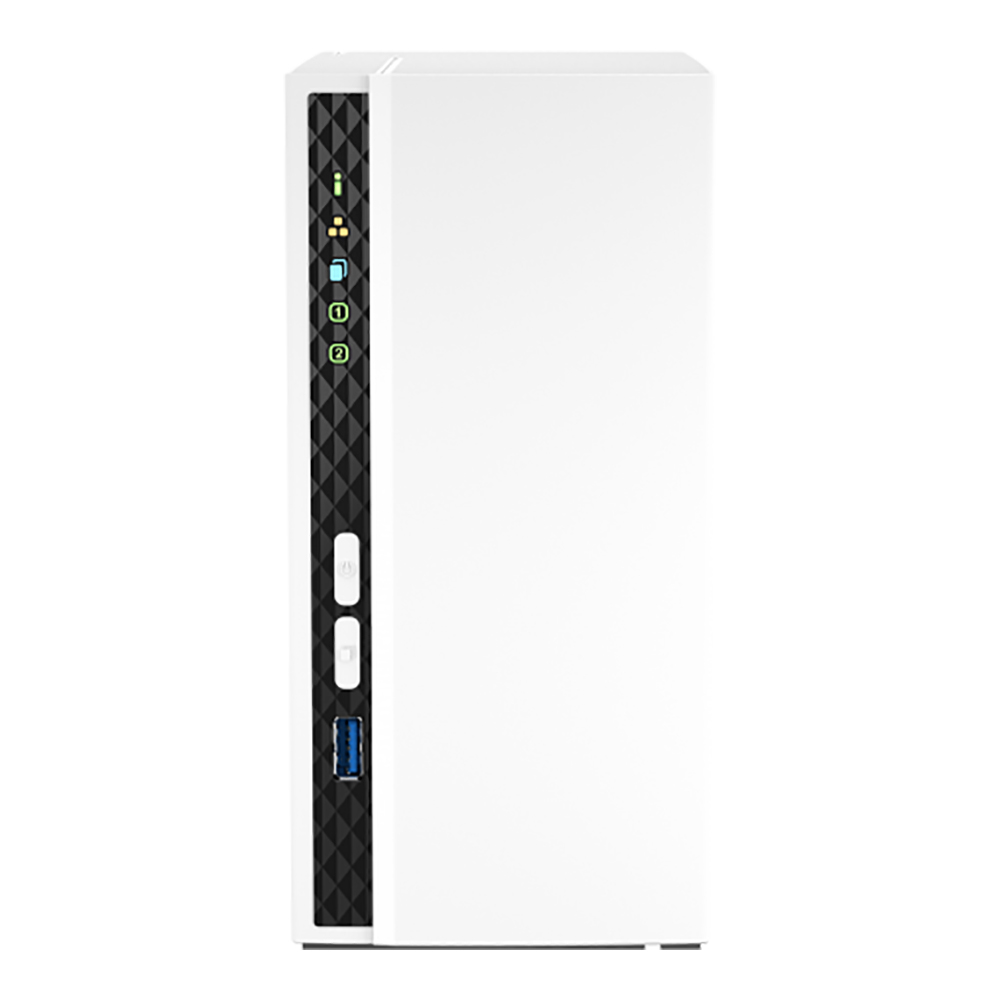

Set NAS QNAP (TS-233, With HDD. 4TB WD40EFZZ x2)
2-Bay / ARM 4-core Cortex-A55 2.0GHz / 2 GB
Price
฿22,557
SKU: A0183949
Technical Specifications
NAS Specifications
Drive Bays2
Drive TypeHDD
ProcessorARM 4-core Cortex-A55 2.0GHz
Memory2 GB
Network1GbE
Short Spec2-Bay HDD / ARM 4-core Cortex-A55 2.0GHz / 2 GB / 1GbE
Warranty2Y
Additional Specifications
Buttons• Power • Reset • USB Copy
Cooling Fans• 1 x 80mm, 12VDC
Cpu Model• ARM 4-core Cortex-A55 2.0GHz processor
Dimension(W x D x H) : 9.01 x 15.62 x 18.86 cm
Drive Interface• 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives
Environment• Operating temperature : 0 - 40°C (32°F - 104°F) • Storage Temperature : -20 - 70°C (-4°F - 158°F) • Relative Humidity : 5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Lan Interface• 1 RJ45 Gigabit Ethernet Port
Led Indicators• System Status, LAN, USB, HDD1~2
Management• Qsync, User customization, Central
Net Weight1.11 kg
Number Of Drives• 2
Os Support• Apple Mac OS 10.10 or later • Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux • IBM AIX 7, Solaris 10 or later UNIX • Microsoft Windows 7, 8, 10 and 11 • Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022, and 2025
Packaging Content• TS-233 • Ethernet Cable • AC Adapter • Power Cord • Flat head screw (for 3.5" HDD) x8 • Flat head screw (for 2.5" HDD) x6 • Quick Installation Guide (QIG)
Power Supply• 65W Adapter, 100-240VAC
Raid• JBOD, Single, RAID 0, 1
System Memory• 2 GB, not expandable Note : Reserves some RAM for use as shared graphics memory.
Usb Interface• 2 x USB 2.0 • 1 x USB 3.0
OS:• QTS 5.0.0
Warranty:2Y
