QNAP

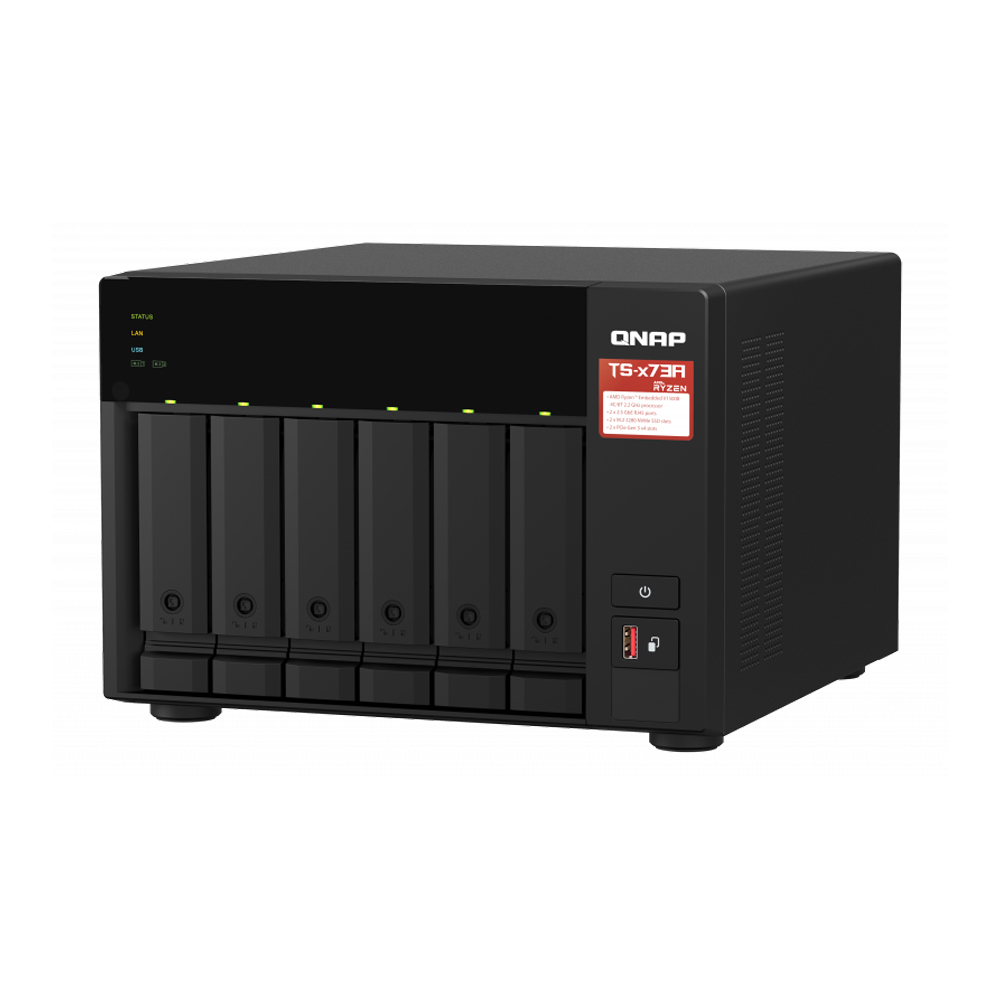

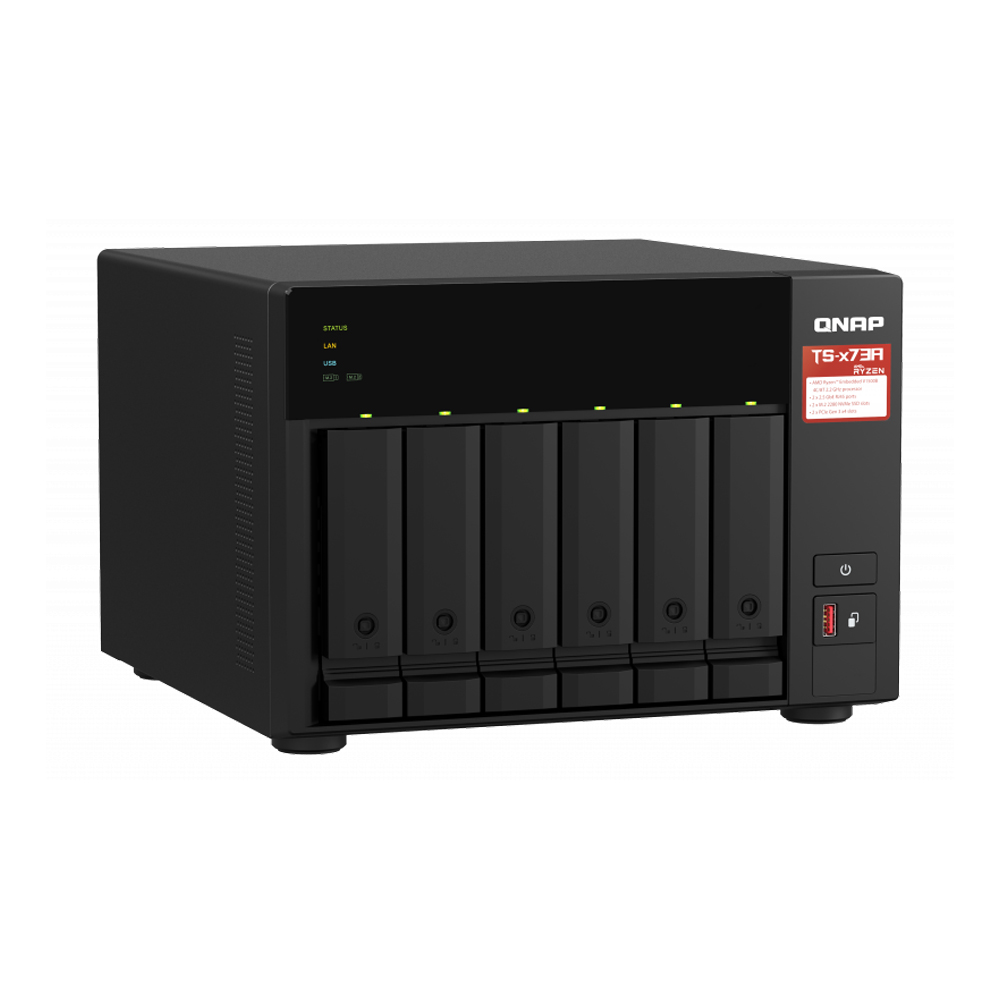

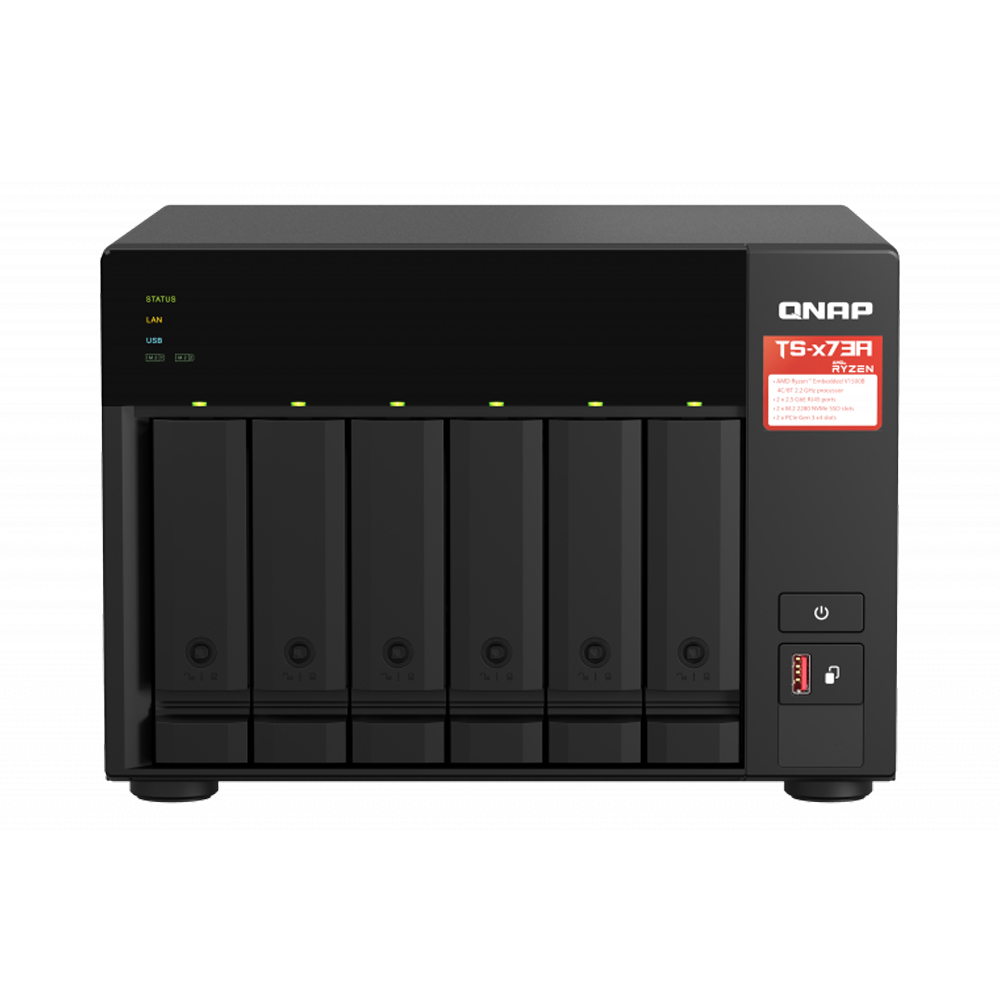

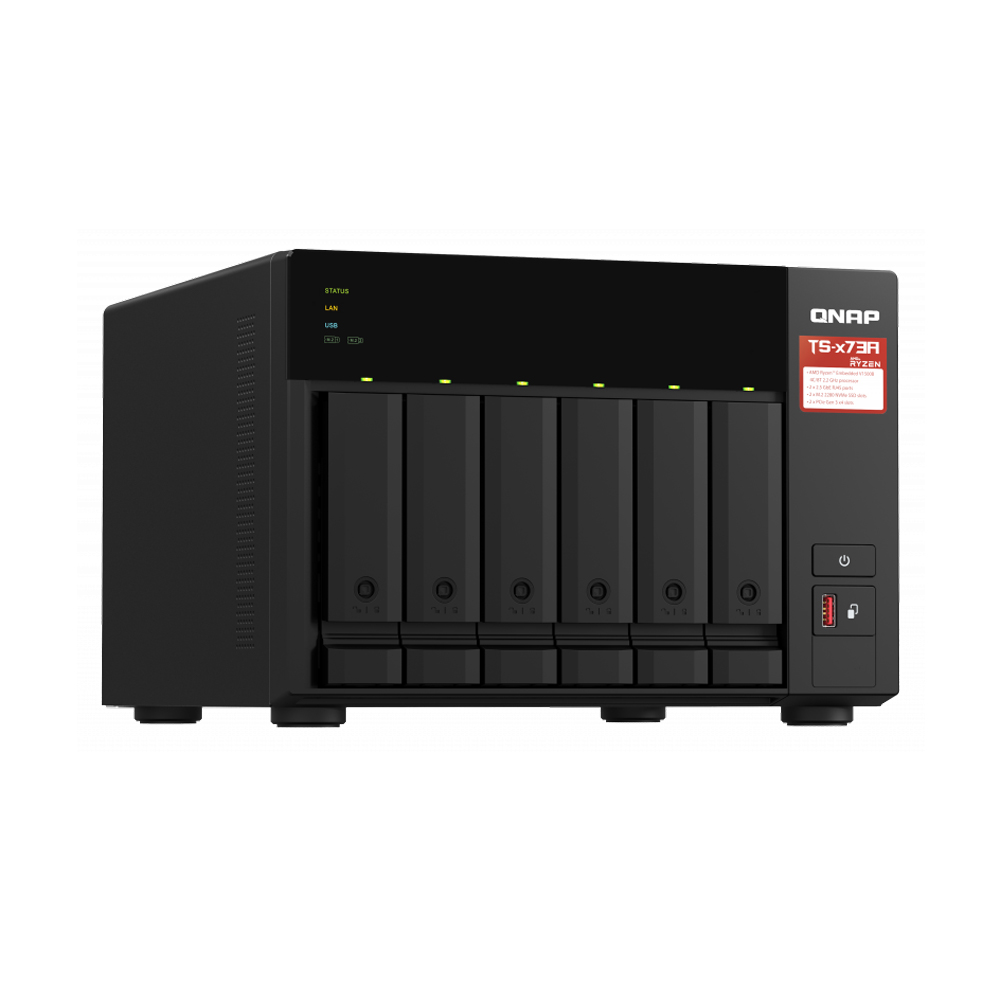

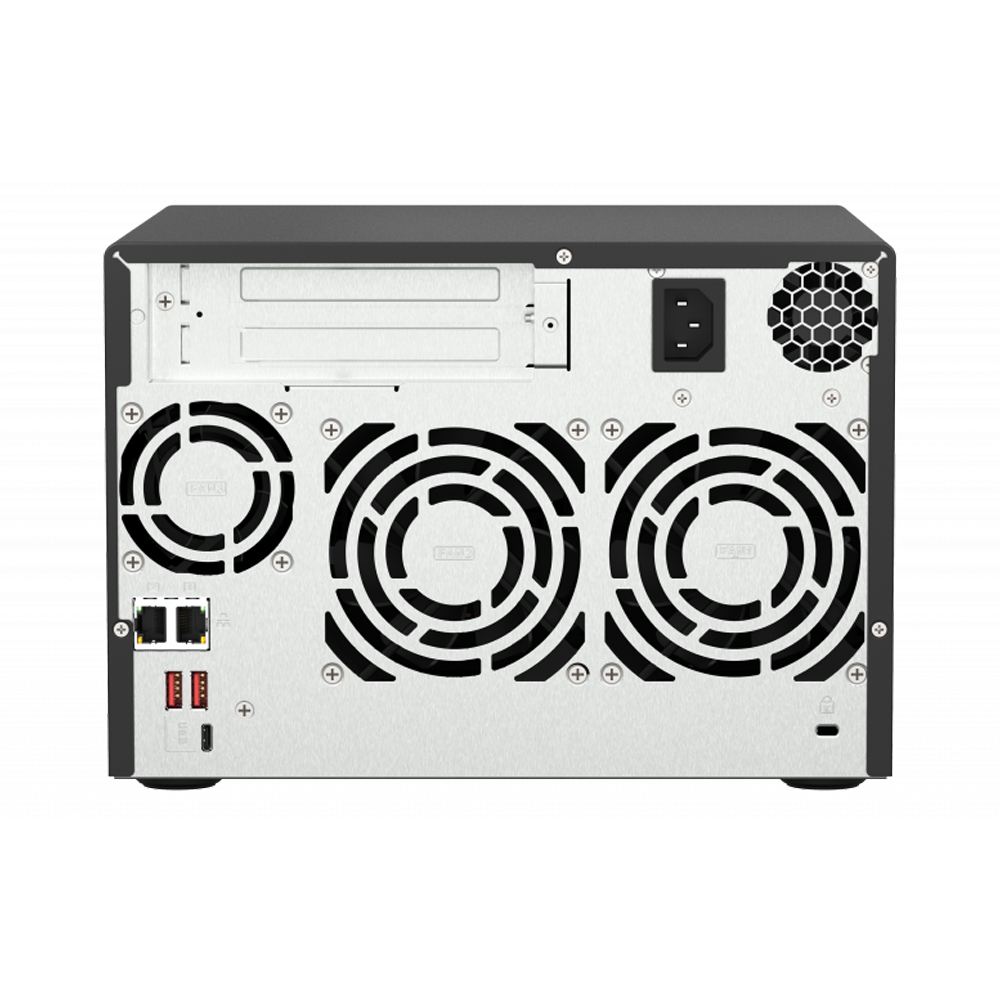

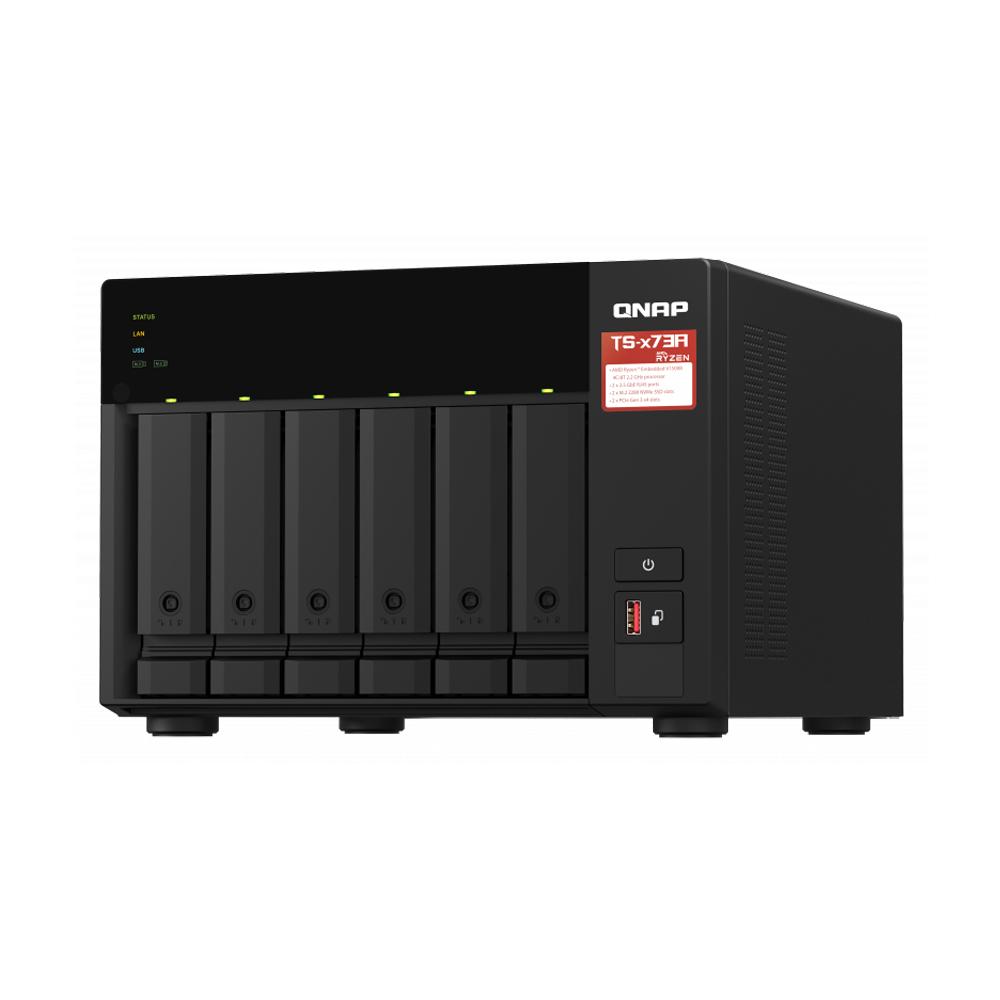

NAS QNAP (TS-673A-8G, Without HDD.)
6-Bay / AMD Ryzen Embedded V1500B 4-core / 8 GB
Price
฿37,028
SKU: A0147786
Technical Specifications
NAS Specifications
Drive Bays6
Drive TypeHDD
ProcessorAMD Ryzen Embedded V1500B 4-core
Memory8 GB
Network2.5GbE
Short Spec6-Bay HDD / AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor / 8 GB / 2.5GbE
Warranty3Y
Additional Specifications
ButtonsPower, Reset, USB Auto Copy
Cooling FansSystem fan: 2 x 92mm CPU fan: 1 x 60mm
Cpu ModelAMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
Dimension(W x D x H) : 26.43 x 28.08 x 18.82 cm
Drive InterfaceSATA 6Gb/s, 3Gb/s
EnvironmentOperating Temperature 0 - 40 °C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F) Relative Humidity 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Lan Interface2 x (2.5G/1G/100M)
Led IndicatorsStatus/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2
Memory Slot2 x SODIMM DDR4 Support ECC memory For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Net Weight5.78 kg
Number Of Drives6 Drive Bay
Packaging ContentTS-673A Ethernet cable x 1 Power Cord x 1 Flat head screw x 18 (for 3.5" HDD) Flat head screw x 18 (for 2.5" HDD) M.2 SSD Heatsink x 2 Drive tray keys x 2 Quick Installation Guide (QIG)
Power ConsumptionHDD Sleep Mode 21.891 W Operating Mode, Typical 45.898 W Tested with drives fully populated.
Power Supply250W, 100-240V AC, 50-60Hz, 3.5A
Raid8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity 6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity 4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity 3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity 2-bay: Single, RAID 0 (Stripe), 1
System Memory8 GB SODIMM DDR4 (1 x 8 GB)
Usb Interface3 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 1 5Gbps
OS:QuTS hero h5.0.0
Warranty:3Y
