QNAP

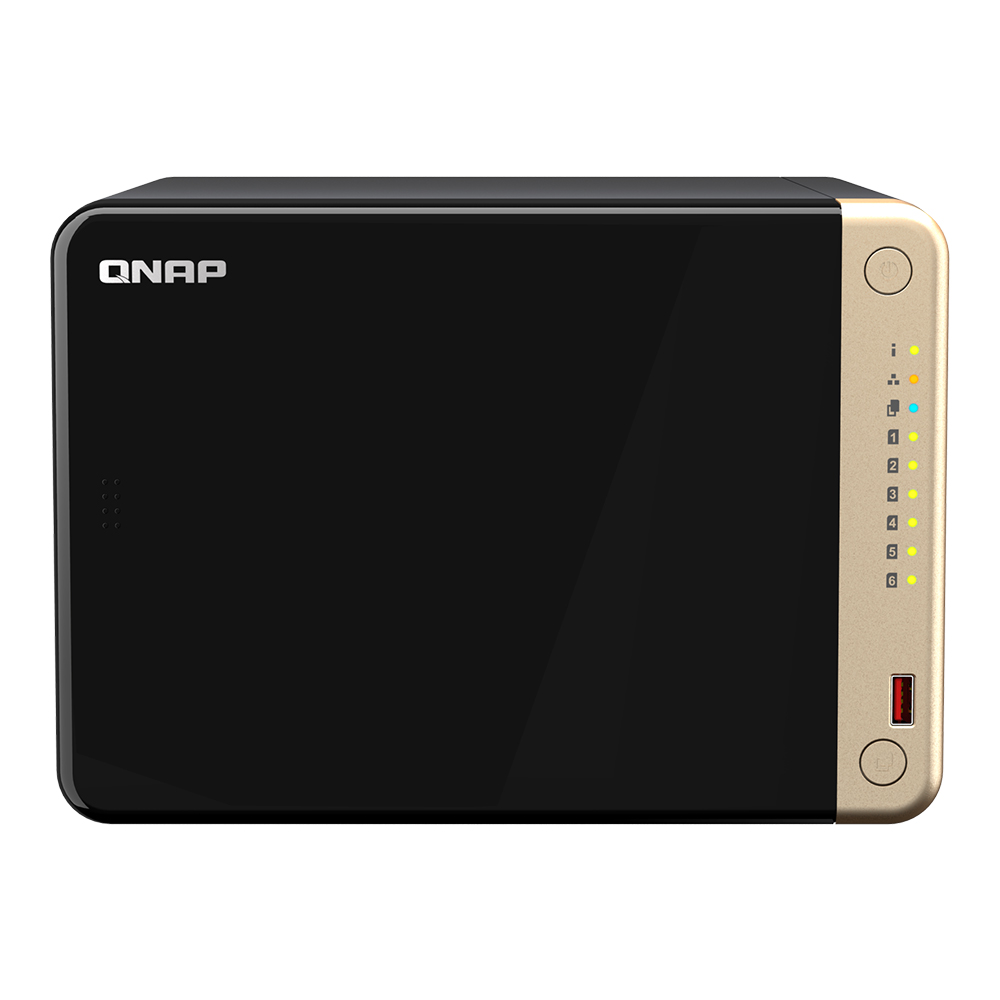

NAS QNAP (TS-664-8G, Without HDD.)
6-Bay / Celeron N5095 4-core 2.9 GHz / 8 GB
Price
฿31,827
SKU: A0160973
Technical Specifications
NAS Specifications
Drive Bays6
Drive TypeHDD
ProcessorCeleron N5095 4-core 2.9 GHz
Memory8 GB
Network2.5GbE
Short Spec6-Bay HDD / Celeron N5095 4-core 2.9 GHz / 8 GB / 2.5GbE
Warranty3Y
Additional Specifications
ButtonsPower, USB copy, Reset
Cooling Fans2x 90mm, 12VDC Smart Fan
Cpu ModelCPU : Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz CPU Architecture : 64-bit x86
Dimension(W x D x H) : 16.50 x 23.50 x 22.65 cm
Drive InterfaceDrive Bay : 6x 3.5-inch SATA 6Gb/s Drive Compatibility : 2.5 , 3.5-inch SATA hard disk drives M.2 Slot : 2x M.2 2280 PCIe Gen 3 x1
EnvironmentOperating Temperature : 0 - 40 °C (32°F - 104°F) Storage Temperature : -20 - 70°C (-4°F - 158°F) Relative Humidity : 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
File SharingFile sharing across Windows, Mac, and Linux/UNIX
File System- Microsoft networking (CIFS/SMB) - Apple networking (AFP) - NFS version 3/4 services
Lan Interface2x (2.5G/1G/100M/10M)
ManagementUser customization, Central
Net Weight2.94 kg
Number Of Drives6
Os SupportSupported Client Operating Systems - Apple Mac OS 10.10 or later - Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux - IBM AIX 7, Solaris 10 or later UNIX - Microsoft Windows 7, 8, 10 and 11 - Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022 Supported Browsers - Apple Safari (latest version) - Google Chrome (latest version) - Microsoft Edge (latest version) - Mozilla Firefox (latest version)
Packaging Content1x TS-664 1x Ethernet cable 1x Power cord 1x AC Adapter 18x Flat head screw (for 2.5" HDD) 18x Flat head screw (for 3.5" HDD)
Power ConsumptionPower Consumption: HDD Sleep Mode : 23.22 W Power Consumption: Operating Mode, Typical : 44.02 W
Power Supply120W adapter, 100-240V
Raid1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 4. 2-bay: JBOD, Single, RAID 0, 1
Security- Security Counselor
System Memory8 GB RAM ( Maximum Memory 8 GB ) Flash Memory : 4GB (Dual boot OS protection)
Usb Interface2x USB 2.0 port 2x USB 3.2 Gen 2 (10Gbps) Port
OS:QTS
Warranty:3Y
