QNAP

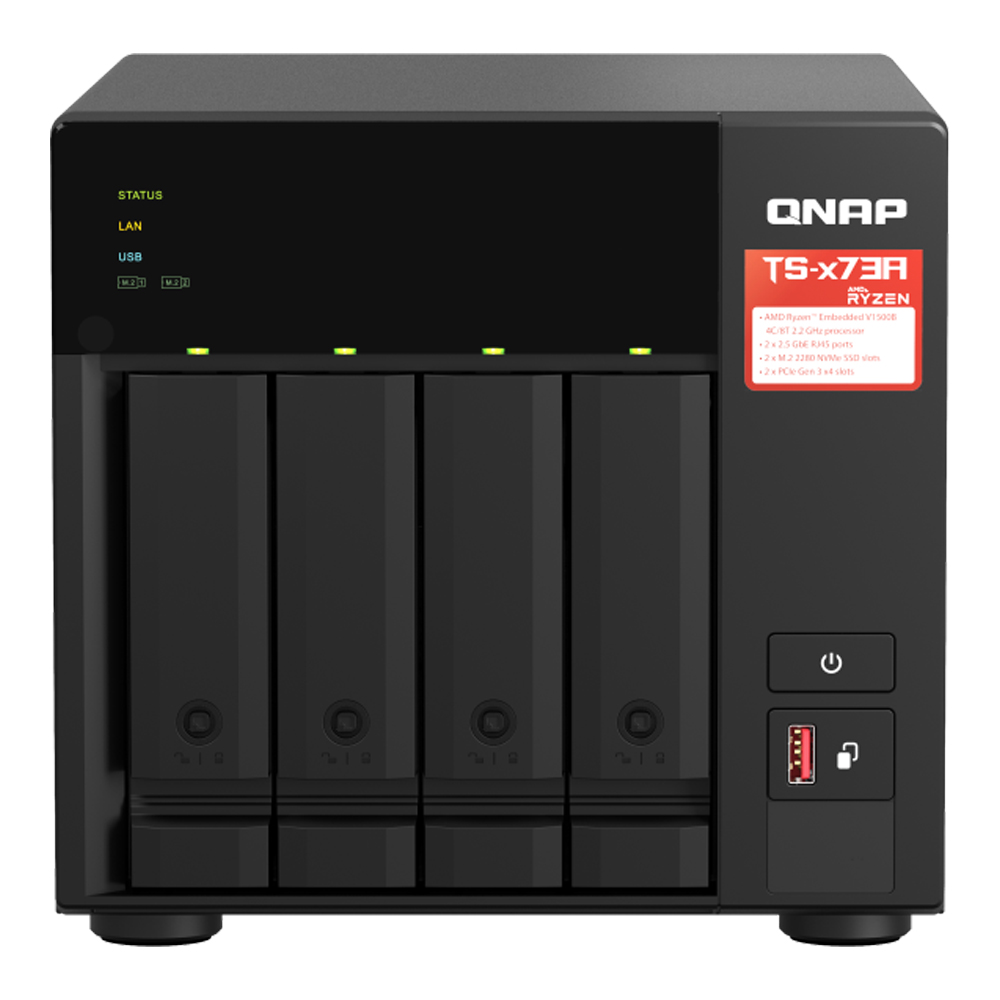

NAS QNAP (TS-473A-8G, Without HDD.)
4-Bay / Embedded V1500B 4-core / 8 GB
Price
฿29,767
SKU: A0145914
Technical Specifications
NAS Specifications
Drive Bays4
Drive TypeHDD
ProcessorEmbedded V1500B 4-core
Memory8 GB
Network2GbE
Short Spec4-Bay HDD / Embedded V1500B 4-core/8-thread 2.2 GHz / 8 GB / 2GbE
Warranty3Y
Additional Specifications
ButtonsPower, Reset, USB Auto Copy
Cooling FansSystem fan: 1 x 120mm CPU fan: 1 x 60mm
Cpu ModelAMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
Dimension(W x D x H) : 18.80 x 19.93 x 28.00 cm
Drive Interface3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
EnvironmentOperating Temperature 0 - 40 °C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F) Relative Humidity 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Gross Weight6.10 KG
Lan Interface2(2.5G/1G/100M)
Led IndicatorsStatus/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2
Memory Slot2
Net Weight5.03 kg
Number Of Drives4
Package Dimension(W x D x H) : 34.00 x 38.00 x 25.00 cm
Packaging ContentTS-473A Ethernet cable x 1 Power Cord x 1 Flat head screw x 12 (for 3.5" HDD) Flat head screw x 12 (for 2.5" HDD) M.2 SSD Heatsink x 2 Drive tray keys x 2 Quick Installation Guide (QIG)
Power ConsumptionPower Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A Power Consumption: HDD Sleep Mode19.576 W Power Consumption: Operating Mode, Typical29.792 W
Power Supply250W, 100-240V AC, 50-60Hz, 3.5A
Raid8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity 6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity 4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity 3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity 2-bay: Single, RAID 0 (Stripe), 1
System Memory8 GB SODIMM DDR4 (1 x 8 GB)
Usb Interface3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps 1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps
Volume32,300.00 cm3
OS:QuTS hero h5.0.0
Warranty:3Y
