QNAP

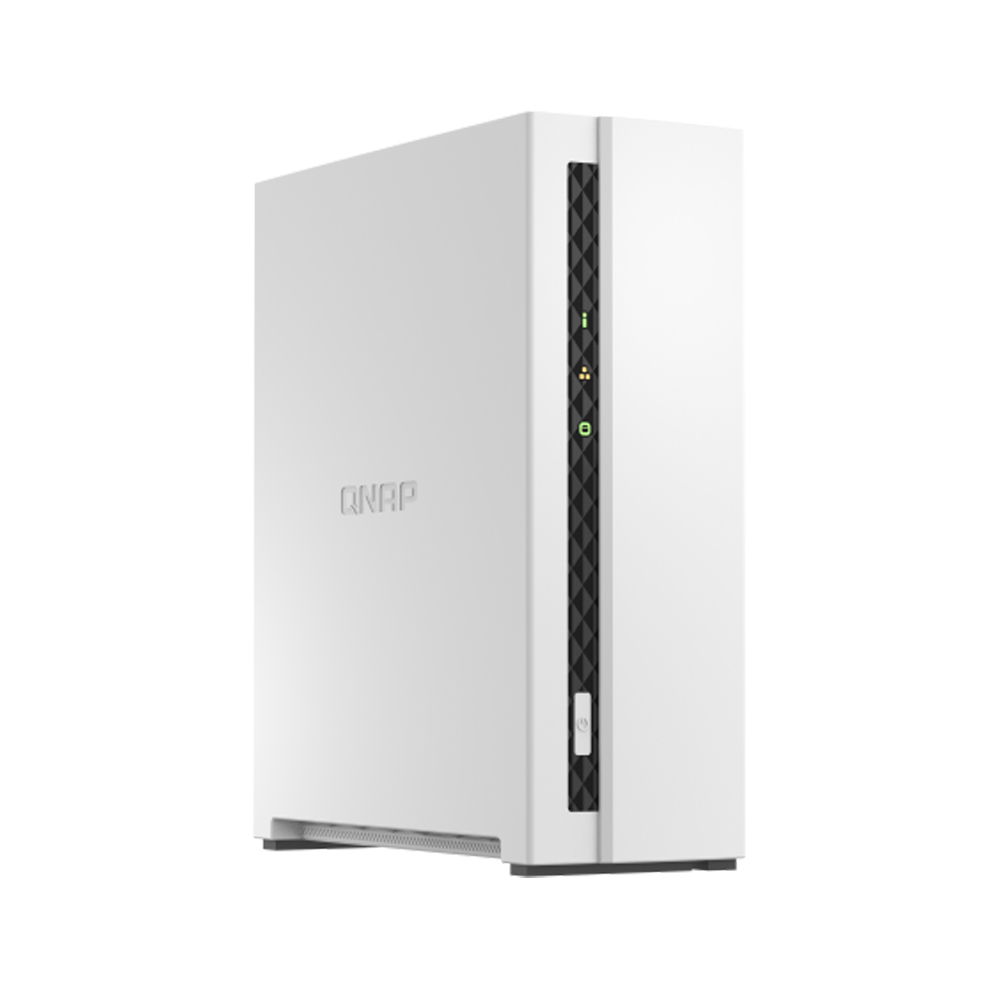

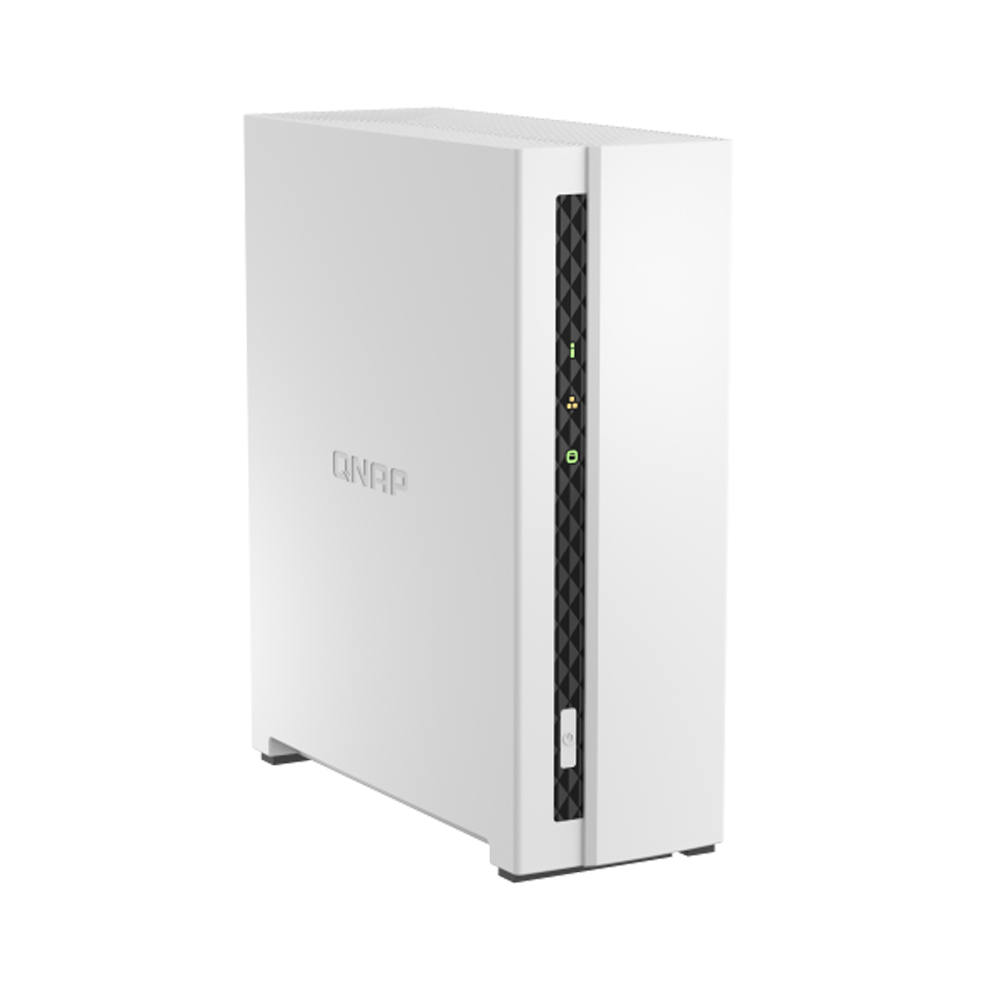

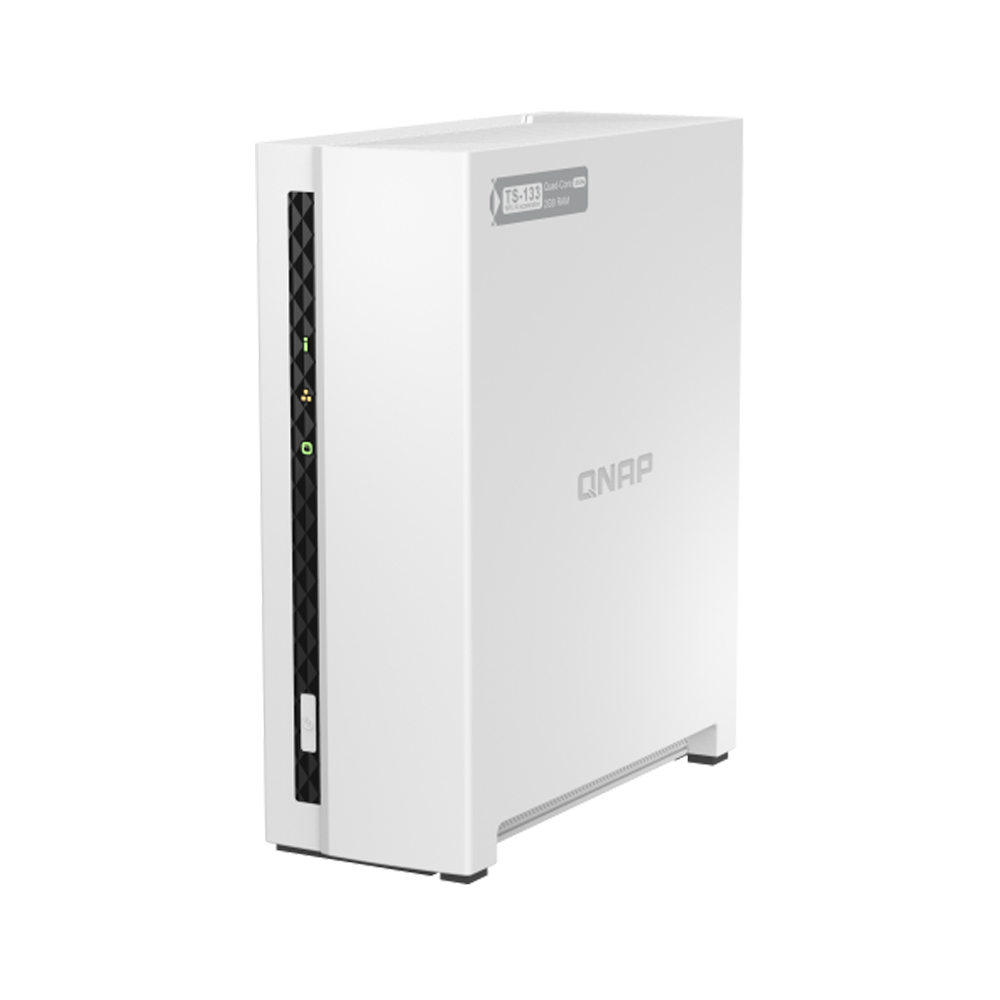

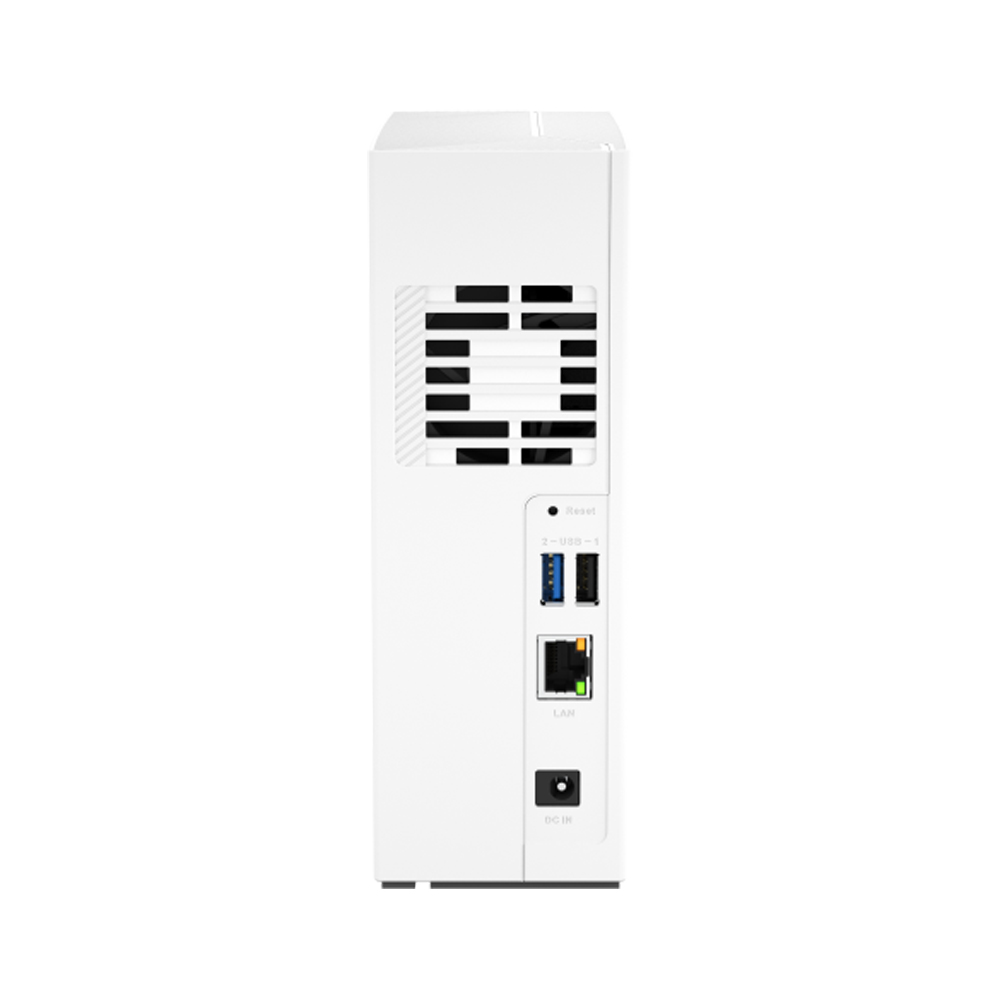

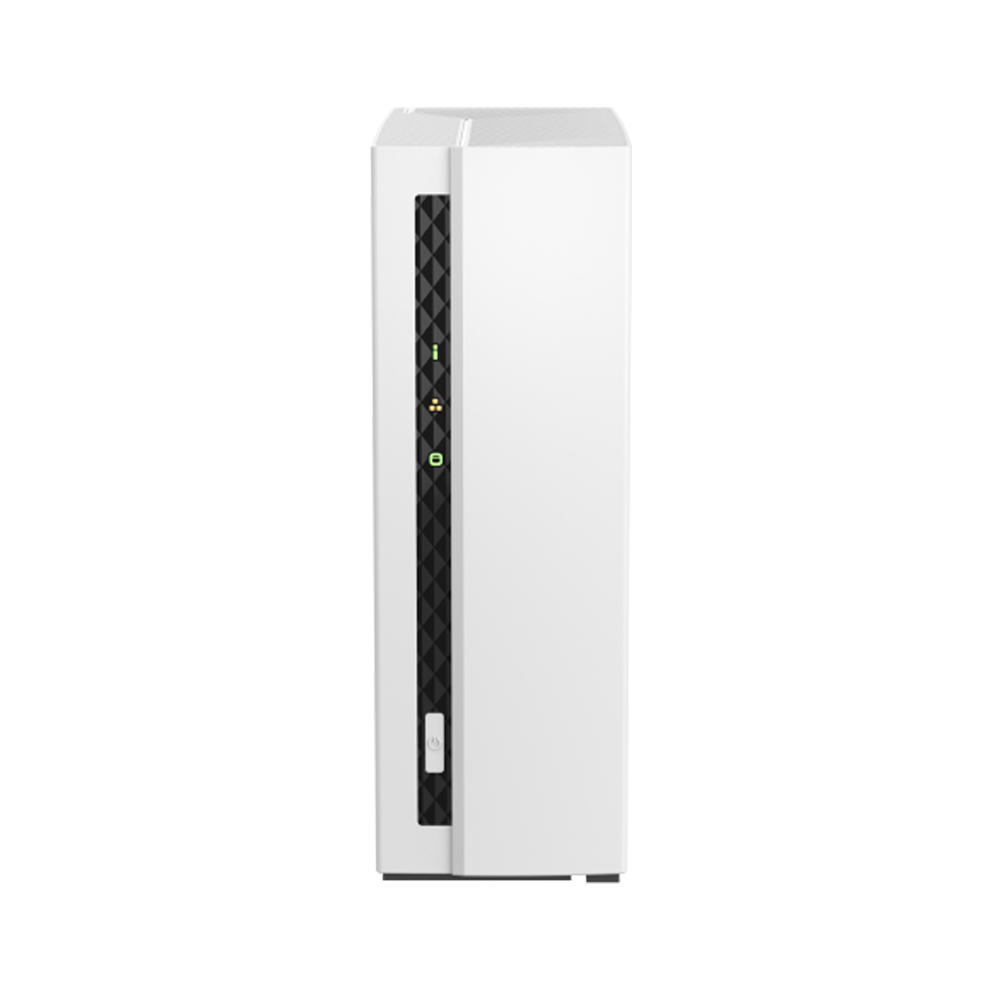

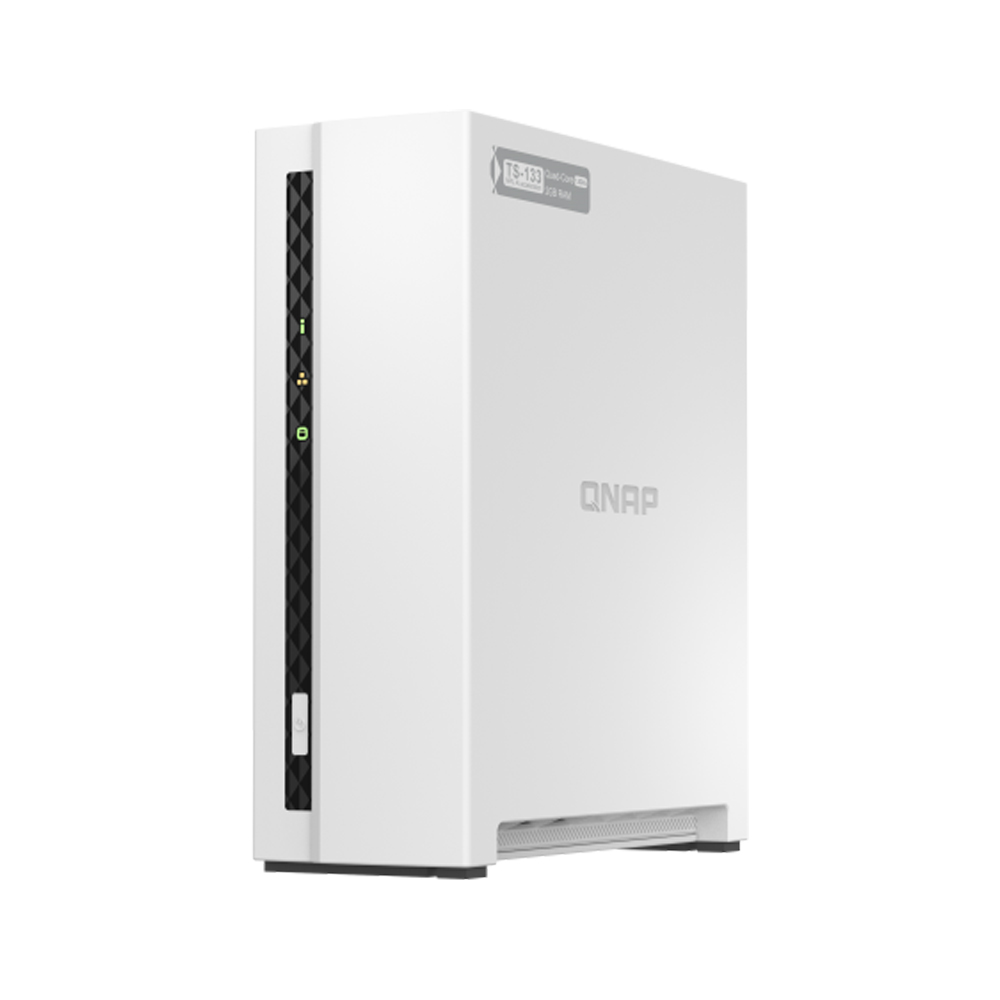

NAS QNAP (TS-133, Without HDD.)
1-Bay / ARM 4-core Cortex-A55 1.8GHz / 2 GB
Price
฿6,540
SKU: A0146269
Technical Specifications
NAS Specifications
Drive Bays1
Drive TypeHDD
ProcessorARM 4-core Cortex-A55 1.8GHz
Memory2 GB
Short Spec1-Bay HDD / ARM 4-core Cortex-A55 1.8GHz / 2 GB
Warranty2Y
Additional Specifications
ButtonsPower, Reset
Cooling Fans1 x 50mm, 12VDC
Cpu ModelARM 4-core Cortex-A55 1.8GHz processor
Dimension(W x D x H) : 27.50 x 22.00 x 7.50 cm
Drive Interface3.5-inch SATA 6Gb/s, 3Gb/s
File SystemInternal drive EXT4 External drive EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model) Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.
Gross Weight1.33 KG
Lan InterfaceGigabit Ethernet Port (RJ45)
Led IndicatorsSystem Status, LAN, HDD
Net Weight1.3 kg
Number Of Drives1
Package Dimension(W x D x H) : 22.00 x 27.00 x 7.50 cm
Packaging ContentTS-133 Ethernet Cable x 1 AC Adapter Power Cord Flat head screw (for 3.5" HDD) x6 Flat head screw (for 2.5" HDD) x2 Quick Installation Guide (QIG)
Power Consumption7.32 W Tested with drives fully populated.
Power Supply36W Adapter, 100-240V
Raid8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1
System Memory2 GB on board (non-expandable) Note: Reserves some RAM for use as shared graphics memory.
Usb InterfaceUSB 2.0 port x 1 USB 3.2 Gen 1 port x 1
Volume4,455.00 cm3
OS:QTS 5.0.0
Warranty:2Y
