QNAP

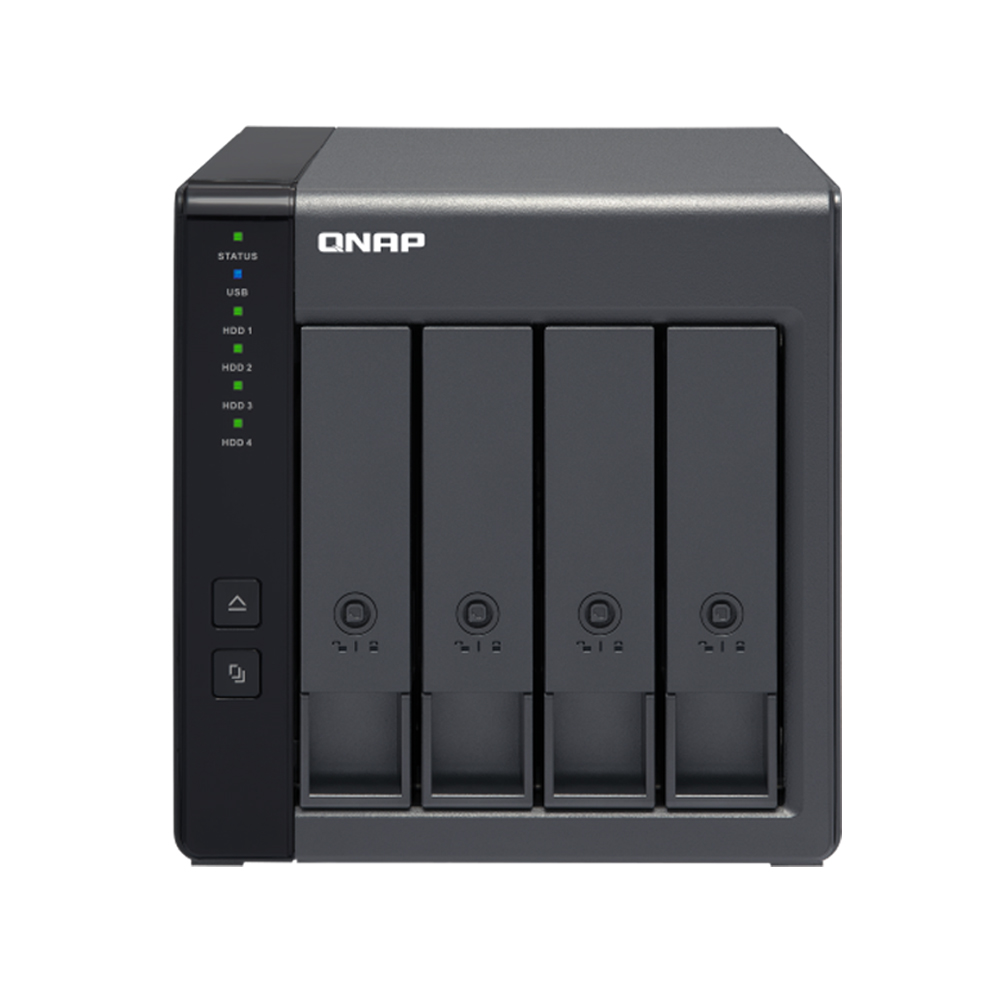

NAS QNAP (TR-004, Without HDD.)
4-Bay / Micro processor with hardware RAID
Price
฿9,476
SKU: A0147774
Technical Specifications
NAS Specifications
Drive Bays4
Drive TypeHDD
ProcessorMicro processor with hardware RAID
Short Spec4-Bay HDD / Micro processor with hardware RAID
Warranty2Y
Additional Specifications
Cooling Fans1 x 120mm, 12VDC
Cpu ModelMicro processor with hardware RAID
Dimension(W x D x H) : 24.50 x 30.50 x 31.50 cm
Drive InterfaceSATA 6Gb/s, 3Gb/s hard disk drives
EnvironmentOperating Temperature0 - 40 °C (32°F - 104°F) Storage Temperature-20 - 70°C (-4°F - 158°F) Relative Humidity5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Gross Weight3.06 KG
Led Indicatorsmonitoring with LED
Net Weight3 kg
Number Of Drives4 Drive Bay
Package Dimension(W x D x H) : 30.50 x 32.00 x 25.00 cm
Packaging ContentTR-004 external RAID enclosure AC power adapter x 1 Power Cord x 1 USB Type-C to Type-A connector cable x 1 Drive tray keys x 2 USB cable clip x 1 Screws for 2.5-inch drives x 12 Screws for 3.5-inch drives x 16 Quick Installation Guide (QIG)
Power ConsumptionHDD Sleep Mode 4.17 W Operating Mode, Typical 18.21 W *Tested with drives fully populated.
Power Supply65W adapter (12VDC), 100-240VAC
RaidRAID 0/1/5/10
Special FeaturesRAID rebuild in RAID 1/5/10. System, fan, and drive failure monitoring with LED and audio alerts. System sleep during USB cable disconnection and host device hibernation* or shut down. *Some hosts may not be supported. The unused disk drives automatically become the hot spare ones for the RAID 1 and RAID 5 types.
Usb Interface1 x Type-C USB 3.2 Gen 1 (USB 3.2 Gen 1)
Volume24,400.00 cm3
OS:QNAP NAS: QTS 4.3.6 and later Windows: Windows 8.1 and later Mac: macOS X 10.11 and later
Warranty:2Y
