mikrotik

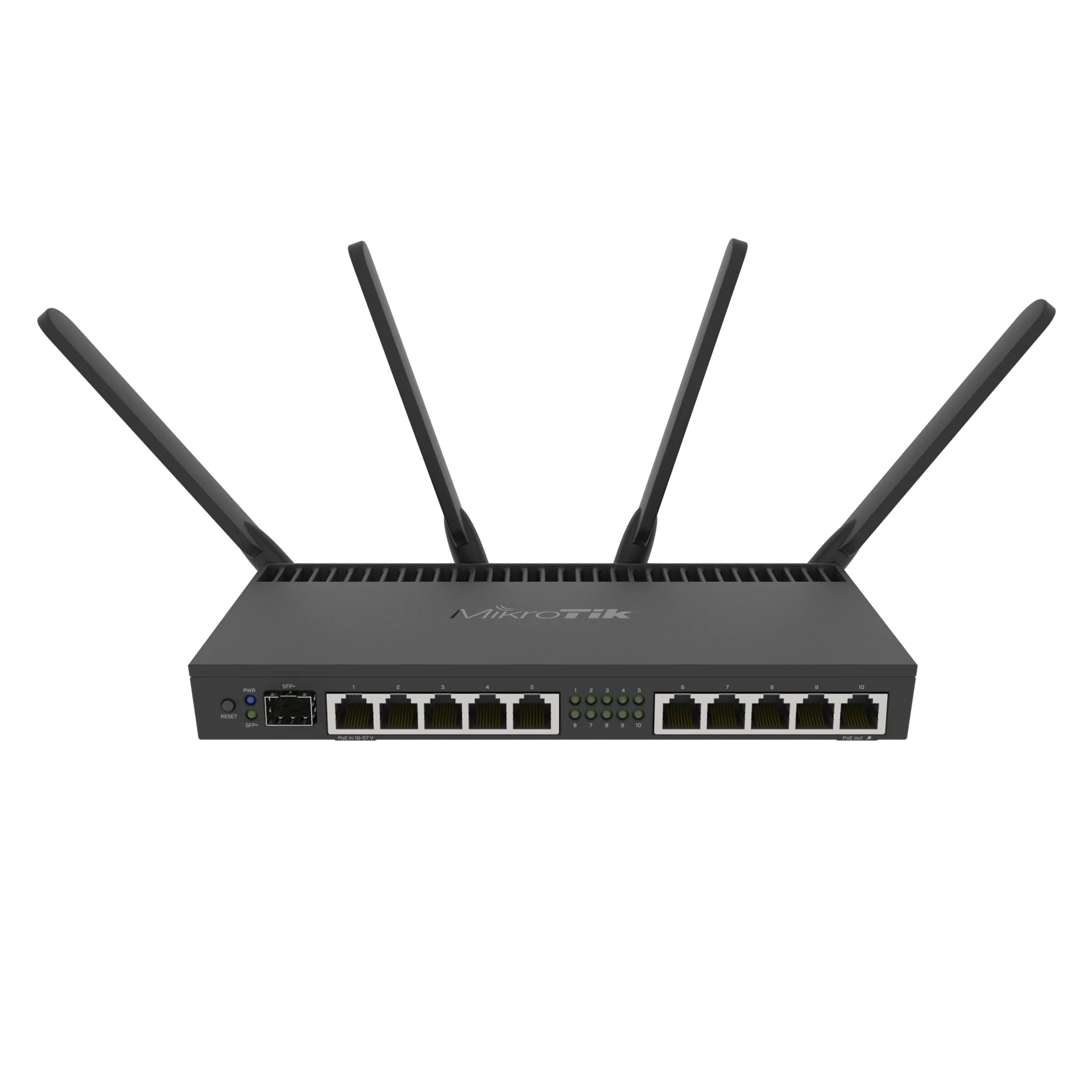

Router Board MIKROTIK (RB4011iGS+5HacQ2HnD-IN) Wireless AC1900 Dual Band Gigabit
Router / 802.11b/g/n/ac mu-mimo
Price
฿12,659
SKU: A0122922
Technical Specifications
Network Specifications
Device TypeRouter
Wi-Fi Standard802.11b/g/n/ac mu-mimo
SpeedAC speed : AC2000 / Wireless 5 GHz Max data rate : 1733 Mbit/s / Wire…
Build
Ports10 x 10/100/1000 Ethernet ports, 1 x SFP+ ports, 1 x MiniPCI-e slots
AntennaAntenna beam width 360° Antenna gain 3 dBi (2 antennas dual…
Warranty3Y
Additional Specifications
AntennasAntenna beam width 360° Antenna gain 3 dBi (2 antennas dual band, 2 antennas single 5 GHz band
Cpu Core Count4 Core
Data RateAC speed : AC2000 Wireless 5 GHz Max data rate : 1733 Mbit/s Wireless 2.4 GHz Max data rate : 300 Mbit/s
Dimension(W x D x H) : 27.00 x 27.00 x 7.00 cm
EnvironmentTested ambient temperature : -40°C to 45°C
FeaturesPCB temperature monitor Voltage Monitor
Frequency2.4 GHz / 5 GHz
Gross Weight1.36 KG
Interface10 x 10/100/1000 Ethernet ports 1 x SFP+ ports 1 x MiniPCI-e slots
Net Weight1.36 kg
Operation ModeRouterOS
Package Contents24V 2.5A power adapter IEC power cord
Package Dimension(W x D x H) : 27.00 x 27.00 x 7.00 cm
Power ConsumptionMax power consumption : 44 W Max power consumption without attachments : 23 W
Power SupplyNumber of DC inputs : 2 (DC jack, PoE-IN) DC jack input Voltage : 12-57 V Max out per port output (input > 30 V) : 420 mA Max out per port output (input < 30 V) : 600 mA Max total out (A) : 600 mA
Power Supply PoePoE in : Passive PoE PoE out : Passive, up to 57 V (port 10) PoE in : Passive, 18 - 57 V (port 1)
Processor SpecsArchitecture : ARM 32bit CPU : AL21400 Wireless 2.4 GHz chip model : R11e-2HnD Wireless 5 GHz chip model : QCA9984
Size Of RamSize of RAM : 1 GB Storage size : 512 MB Storage type : NAND
Standards802.11b/g/n/ac MU-MIMO
Volume5.00 cm3
Warranty:3Y
