mikrotik

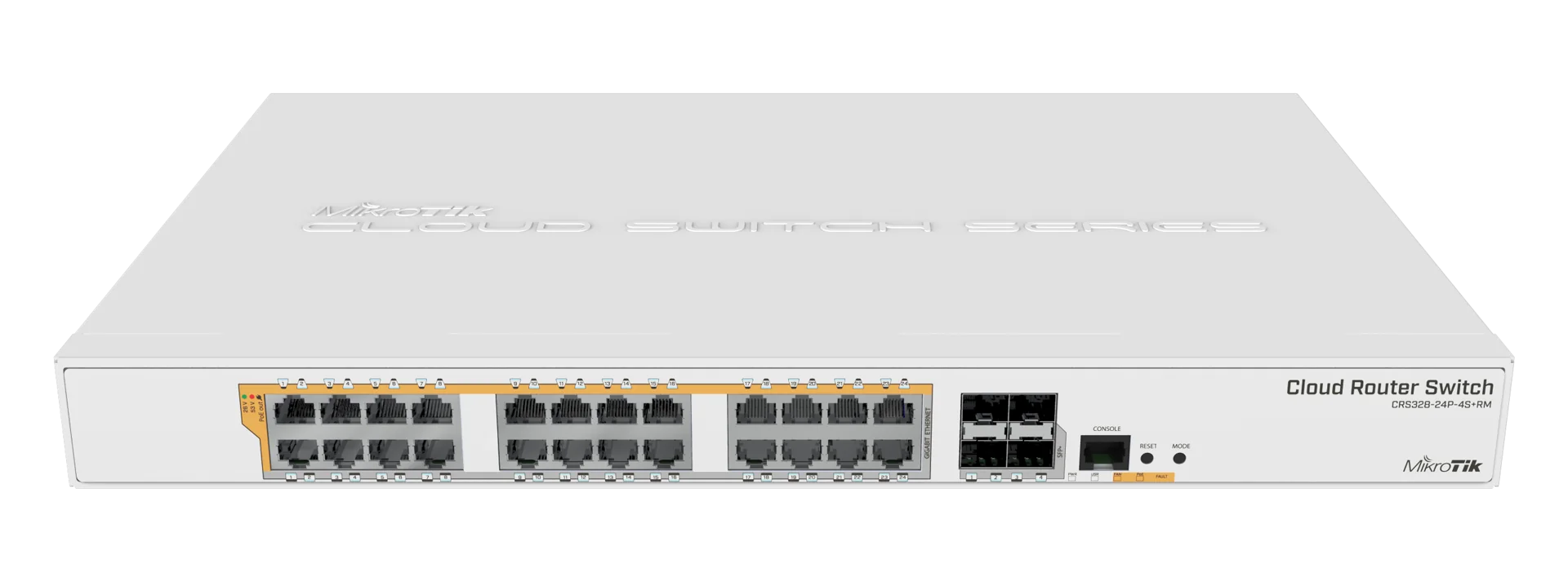

Router Board MIKROTIK (CRS328-24P-4S+RM)
Router / N/A
Price
฿24,195
SKU: A0122903
Technical Specifications
Network Specifications
Device TypeRouter
Wi-Fi StandardN/A
SpeedN/A
Build
Ports24 x 10/100/1000 Ethernet ports, 4 x SFP+ ports
AntennaNone (Internal)
Warranty3Y
Additional Specifications
CpuArchitecture : ARM 32bit CPU : 98DX3236 CPU core count : 1 CPU nominal frequency : 800 MHz
Cpu MemorySize of RAM 512 MB
Dimension(W x D x H) : 35.00 x 57.00 x 6.00 cm
EnvironmentTested ambient temperature : -20°C to 60°C
Features- CPU temperature monitor - PCB temperature monitor - Non-blocking Layer 2 switching capacity - 16K host table - IEEE 802.1Q VLAN - Supports up to 4K simultaneous VLANs - Port isolation - Port security - Broadcast storm control - Port mirroring of ingress/egress traffic - STP / RSTP / MSTP - Access Control List - MikroTik neighbor discovery - SNMP - 10218-byte jumbo frames support - IGMP snooping - IEEE 802.3ad and static link aggregation
Flash MemoryStorage size 16 MB Storage type FLASH
Gross Weight4.31 KG
Net Weight4.31 kg
Network Interface24 x 10/100/1000 Ethernet ports 4 x SFP+ ports
Package ContentsIEC cord Rackmount ears
Package Dimension(W x D x H) : 35.00 x 57.00 x 6.00 cm
PoePoE out : 802.3af/at
Power ConsumptionMax power consumption : 494 W Max power consumption without attachments : 44 W
Power SupplyNumber of AC inputs : 1 AC input range : 100-240 Max out per port output (input > 30 V) : 450 mA Max out per port output (input < 30 V) : 1000 mA Max total out (A) : 20 A
Volume11,970.00 cm3
Warranty:3Y
